• Blue Sea Systems 5046; Fuse Block ST Blade 8 Circuit W/ Cover

Blue Sea Systems 5046; Fuse Block ST Blade 8 Circuit W/ Cover

    • MPN: 5046
    • SKU : LNS-661-5046
    • List Price: $65.59
      Price: $63.41
      You Save: $2.18 (3%)
    • Cross Ship:58 At Manufacturer (Received by us in 1-2 days , then ships to you)
ESTIMATE SHIPPING: Add parts, then click "My Cart" at top of screen to see "Estimate Shipping Charges & Processing Times" tool.

Description:

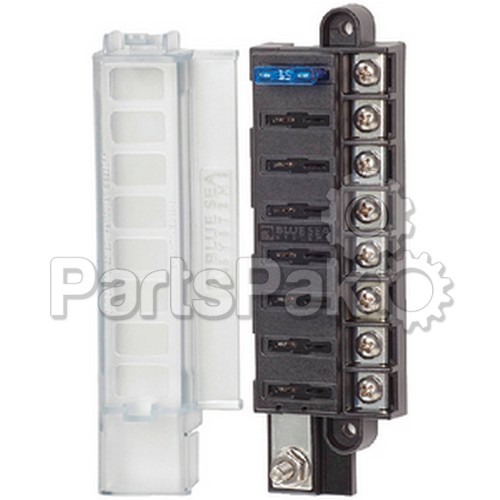

Fuse Block ST Blade 8 Circuit W/ Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Features:
  • Compact common source fuse block

  • Accepts ATO® and ATC® fast acting blade fuses

  • Single side entry wiring

  • Ignition Protected - for use in a gasoline engine compartment

  • Insulating cover meets ABYC/USCG insulation requirements

  • Tin-plated copper buses and fuse clips

  • Accepts ring or snap fork type terminals

  • Small format standard and custom labels available

  • Fuses sold separately

Specifications:
  • Voltage Max. Operating: 32V DC

  • Amperage Max. Operating: 30A per circuit

  • Amperage Max. Operating: 100A per block

  • Fuse Type: ATO® or ATC® Fuses

  • Screw Terminal: #8-32 Screws with captive star lock washer

  • Mounting: #8 Screw (M4)
Note: Please make sure repair parts fit your vehicle before purchasing. Check our parts diagrams, catalogs or contact us.
