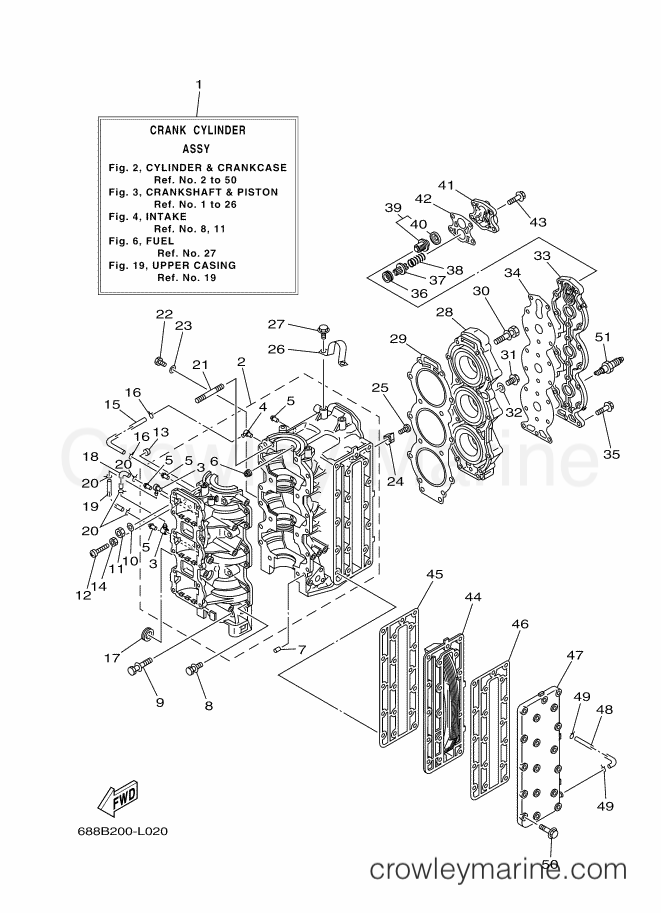

2012 International 85hp - 85AEDL (688C) [050] CYLINDER & CRANKCASE diagram
![Yamaha Motors 85AEDL (688C) [050] - CYLINDER & CRANKCASE](https://cdn.crowleymarine.com/yamaha/pE3CTBCy.png)
-15%
1
Yamaha Motors
Crank Cylinder Assembly692-W0090-46-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 692-W0090-45-1S
$3145.30
You save $555.05
-15%
1
Yamaha Motors
Crank Cylinder Assembly688-W0090-45-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 688-W0090-44-1S
$3145.30
You save $555.05
-15%
$1854.69
You save $327.30
-20%
3
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
. CHECK VALVE ASSY
In stock
Only 4 remaining
$13.19
You save $3.30
-20%
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
. CHECK VALVE ASSY
In stock
5+ in stock
$13.99
You save $3.50
-15%
5
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 4
. PIPE, JOINT
$7.22
You save $1.27
-15%
6
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 3
. LOCK, BEARING
$9.77
You save $1.72
-50%
In stock
Only 1 remaining
$3.50
You save $3.50
-15%
8
Yamaha Motors
Bolt with Washer90119-06M12-00
Required: 12
BOLT, WITH WASHER
$4.12
You save $0.73
-20%
9
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-10005-00
$4.39
You save $1.10
-15%
10
Yamaha Motors
Plate Washer90201-10008-00
Required: 2
WASHER, PLATE
$4.25
You save $0.75
-15%
11
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT
Supersedes: 95313-10600-00
$2.17
You save $0.38
-15%
12
Yamaha Motors
Pan Head Screw90157-06M12-00
Required: 1
SCREW, PAN HEAD
Supersedes: 90157-06014-00
No longer availableSearch Nationwide Inventory
$5.35
You save $0.95
-15%
$13.59
You save $2.40
-20%
14
Yamaha Motors
Nut95380-06700-00
Required: 1
NUT
Supersedes: 95303-06700-00
In stock
Only 1 remaining
$7.59
You save $1.90
-20%
15
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L276)
Supersedes: 90445-07260-00
In stock
5+ in stock
$6.39
You save $1.60
-20%
In stock
Only 1 remaining
$2.64
You save $0.66
-15%
$7.64
You save $1.35
-15%
18
Yamaha Motors
Hose (L167)90445-07M02-00
Required: 1
HOSE (L100)
Supersedes: 90445-07M00-00
No longer availableSearch Nationwide Inventory
$6.29
You save $1.11
-20%
19
Yamaha Motors
Hose (L570)90445-07MF1-00
Required: 1
HOSE (L408)
Supersedes: 90445-07M23-00
In stock
5+ in stock
$6.79
You save $1.70
-20%
In stock
Only 1 remaining
$2.64
You save $0.66
-15%
$5.09
You save $0.90
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-20%
23
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
In stock
5+ in stock
$5.56
You save $1.39
-20%
25
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
26
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
$13.17
You save $2.32
-15%
27
Yamaha Motors
Bolt with Washer90119-08MA3-00
Required: 2
BOLT, WITH WASHER
$4.12
You save $0.73
-20%
28
Yamaha Motors
Obsolete Yamaha Part688-11111-02-1S
Required: 1
HEAD, CYLINDER 1
$223.95
You save $56.04
-15%
28
Yamaha Motors
Obsolete Yamaha Part692-11111-01-1S
Required: 1
HEAD, CYLINDER 1
$217.59
You save $38.40
-20%
29
Yamaha Motors
Cylinder Head Gasket688-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
In stock
5+ in stock
$48.79
You save $12.20
-20%
30
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 14
BOLT, WITH WASHER
In stock
5+ in stock
$4.00
You save $1.00
-20%
31
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.59
You save $2.90
-20%
In stock
Only 2 remaining
$2.48
You save $0.62
-20%
33
Yamaha Motors
Cylinder Head Cover688-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
In stock
5+ in stock
$35.99
You save $9.00
-20%
34
Yamaha Motors
Head Cover Gasket688-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
In stock
5+ in stock
$17.59
You save $4.40
-20%
35
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 18
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-20%
$3.60
You save $0.90
-20%
37
Yamaha Motors
Pressure Control Valve688-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
5+ in stock
$11.59
You save $2.90
-20%
38
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$6.39
You save $1.60
-20%
39
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 688-12411-11-00
In stock
5+ in stock
$31.96
You save $7.99
-20%
40
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
. SEAL, THERMOSTAT
In stock
5+ in stock
$4.79
You save $1.20
-20%
41
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 1
COVER, THERMOSTAT
In stock
5+ in stock
$12.39
You save $3.10
-20%
In stock
5+ in stock
$4.79
You save $1.20
-20%
43
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.92
You save $0.73
-20%
44
Yamaha Motors
Exhaust Inner Cover688-41111-00-1S
Required: 1
INNER COVER, EXHAUST
In stock
Only 3 remaining
$36.79
You save $9.20
-20%
45
Yamaha Motors
Exhaust Inner Cover Gasket688-41112-A0-00
Required: 1
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$7.59
You save $1.90
-20%
46
Yamaha Motors
Exhaust Outer Cover Gasket688-41114-A0-00
Required: 1
GASKET, EXHAUST OUTER COVER
In stock
5+ in stock
$10.79
You save $2.70
-15%
47
Yamaha Motors
Obsolete Yamaha Part688-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$47.59
You save $8.40
-20%
48
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 2
Supersedes: 663-24312-01-00
In stock
5+ in stock
$5.99
You save $1.50
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-20%
50
Yamaha Motors
Bolt with Washer90119-08020-00
Required: 18
BOLT, WITH WASHER
In stock
5+ in stock
$3.88
You save $0.97
-20%
51
Yamaha Motors
BR8HS NGK SCREW TOPBR8-HS000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: 94702-00160-00
In stock
5+ in stock
$4.00
You save $1.00
-20%
51
Yamaha Motors
BR8HS NGK SCREW TOPBR8-HS000-00-00
Required: 3
PLUG, SPARK (NGK BR8HS-10)
Supersedes: 94702-00247-00
In stock
5+ in stock
$4.00
You save $1.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
