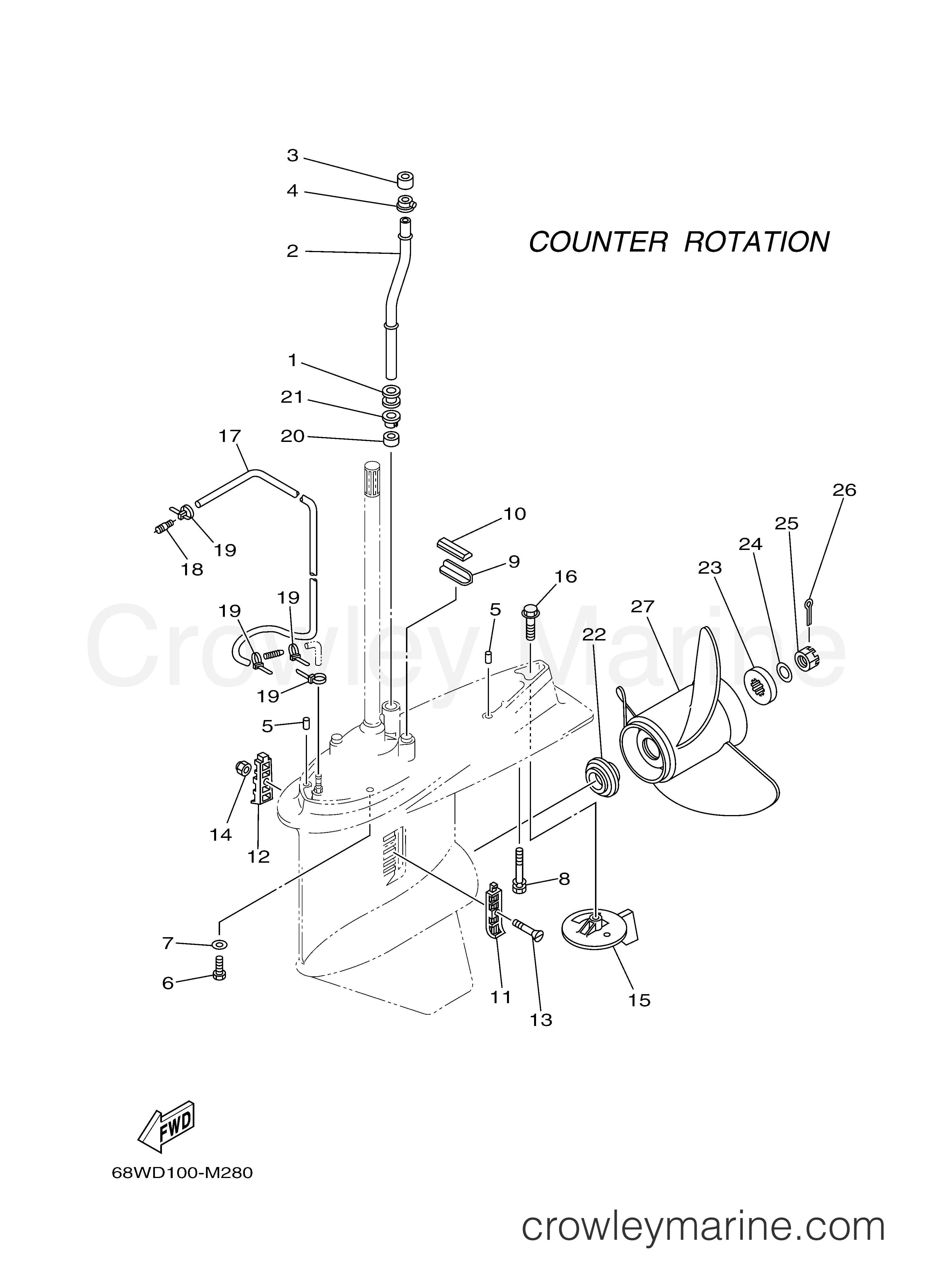

2013 Outboard 115hp - LF115XA LOWER CASING DRIVE 4 diagram
-20%
1
Yamaha Motors
Water Seal Damper6E5-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 6E5-44366-00-00
In stock
5+ in stock
$1.16
You save $0.29
-50%
2
Yamaha Motors
Water Tube68V-44361-30-00
Required: 1
TUBE, WATER 1
In stock
Only 2 remaining
$24.50
You save $24.50
-20%
3
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.64
You save $0.41
-20%
4
Yamaha Motors
Water Pump Housing Cover6E5-44312-00-00
Required: 1
COVER, WATER PUMP HOUSING
In stock
5+ in stock
$2.88
You save $0.72
-20%
In stock
5+ in stock
$8.79
You save $2.20
-20%
$22.39
You save $5.60
-20%
7
Yamaha Motors
Plate Washer92990-10600-00
Required: 6
WASHER
Supersedes: 92995-10600-00
In stock
Only 3 remaining
$2.48
You save $0.62
-20%
8
Yamaha Motors
Bolt with Washer90119-10071-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-10M89-00
In stock
5+ in stock
$4.39
You save $1.10
-20%
9
Yamaha Motors
Seal Damper Guide663-45376-00-00
Required: 1
GUIDE, SEAL DAMPER
In stock
5+ in stock
$12.39
You save $3.10
-20%
In stock
Only 2 remaining
$11.59
You save $2.90
-20%
11
Yamaha Motors
Water Inlet Cover688-45214-02-00
Required: 1
COVER, WATER INLET 1
In stock
5+ in stock
$12.39
You save $3.10
-20%
12
Yamaha Motors
Water Inlet Cover 2688-45215-02-00
Required: 1
COVER, WATER INLET 2
In stock
5+ in stock
$12.39
You save $3.10
-20%
13
Yamaha Motors
Countersunk Screw90152-05M07-00
Required: 1
SCREW, COUNTERSUNK
$3.88
You save $0.97
-20%
14
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.84
You save $0.46
-15%
$34.81
You save $6.14
-20%
In stock
Only 5 remaining
$4.39
You save $1.10
-15%
17
Yamaha Motors
Hose90445-070G6-00
Required: 1
HOSE (L1550)
Supersedes: 90445-076K2-00
$38.24
You save $6.75
-20%
In stock
5+ in stock
$9.59
You save $2.40
-20%
19
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-20%
20
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.64
You save $0.41
-20%
21
Yamaha Motors
Water Pump Housing Cover6E5-44312-00-00
Required: 1
COVER, WATER PUMP HOUSING
In stock
5+ in stock
$2.88
You save $0.72
-20%
22
Yamaha Motors
Spacer 16E5-45987-01-00
Required: 1
SPACER 1
Supersedes: 63P-45987-00-00
$46.39
You save $11.60
-20%
In stock
5+ in stock
$38.80
You save $9.70
-20%
In stock
Only 2 remaining
$2.12
You save $0.53
-20%
In stock
5+ in stock
$16.79
You save $4.20
-20%
In stock
Only 1 remaining
$3.68
You save $0.92
-15%
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x21LH Stainless Steel6L6-45972-00-00
Required: 1
PROPELLER (3X13"X21"-KL)
No longer availableSearch Nationwide Inventory
$672.35
You save $118.65
-15%
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x19LH Stainless Steel6L6-45970-00-00
Required: 1
PROPELLER (3X13"X19"-KL)
$672.35
You save $118.65
-15%
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x17LH Stainless Steel6L6-45930-01-00
Required: 1
PROPELLER (3X13"X17"-KL)
$672.35
You save $118.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
