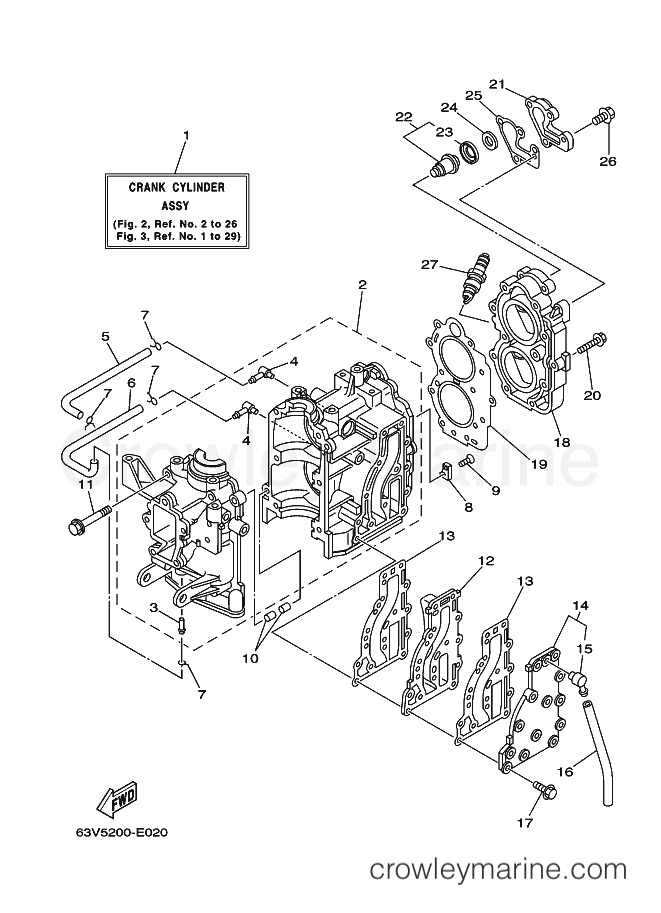

2012 International 15hp - 15SMH-2012 (63WB) [390] CYLINDER & CRANKCASE diagram
![Yamaha Motors 15SMH-2012 (63WB) [390] - CYLINDER & CRANKCASE](https://cdn.crowleymarine.com/yamaha/7jfG7BkJ.png)
-15%
1
Yamaha Motors
Crank Cylinder Assembly63V-W0090-04-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 63V-W0090-03-1S
$892.75
You save $157.55
-15%
2
Yamaha Motors
Crankcase Assembly63V-15100-03-00
Required: 1
CRANKCASE ASSY
Supersedes: 63V-15100-02-00
No longer availableSearch Nationwide Inventory
$521.04
You save $91.95
-15%
3
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 1
. PIPE, JOINT
$7.22
You save $1.27
-20%
4
Yamaha Motors
Joint Pipe650-14485-03-00
Required: 2
. PIPE, JOINT
$6.39
You save $1.60
-20%
5
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L220)
Supersedes: 90445-07M08-00
In stock
5+ in stock
$6.39
You save $1.60
-20%
6
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L220)
Supersedes: 90445-07M08-00
In stock
5+ in stock
$6.39
You save $1.60
-20%
In stock
Only 1 remaining
$2.64
You save $0.66
-20%
In stock
Only 4 remaining
$4.76
You save $1.19
-20%
9
Yamaha Motors
Flat Head Screw98780-05016-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98780-05015-00
In stock
Only 3 remaining
$2.64
You save $0.66
-20%
In stock
5+ in stock
$3.68
You save $0.92
-20%
11
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 6
BOLT, WITH WASHER
In stock
5+ in stock
$4.39
You save $1.10
-20%
12
Yamaha Motors
Exhaust Inner Cover63V-41111-00-1S
Required: 1
INNER COVER, EXHAUST
$20.79
You save $5.20
-20%
13
Yamaha Motors
Exhaust Inner Cover Gasket63V-41112-A0-00
Required: 2
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$5.59
You save $1.40
-15%
14
Yamaha Motors
Exhaust Outer Cover63V-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$30.59
You save $5.40
-20%
15
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
. NIPPLE, HOSE
In stock
5+ in stock
$12.79
You save $3.20
-20%
16
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L300)
Supersedes: 90445-09104-00
In stock
5+ in stock
$9.99
You save $2.50
-20%
17
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 13
BOLT, WITH WASHER
In stock
5+ in stock
$3.60
You save $0.90
-15%
18
Yamaha Motors
Cylinder Head6E7-11111-01-1S
Required: 1
HEAD, CYLINDER 1
In stock
Only 2 remaining
$109.95
You save $19.04
-20%
19
Yamaha Motors
Cylinder Head Gasket63V-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
In stock
5+ in stock
$28.79
You save $7.20
-15%
$2.25
You save $0.40
-20%
21
Yamaha Motors
Thermostat Cover682-12413-00-1S
Required: 1
COVER, THERMOSTAT
$11.19
You save $2.80
-20%
In stock
5+ in stock
$31.96
You save $7.99
-20%
23
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
. SEAL, THERMOSTAT
In stock
5+ in stock
$4.79
You save $1.20
-20%
24
Yamaha Motors
Plate Washer90201-16M03-00
Required: 1
WASHER, PLATE
$4.39
You save $1.10
-20%
In stock
5+ in stock
$4.79
You save $1.20
-20%
26
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-20%
27
Yamaha Motors
BR7HS NGK SPLUG 10BR7-HS000-00-00
Required: 2
PLUG, SPARK (NGK BR7HS-10)
Supersedes: 94702-00271-00
In stock
5+ in stock
$2.79
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
