All diagrams for this model

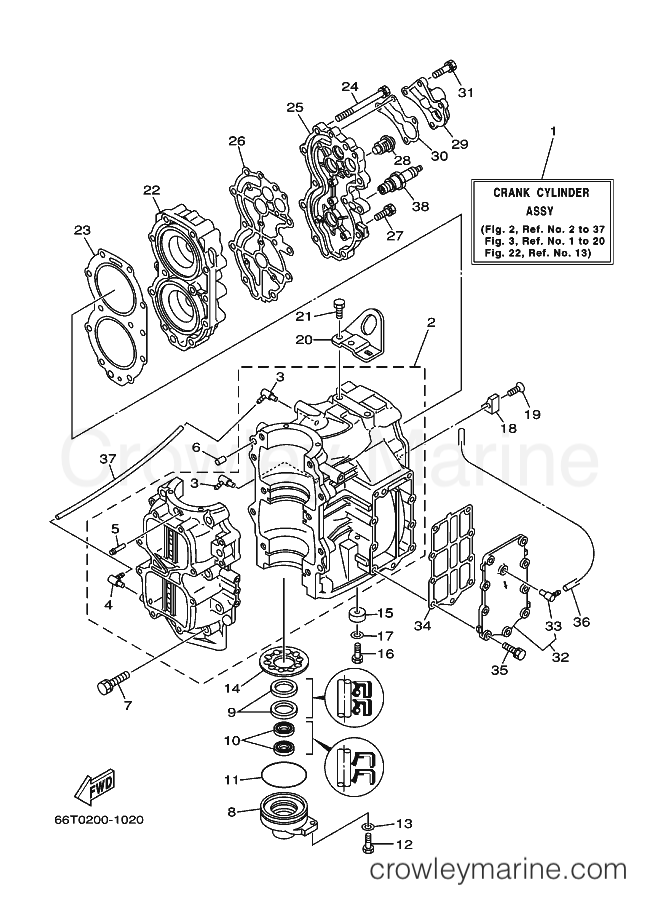

2002 International 40hp - E40X (66T2) [430] CYLINDER & CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E40X (66T2) [430] - CYLINDER & CRANKCASE
Change View:
CRANK CYLINDER ASSY
1
Yamaha Motors
CRANK CYLINDER ASSY66T-W0090-02-1S
Required: 1
CRANK CYLINDER ASSY
Price unavailable
CRANKCASE ASSY
2
Yamaha Motors
CRANKCASE ASSY66T-15100-02-1S
Required: 1
CRANKCASE ASSY
Price unavailable
-15%
Joint Pipe
5
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 1
. PIPE, JOINT
3 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-20%
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 10
BOLT, WITH WASHER
Supersedes: 90119-10005-00
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$5.49
$4.39
You save $1.10
More details
HOUSING, OIL SEAL
8
Yamaha Motors
HOUSING, OIL SEAL66T-15396-01-94
Required: 1
HOUSING, OIL SEAL
Price unavailable
OIL SEAL
9
Yamaha Motors
OIL SEAL93102-30M56
Required: 2
OIL SEAL
Price unavailable
OIL SEAL
10
Yamaha Motors
OIL SEAL93101-16001
Required: 2
OIL SEAL
Price unavailable
WASHER, BEARING COVER
14
Yamaha Motors
WASHER, BEARING COVER66T-11565-00
Required: 1
WASHER, BEARING COVER
Price unavailable
-15%
Anode
15
Yamaha Motors
Anode676-45251-00-00
Required: 1
ANODE
4 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$7.95
$6.76
You save $1.19
More details
SCREW, COUNTERSUNK
19
Yamaha Motors
SCREW, COUNTERSUNK90141-06M00
Required: 1
SCREW, COUNTERSUNK
Price unavailable
HANGER, ENGINE
20
Yamaha Motors
HANGER, ENGINE66T-11119-00
Required: 1
HANGER, ENGINE
Price unavailable
-15%
Bolt
21
Yamaha Motors
Bolt90101-08002-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
HEAD, CYLINDER 1
22
Yamaha Motors
HEAD, CYLINDER 166T-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Price unavailable
GASKET, CYLINDER HEAD 1
23
Yamaha Motors
GASKET, CYLINDER HEAD 166T-11181-A2
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
COVER, CYLINDER HEAD 1
25
Yamaha Motors
COVER, CYLINDER HEAD 166T-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Price unavailable
GASKET, HEAD COVER 1
26
Yamaha Motors
GASKET, HEAD COVER 166T-11193-A2
Required: 1
GASKET, HEAD COVER 1
Price unavailable
COVER, THERMOSTAT
29
Yamaha Motors
COVER, THERMOSTAT676-12413-00-1S
Required: 1
COVER, THERMOSTAT
Price unavailable
GASKET, COVER
30
Yamaha Motors
GASKET, COVER676-12414-A0
Required: 1
GASKET, COVER
Price unavailable
OUTER COVER, EXHAUST
32
Yamaha Motors
OUTER COVER, EXHAUST66T-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Price unavailable
GASKET, EXHAUST OUTER COVER
34
Yamaha Motors
GASKET, EXHAUST OUTER COVER66T-41114-A0
Required: 1
GASKET, EXHAUST OUTER COVER
Price unavailable
PLUG, SPARK (NGK BR7HS)
38
Yamaha Motors
PLUG, SPARK (NGK BR7HS)94702-00272
Required: 2
PLUG, SPARK (NGK BR7HS)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
