All diagrams for this model

1988 Two-Stroke Outboard 15 - DT15 CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

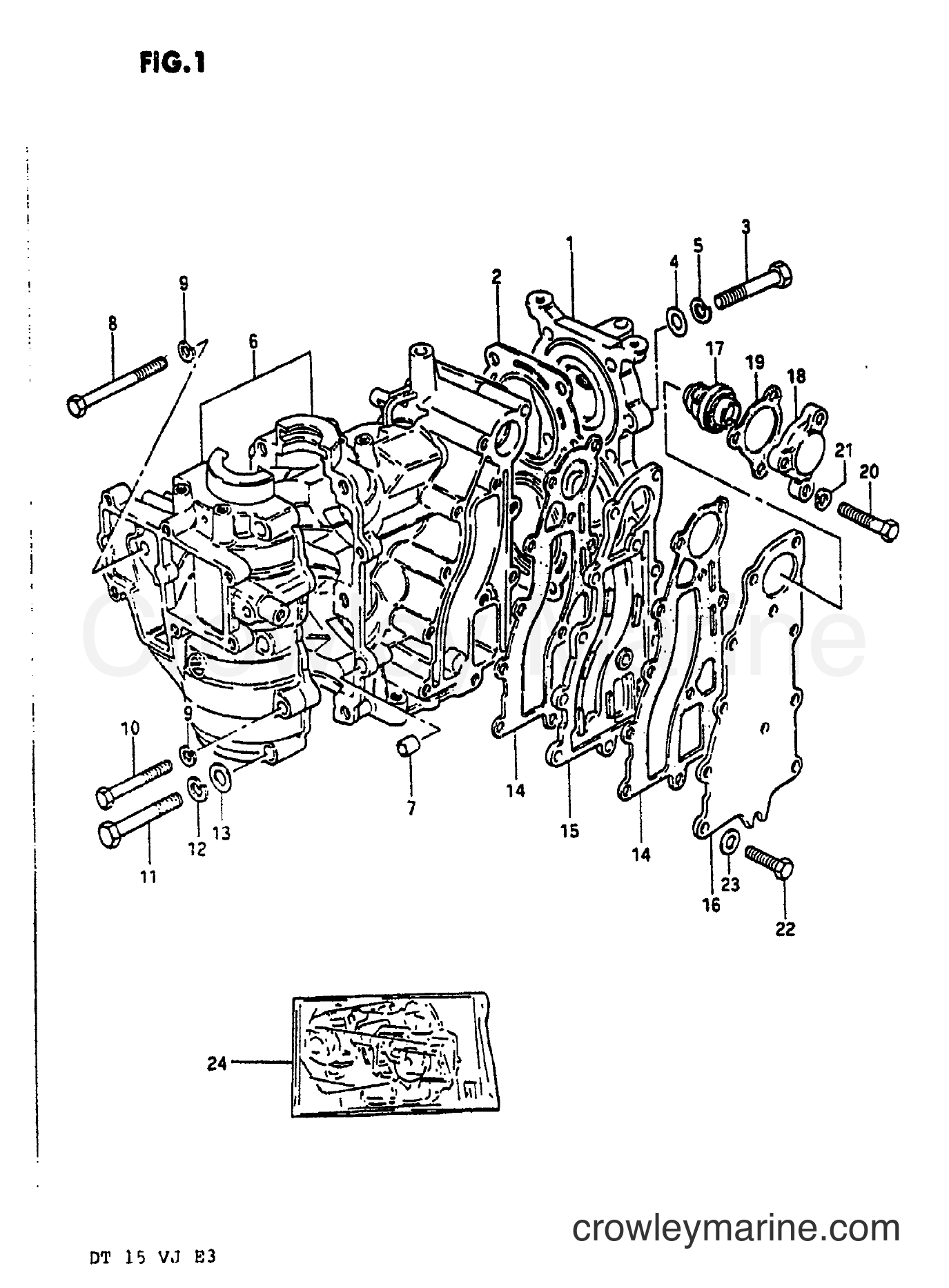

Suzuki Marine DT15 - CYLINDER
Change View:
-15%
CYLINDER GASKET
2
Suzuki Marine
CYLINDER GASKET11141-93960
Required: 1
GASKET, CYLINDER HEAD
Supersedes: 11141-93901
2 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$25.39
$21.58
You save $3.81
More details
-20%
BOLT
3
Suzuki Marine
BOLT01500-0840A
Required: 10
BOLT
Supersedes: 01107-08402
Cross Ship
Leaves in 2-5 days
$3.29
$2.63
You save $0.66
More details
-15%
DOWEL PIN
7
Suzuki Marine
DOWEL PIN04211-09109
Required: 2
.KNOCK PIN
Cross Ship
Leaves in 2-5 days
$2.05
$1.74
You save $0.31
More details
-15%
BOLT
20
Suzuki Marine
BOLT01500-06357
Required: 3
BOLT
Supersedes: 01107-06352
Cross Ship
Leaves in 2-5 days
$3.43
$2.92
You save $0.51
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
