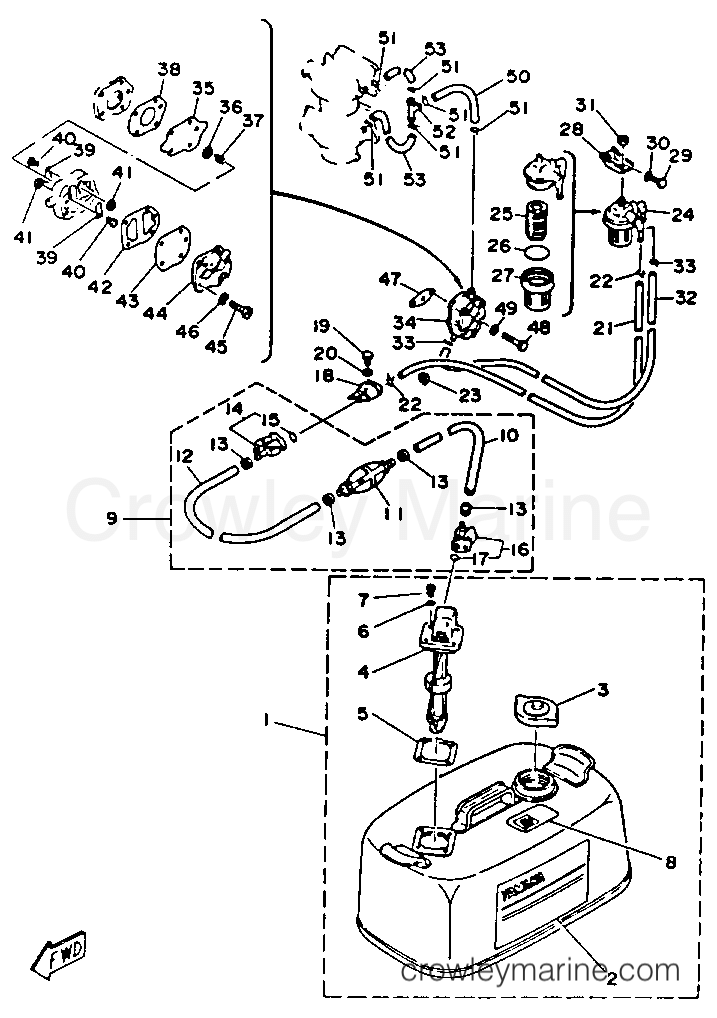

1990 Outboard 55hp - CV55ELD FUEL TANK diagram
-15%
1
Yamaha Motors
Fuel Tank Assembly6Y1-W2420-42-24
Required: 1
FUEL TANK ASSEMBLY
No longer availableSearch Nationwide Inventory
$111.56
You save $19.69
-15%
2
Yamaha Motors
Side Graphic6Y1-24244-20-00
Required: 1
GRAPHIC, SIDE
No longer availableSearch Nationwide Inventory
$11.69
You save $2.06
-15%
No longer availableSearch Nationwide Inventory
$26.05
You save $4.60
-15%
4
Yamaha Motors
Fuel Meter Assembly6Y1-24260-02-00
Required: 1
FUEL METER ASSEMBLY
No longer availableSearch Nationwide Inventory
$90.40
You save $15.95
-20%
5
Yamaha Motors
Fuel Meter Gasket6Y1-24268-01-00
Required: 1
.GASKET, FUEL METER
Supersedes: 6Y1-24268-00-00
No longer availableSearch Nationwide Inventory
$1.68
You save $0.42
-15%
In stock
5+ in stock
$2.38
You save $0.42
-15%
7
Yamaha Motors
Pan Head Screw98586-05016-00
Required: 4
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$3.10
You save $0.55
-15%
8
Yamaha Motors
Fuel Tank Graphic6Y1-24254-40-00
Required: 1
GRAPHIC, FUEL TANK 7
No longer availableSearch Nationwide Inventory
$11.05
You save $1.95
-15%
9
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-52-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6Y1-24306-51-00
No longer availableSearch Nationwide Inventory
$217.52
You save $38.39
-20%
10
Yamaha Motors
.HOSE (L3000)90445-11M81-00
Required: 1
.HOSE (L2050)
Supersedes: 90445-11M06-00
In stock
Only 1 remaining
$33.59
You save $8.40
-15%
11
Yamaha Motors
PRIMER PUMP ASSY.6Y1-24360-51-00
Required: 1
PRIMER PUMP ASSY.
No longer availableSearch Nationwide Inventory
$37.78
You save $6.67
-15%
12
Yamaha Motors
Hose (L800)90445-11M78-00
Required: 1
.HOSE (L850)
Supersedes: 90445-11M05-00
No longer availableSearch Nationwide Inventory
$7.57
You save $1.33
-20%
$2.24
You save $0.56
-20%
14
Yamaha Motors
Fuel Pipe Joint Comp6G1-24305-05-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6G1-24305-01-00
In stock
5+ in stock
$22.40
You save $5.60
-20%
In stock
5+ in stock
$4.39
You save $1.10
-20%
16
Yamaha Motors
Fuel Pipe Joint Comp6Y1-24305-06-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6Y1-24305-02-00
In stock
Only 1 remaining
$20.08
You save $5.02
-20%
In stock
5+ in stock
$4.39
You save $1.10
-20%
18
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
5+ in stock
$28.79
You save $7.20
-15%
19
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 1
BOLT, HEXAGON
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-20%
20
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
21
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L600)
Supersedes: 90445-09M25-00
In stock
5+ in stock
$9.99
You save $2.50
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-15%
$6.79
You save $1.20
-20%
24
Yamaha Motors
Filter Assembly61N-24560-10-00
Required: 1
FILTER ASSEMBLY
Supersedes: 655-24560-01-00
In stock
Only 5 remaining
$33.19
You save $8.30
-20%
25
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 1
ELEMENT, FILTER
In stock
Only 1 remaining
$16.76
You save $4.19
-20%
In stock
Only 2 remaining
$5.19
You save $1.30
-15%
No longer availableSearch Nationwide Inventory
$14.62
You save $2.58
-15%
28
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
No longer availableSearch Nationwide Inventory
$14.11
You save $2.49
-20%
29
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.28
You save $0.32
-20%
30
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
$3.04
You save $0.76
-15%
$5.09
You save $0.90
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-20%
34
Yamaha Motors
Fuel Pump Assembly692-24410-01-00
Required: 1
FUEL PUMP ASSEMBLY
Supersedes: 6A0-24410-05-00
In stock
5+ in stock
$44.79
You save $11.20
-20%
$20.79
You save $5.20
-15%
36
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
In stock
Only 1 remaining
$3.87
You save $0.68
-50%
37
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
SPRING, DIAPHRAGM
In stock
Only 1 remaining
$2.75
You save $2.75
-20%
In stock
5+ in stock
$7.19
You save $1.80
-20%
39
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 2
.VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$12.79
You save $3.20
-15%
40
Yamaha Motors
Pan Head Screw90147-03M00-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$2.21
You save $0.39
-15%
No longer availableSearch Nationwide Inventory
$3.61
You save $0.64
-20%
42
Yamaha Motors
GASKET, BODY 2648-24435-03-00
Required: 1
GASKET, BODY 2
Supersedes: 648-24435-02-00
In stock
Only 4 remaining
$11.59
You save $2.90
-20%
In stock
5+ in stock
$9.19
You save $2.30
-15%
No longer availableSearch Nationwide Inventory
$15.00
You save $2.65
-20%
45
Yamaha Motors
98580-05530-0097890-05030-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98580-05530-00
In stock
Only 3 remaining
$3.80
You save $0.95
-20%
46
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
.WASHER, SPRING
$0.28
You save $0.07
-20%
47
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.88
You save $0.72
-20%
48
Yamaha Motors
Bolt97095-06040-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-06040-00
In stock
5+ in stock
$2.24
You save $0.56
-20%
49
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
In stock
5+ in stock
$0.80
You save $0.20
-20%
50
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09089-00
In stock
5+ in stock
$9.99
You save $2.50
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-20%
52
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
5+ in stock
$13.59
You save $3.40
-20%
53
Yamaha Motors
Hose90445-094K7-00
Required: 2
HOSE (L65)
Supersedes: 90445-09061-00
In stock
5+ in stock
$3.28
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
