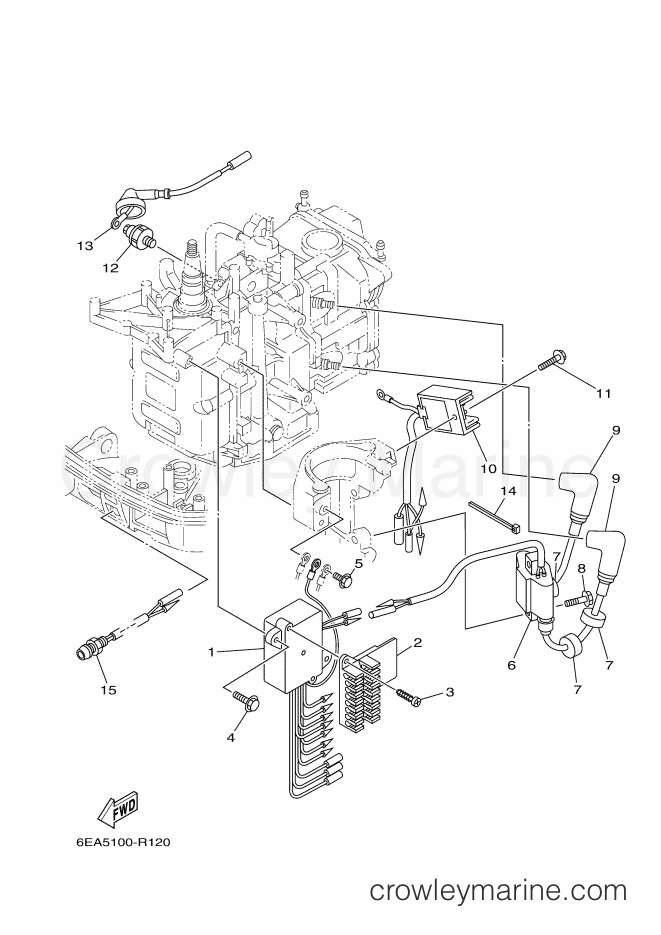

2017 International 9.9hp - T9.9XPHB-2017 (6EA5) [090] ELECTRICAL 1 diagram
![Yamaha Motors T9.9XPHB-2017 (6EA5) [090] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/u30GVv9j.png)
-15%
1
Yamaha Motors
C.D.I. UNIT Assembly68T-85540-00-00
Required: 1
C.D.I. UNIT ASSY
$385.89
You save $68.10
-15%
2
Yamaha Motors
Coupler Clamp68T-82522-00-00
Required: 1
CLAMP, COUPLER
$5.94
You save $1.05
-20%
3
Yamaha Motors
Tapping Screw97780-40112-00
Required: 2
SCREW, TAPPING
Supersedes: 97780-40512-00
$3.44
You save $0.86
-20%
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
$2.52
You save $0.63
-50%
5
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.05
You save $1.05
-20%
6
Yamaha Motors
Ignition Coil Assembly680-85570-02-00
Required: 1
IGNITION COIL ASSY
In stock
5+ in stock
$129.95
You save $32.04
-15%
$5.09
You save $0.90
-20%
8
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-20%
In stock
5+ in stock
$18.39
You save $4.60
-15%
10
Yamaha Motors
Rectifier & Regulator Assembly68T-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
$136.84
You save $24.15
-50%
11
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.05
You save $1.05
-15%
12
Yamaha Motors
Oil Pressure Switch Assembly67F-82504-00-00
Required: 1
OIL PRESSURE SWITCH ASSY
$66.29
You save $11.70
-15%
13
Yamaha Motors
Wire Lead 268T-82127-11-00
Required: 1
WIRE, LEAD 2
Supersedes: 68T-82127-10-00
$16.99
You save $3.00
-20%
14
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
15
Yamaha Motors
Emergency Signal Light Assembly68T-85410-00-00
Required: 1
EMERGENCY SIGNAL LIGHT ASSY
No longer availableSearch Nationwide Inventory
$44.24
You save $7.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
