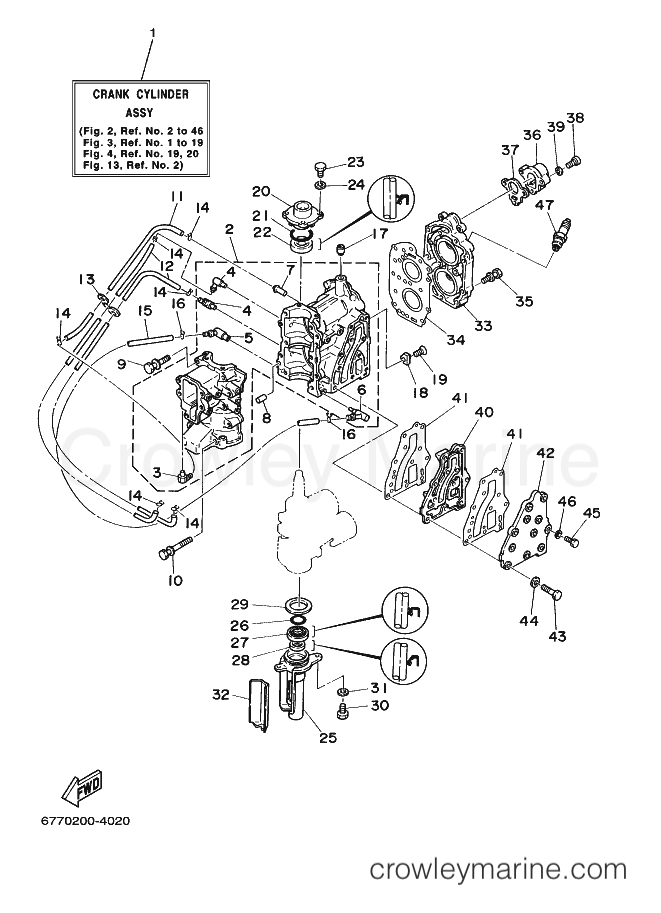

2001 International 8hp - E8D (6770) [040] CYLINDER & CRANKCASE diagram
![Yamaha Motors E8D (6770) [040] - CYLINDER & CRANKCASE](https://cdn.crowleymarine.com/yamaha/QHn0vhkn.png)
1
Yamaha Motors
CRANK CYLINDER ASSY677-W0090-06-1S
Required: 1
CRANK CYLINDER ASSY
Price unavailable
2
Yamaha Motors
CRANKCASE ASSY677-15100-02-1S
Required: 1
CRANKCASE ASSY
Price unavailable
-20%
3
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
. CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
5+ in stock
$13.99
You save $3.50
-20%
4
Yamaha Motors
Check Valve Assembly646-11370-01-00
Required: 2
. CHECK VALVE ASSY
Supersedes: 646-11370-00-00
In stock
Only 4 remaining
$11.99
You save $3.00
5
Yamaha Motors
. NIPPLE, HOSE677-11372-00
Required: 1
. NIPPLE, HOSE
Price unavailable
-20%
6
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
. NIPPLE, HOSE
In stock
Only 3 remaining
$12.79
You save $3.20
-15%
7
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 1
. PIPE, JOINT
$7.22
You save $1.27
8
Yamaha Motors
. PIN, DOWEL93605-08041
Required: 2
. PIN, DOWEL
Price unavailable
9
Yamaha Motors
. BOLT, WITH WASHER90119-06M15
Required: 8
. BOLT, WITH WASHER
Price unavailable
10
Yamaha Motors
BOLT, WITH WASHER90119-06M16
Required: 2
BOLT, WITH WASHER
Price unavailable
-20%
11
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 1
HOSE (L167)
Supersedes: 90445-07M02-00
In stock
5+ in stock
$6.39
You save $1.60
-15%
12
Yamaha Motors
Hose (L220)90445-07M08-00
Required: 2
HOSE (L200)
Supersedes: 90445-07258-00
No longer availableSearch Nationwide Inventory
$6.29
You save $1.11
-15%
$3.82
You save $0.68
-20%
In stock
Only 1 remaining
$2.64
You save $0.66
-20%
15
Yamaha Motors
Hose (L400)90445-10M43-00
Required: 1
HOSE (L240)
Supersedes: 90445-10M03-00
In stock
5+ in stock
$5.59
You save $1.40
-20%
In stock
5+ in stock
$0.96
You save $0.24
-20%
17
Yamaha Motors
Dowel Pin99530-10114-00
Required: 1
PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.12
You save $0.53
18
Yamaha Motors
ANODE664-11325-00
Required: 1
ANODE
Price unavailable
19
Yamaha Motors
SCREW, COUNTERSUNK90151-06M01
Required: 1
SCREW, COUNTERSUNK
Price unavailable
20
Yamaha Motors
HOUSING, OIL SEAL677-15359-00-94
Required: 1
HOUSING, OIL SEAL
Price unavailable
-20%
In stock
Only 5 remaining
$6.39
You save $1.60
-15%
$6.37
You save $1.12
-15%
23
Yamaha Motors
Bolt97080-06018-00
Required: 4
BOLT
Supersedes: 97095-06018-00
$7.64
You save $1.35
-20%
24
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
25
Yamaha Motors
HOUSING, OIL SEAL677-15396-01-5B
Required: 1
HOUSING, OIL SEAL
Price unavailable
26
Yamaha Motors
O-RING93210-42M70
Required: 1
O-RING
Price unavailable
-20%
$6.39
You save $1.60
28
Yamaha Motors
OIL SEAL93101-14M01
Required: 1
OIL SEAL
Price unavailable
-15%
29
Yamaha Motors
PLATE WASHER90201-41528-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$4.17
You save $0.74
-20%
In stock
5+ in stock
$2.21
You save $0.55
-20%
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
32
Yamaha Motors
SEAL, CRANKCASE677-15379-02
Required: 1
SEAL, CRANKCASE
Price unavailable
33
Yamaha Motors
HEAD, CYLINDER 1677-11111-00-1S
Required: 1
HEAD, CYLINDER 1
Price unavailable
-15%
34
Yamaha Motors
Heap Gasket677-11181-A1-00
Required: 1
GASKET, CYLINDER HEAD 1
$25.49
You save $4.50
-15%
35
Yamaha Motors
Bolt w/ Washer90119-06M14-00
Required: 13
BOLT, WITH WASHER
$8.07
You save $1.42
36
Yamaha Motors
COVER, THERMOSTAT677-12413-00-1S
Required: 1
COVER, THERMOSTAT
Price unavailable
37
Yamaha Motors
GASKET, COVER677-12414-00
Required: 1
GASKET, COVER
Price unavailable
-20%
In stock
5+ in stock
$1.28
You save $0.32
-20%
39
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.36
You save $0.59
40
Yamaha Motors
INNER COVER, EXHAUST677-41111-01-1S
Required: 1
INNER COVER, EXHAUST
Price unavailable
41
Yamaha Motors
GASKET, EXHAUST INNER COVER677-41112-01
Required: 2
GASKET, EXHAUST INNER COVER
Price unavailable
42
Yamaha Motors
OUTER COVER, EXHAUST677-41113-01-1S
Required: 1
OUTER COVER, EXHAUST
Price unavailable
-20%
43
Yamaha Motors
Bolt97080-06030-00
Required: 10
BOLT
Supersedes: 97013-06030-00
In stock
Only 3 remaining
$3.28
You save $0.82
-20%
44
Yamaha Motors
Plate Washer92990-06600-00
Required: 10
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
In stock
5+ in stock
$2.21
You save $0.55
-20%
46
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
47
Yamaha Motors
BR7HS NGK SPLUG 10BR7-HS000-00-00
Required: 2
PLUG, SPARK (NGK BR7HS-10)
Supersedes: 94702-00271-00
In stock
5+ in stock
$2.79
You save $0.70
-20%
47
Yamaha Motors
B7HS NGKB7H-S0000-00-00
Required: 2
PLUG, SPARK (NGK B7HS-10)
Supersedes: 94702-00217-00
In stock
5+ in stock
$3.96
You save $0.99
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
