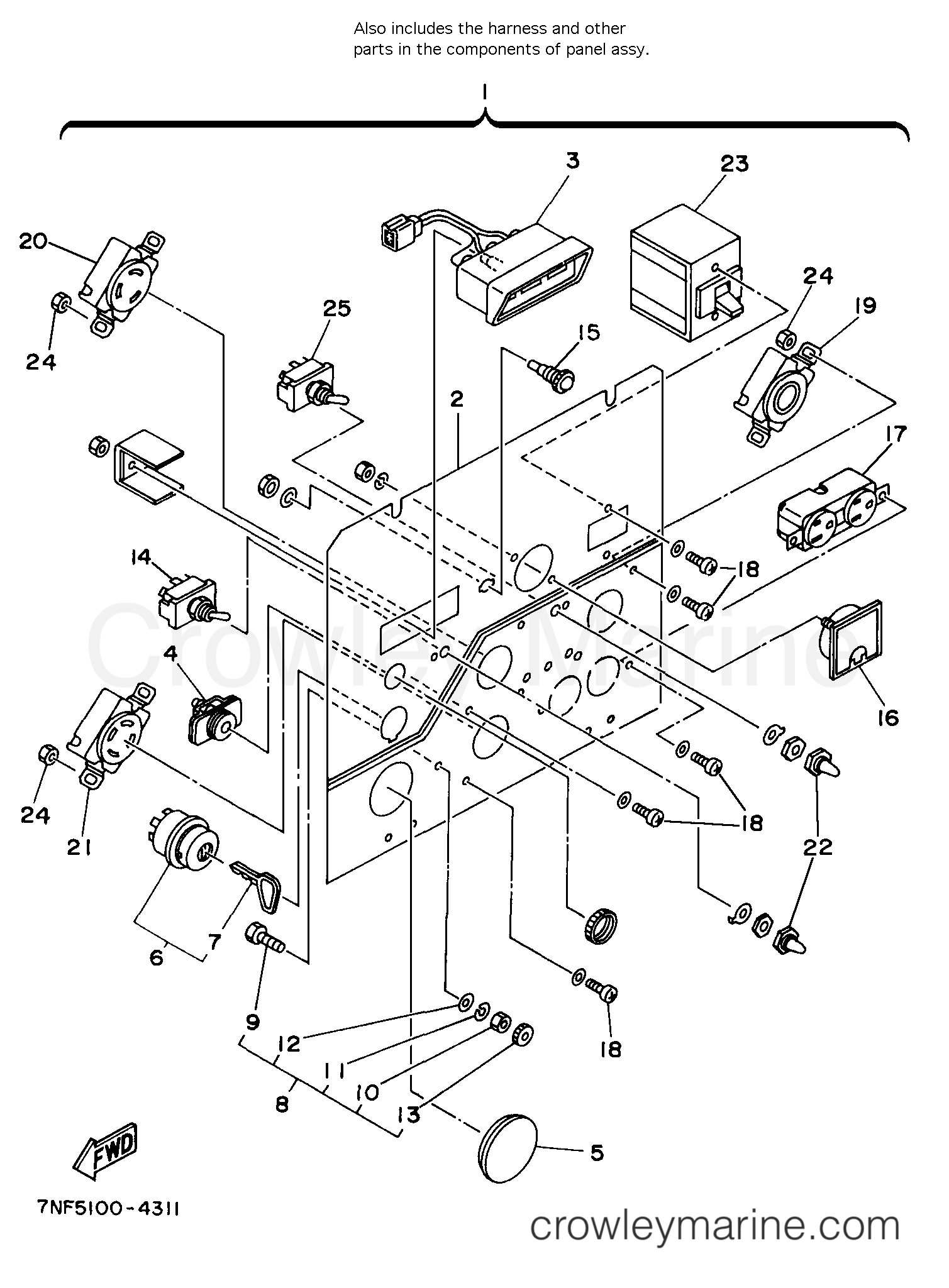

1998 Generator 6500 - EDL6500S CONTROL PANEL diagram
-15%
1
Yamaha Motors
Usa-Edl6500 Panel AssemblyYFG-31810-31-50
Required: 1
PANEL ASSY, USA-EDL6500
$2296.69
You save $405.30
-15%
2
Yamaha Motors
Usa-Edl6500 Panel AssemblyYFG-31810-31-50
Required: 1
.PLATE, PANEL
Supersedes: YFG-31810-32-10
$2296.69
You save $405.30
-15%
3
Yamaha Motors
Pilot Box (Edl6500)YF1-89610-34-20
Required: 1
.BOX, PILOT (EDL6500)
$138.54
You save $24.45
-15%
4
Yamaha Motors
IndicatorYF1-59516-59-50
Required: 1
.INDICATOR (YF1-59516-5950)
Supersedes: YF1-59516-59-51
$101.99
You save $18.00
-15%
4
Yamaha Motors
IndicatorYF5-21704-18-50
Required: 1
INDICATOR, GLOW PLUG (7NF1-5)
Supersedes: YF5-21704-18-52
$84.99
You save $15.00
-15%
5
Yamaha Motors
Rubber (Edl6500) CoverYF3-63308-74-70
Required: 1
.COVER, RUBBER (EDL6500)
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-15%
6
Yamaha Motors
Starter Switch AssemblyYF1-53776-36-10
Required: 1
.STARTER SWITCH ASSY
No longer availableSearch Nationwide Inventory
$189.54
You save $33.45
-15%
7
Yamaha Motors
YF6-67115-52-40YF6-67115-51-44
Required: 2
..KEY, START
Supersedes: YF6-67115-51-40
No longer availableSearch Nationwide Inventory
$17.84
You save $3.15
-15%
8
Yamaha Motors
Terminal AssemblyYF1-89616-18-00
Required: 1
.TERMINAL ASSY, EARTH (EDL6500
$21.24
You save $3.75
-15%
9
Yamaha Motors
Terminal AssemblyYF1-89616-18-00
Required: 1
..TERMINAL ASSY, EARTH (EDL6500
$21.24
You save $3.75
-15%
10
Yamaha Motors
NutYF1-89616-18-30
Required: 1
..NUT (EDL6500)
$6.37
You save $1.12
-20%
11
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
..WASHER, SPRING (YF0-45125-00-60)
Supersedes: YK0-45125-00-60
In stock
5+ in stock
$2.84
You save $0.71
-15%
12
Yamaha Motors
Plain WasherYK0-40125-00-60
Required: 1
..WASHER, PLAIN (YF0-40125-00-60)
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-15%
13
Yamaha Motors
NutYF1-89616-18-10
Required: 1
..NUT (EDL6500)
$13.17
You save $2.32
-15%
14
Yamaha Motors
Toggle SwitchYF1-89616-05-10
Required: 1
.SWITCH, TOGGLE (EDL6500)
No longer availableSearch Nationwide Inventory
$61.19
You save $10.80
-15%
15
Yamaha Motors
Pilot (Edl6500) Lamp AssemblyYF1-89616-12-10
Required: 1
.LAMP ASSY, PILOT (EDL6500)
$50.14
You save $8.85
-15%
16
Yamaha Motors
V (Edl6500) MeterYF1-89610-35-50
Required: 1
.METER, V (EDL6500)
$231.19
You save $40.80
-15%
17
Yamaha Motors
Twin (Gfci 7Nf1) ReceptacleYF1-86200-34-32
Required: 1
.RECEPTACLE, TWIN (GFCI 7NF1)
No longer availableSearch Nationwide Inventory
$116.44
You save $20.55
-15%
17
Yamaha Motors
Receptacle (EDL6500)YF1-89610-32-50
Required: 1
.RECEPTACLE (EDL6500)
No longer availableSearch Nationwide Inventory
$59.49
You save $10.50
18
Yamaha Motors
Screw With WasherYF1-89619-64-00
Required: 10
.SCREW, WITH WASHER (EDL6500)
$2.26
-15%
19
Yamaha Motors
L5-30R ReceptacleYF1-89610-34-32
Required: 1
.RECEPTACLE, L5-30R
$359.54
You save $63.45
-15%
20
Yamaha Motors
Receptacle (EDL6500)YF1-89610-33-80
Required: 1
.RECEPTACLE (EDL6500)
No longer availableSearch Nationwide Inventory
$90.94
You save $16.05
-15%
21
Yamaha Motors
ReceptacleYF1-89610-34-02
Required: 1
.RECEPTACLE, L14-30R
$375.69
You save $66.30
-15%
22
Yamaha Motors
Water Proof (Edl6500) CapYF1-89616-05-20
Required: 2
.CAP, WATER PROOF (EDL6500)
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
23
Yamaha Motors
BREAKER (26.5A)YF1-89610-35-10
Required: 1
.BREAKER (265A)
No longer availableSearch Nationwide Inventory
$159.79
You save $28.20
-15%
24
Yamaha Motors
NUT (6TA)95307-04600-00
Required: 6
.NUT
Supersedes: YF0-20545-00-40
$8.07
You save $1.42
-15%
25
Yamaha Motors
V (Select) Switch, Edl6500YF1-89610-38-70
Required: 1
.SWITCH, V (SELECT), EDL6500
No longer availableSearch Nationwide Inventory
$294.94
You save $52.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
