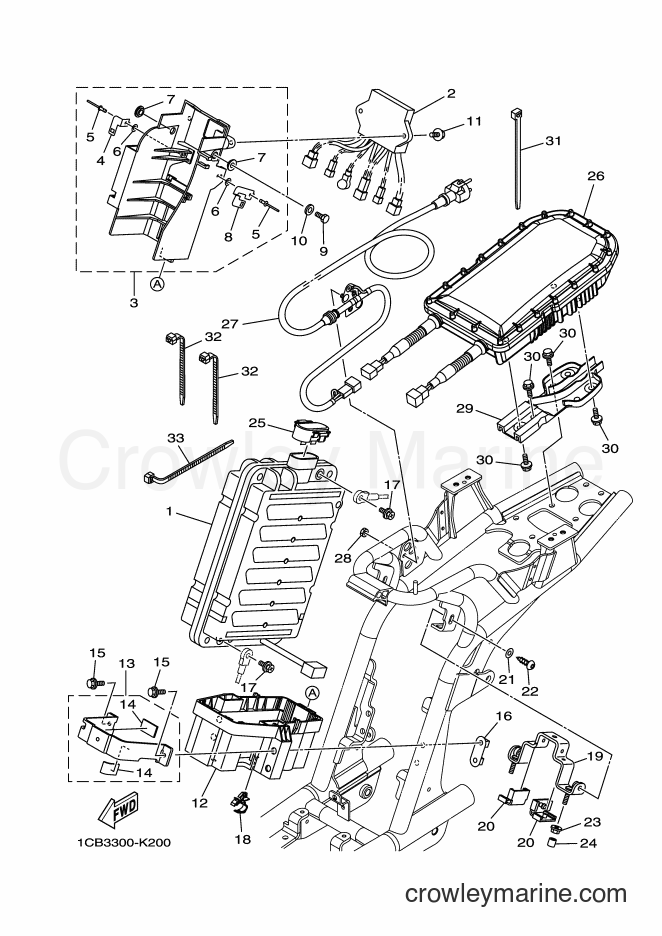

2012 Electric Scooter ED06 - ED06 (1CB6) [010] ELECTRICAL 1 diagram
![Yamaha Motors ED06 (1CB6) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/GcDX9Tc4.png)
1
Yamaha Motors
BATTERY BOX ASSY1CB-8212A-20
Required: 1
BATTERY BOX ASSY
Price unavailable
2
Yamaha Motors
CONT. BOX ASSY1CB-8721A-40
Required: 1
CONT. BOX ASSY
Price unavailable
3
Yamaha Motors
PLATE1CB-8132G-00
Required: 1
PLATE
Price unavailable
4
Yamaha Motors
. BRACKET1CB-8350E-00
Required: 1
. BRACKET
Price unavailable
-15%
5
Yamaha Motors
BLIND RIVET90267-40110-00
Required: 2
. RIVET, BLIND
$1.78
You save $0.32
-50%
6
Yamaha Motors
Plate Washer92990-04600-00
Required: 2
. WASHER, PLATE
Supersedes: 92902-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-15%
$10.62
You save $1.87
8
Yamaha Motors
. BRACKET1CB-83635-00
Required: 1
. BRACKET
Price unavailable
-50%
9
Yamaha Motors
Bolt97013-05010-00
Required: 2
BOLT
Supersedes: 97002-05010-00
In stock
Only 5 remaining
$0.42
You save $0.42
-20%
10
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
$2.89
You save $0.51
12
Yamaha Motors
SEAT, BATTERY1CB-82122-00
Required: 1
SEAT, BATTERY
Price unavailable
13
Yamaha Motors
PLATE, JOINT1CB-8272U-00
Required: 1
PLATE, JOINT
Price unavailable
-15%
$6.37
You save $1.12
-15%
15
Yamaha Motors
Flange Bolt95817-06045-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-06045-00
$8.07
You save $1.42
16
Yamaha Motors
NUT1CB-21295-00
Required: 1
NUT
Price unavailable
17
Yamaha Motors
SCREW5UY-82113-00
Required: 2
SCREW
Price unavailable
-15%
18
Yamaha Motors
Lead Clamp5UY-81444-00-00
Required: 1
CLAMP, LEAD 2
$1.32
You save $0.23
19
Yamaha Motors
PLATE, BATTERY FITTING1CB-82136-00
Required: 1
PLATE, BATTERY FITTING
Price unavailable
20
Yamaha Motors
GROMMET1CB-82535-00
Required: 2
GROMMET
Price unavailable
-15%
21
Yamaha Motors
Plate Washer90201-07081-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
-15%
No longer availableSearch Nationwide Inventory
$1.15
You save $0.20
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-20%
24
Yamaha Motors
Hose (L110)90445-09068-00
Required: 2
HOSE (L9)
Supersedes: 90445-09M32-00
$5.19
You save $1.30
25
Yamaha Motors
CIRCUIT BREAKER COMP.1CB-82181-20
Required: 1
CIRCUIT BREAKER COMP.
Price unavailable
26
Yamaha Motors
CHARGER, BATTERY1CB-82107-00
Required: 1
CHARGER, BATTERY
Price unavailable
27
Yamaha Motors
CORD ASSY 21CB-87132-20
Required: 1
CORD ASSY 2
Price unavailable
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
29
Yamaha Motors
PLATE, INSULATOR1CB-8272N-00
Required: 1
PLATE, INSULATOR
Price unavailable
-20%
30
Yamaha Motors
Flange Bolt95817-06016-00
Required: 6
BOLT, FLANGE
Supersedes: 95802-06016-00
In stock
Only 3 remaining
$1.56
You save $0.39
-15%
31
Yamaha Motors
Band1UA-82591-00-00
Required: 2
CLAMP
Supersedes: 90465-13152-00
$4.67
You save $0.82
-15%
32
Yamaha Motors
Clamp90464-15195-00
Required: 2
CLAMP
Supersedes: 90464-13073-00
$3.75
You save $0.66
-15%
$3.75
You save $0.66
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
