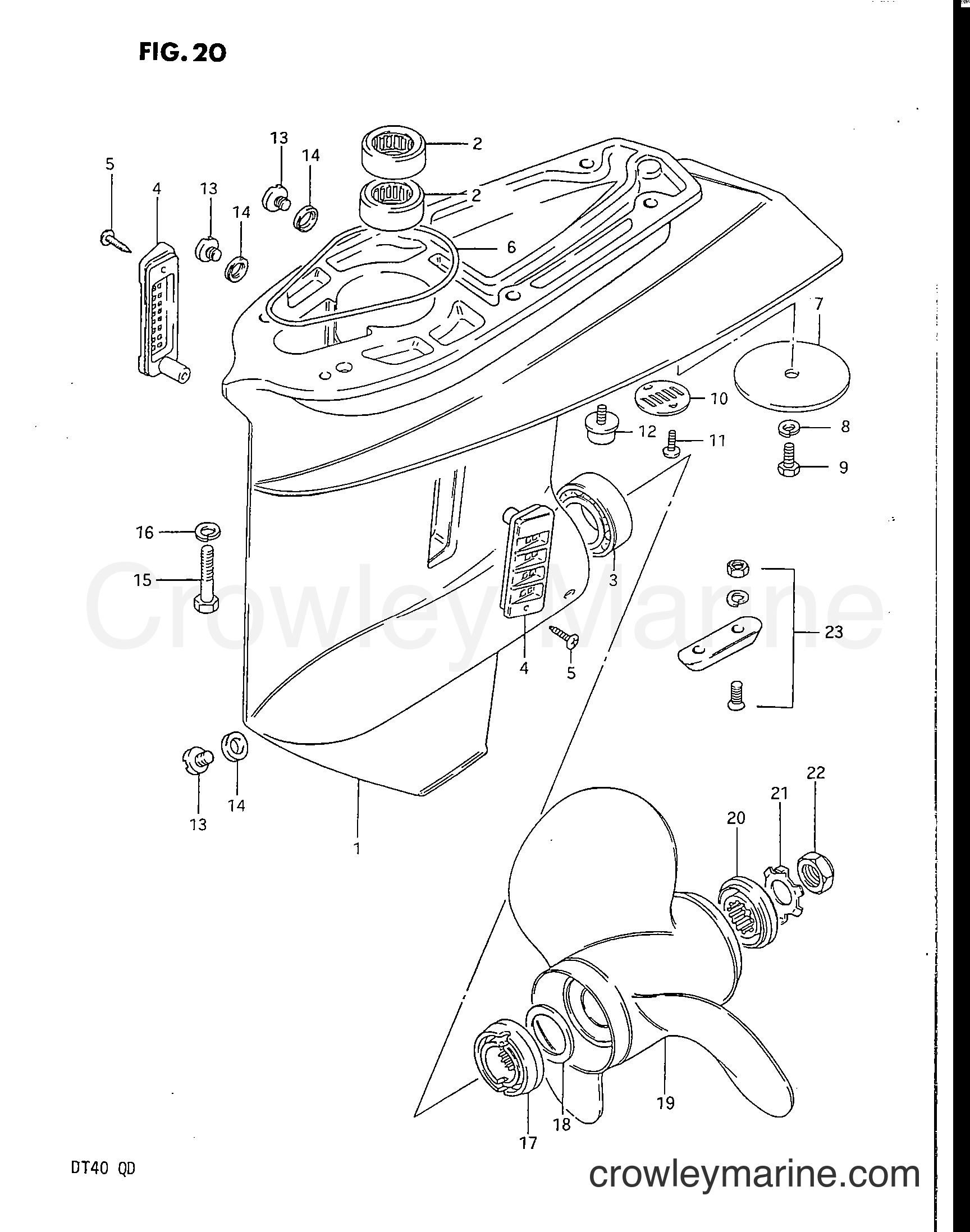

1983 Two-Stroke Outboard 40 - DT40 GEAR CASE diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part55100-94310-02M
Required: 1
CASE SET, GEAR
Supersedes: 55100-94302-02M
No longer availableSearch Nationwide Inventory
$272.13
You save $48.02
-15%
2
Suzuki Marine
Obsolete Suzuki Part09263-22029
Required: 2
.BEARING, PINION
No longer availableSearch Nationwide Inventory
$12.44
You save $2.19
-15%
3
Suzuki Marine
RT 30X62X17.2509265-30004
Required: 1
.BEARING, PROPELLER SHAFT
$63.61
You save $11.22
-15%
4
Suzuki Marine
WATER FILTER17631-93402
Required: 2
FILTER, WATER
No longer availableSearch Nationwide Inventory
$6.23
You save $1.10
-15%
$2.35
You save $0.42
-15%
6
Suzuki Marine
GEAR CASE SEAL55122-94300
Required: 1
SEAL, GEAR CASE
No longer availableSearch Nationwide Inventory
$6.76
You save $1.19
-20%
7
Suzuki Marine
TRIM,TAB55125-95500
Required: 1
TRIM TAB
Supersedes: 55125-95202-02M
In stock
Only 1 remaining
$16.84
You save $4.21
-20%
8
Suzuki Marine
WASHER LOCK09162-08007
Required: 1
LOCK WASHER
Supersedes: 09162-08003
$1.50
You save $0.38
-15%
9
Suzuki Marine
BOLT,TRIM TAB09100-08215
Required: 1
BOLT (8X16)
Supersedes: 09100-08090
No longer availableSearch Nationwide Inventory
$2.34
You save $0.41
-15%
10
Suzuki Marine
Obsolete Suzuki Part55114-98502
Required: 1
COVER, GEAR CASE LOWER
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
No longer availableSearch Nationwide Inventory
$0.65
You save $0.11
-20%
12
Suzuki Marine
ZINC, ANODE11130-94600
Required: 1
ZINC, PROTECTION
Supersedes: 55320-93142
$7.70
You save $1.92
-20%
13
Suzuki Marine
PLUG,DRAIN,10X709248-10008
Required: 3
PLUG, DRAIN
Supersedes: 09248-10005
PartX Recommends:Recmar REC09248-10008
In stock
5+ in stock
$6.51
You save $1.63
-20%
14
Suzuki Marine
GASKET, DRAIN P09168-10022
Required: 3
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.46
You save $0.37
-20%
15
Suzuki Marine
BOLT,8X4009116-08128
Required: 6
BOLT (8X40)
Supersedes: 09100-08101
$3.77
You save $0.94
-20%
16
Suzuki Marine
WASHER LOCK09162-08007
Required: 6
LOCK WASHER
Supersedes: 09162-08003
$1.50
You save $0.38
-20%
17
Suzuki Marine
STOPPER,PROPELL57632-95330
Required: 1
STOPPER, PROPELLER BUSHING
Supersedes: 57632-95304
$40.32
You save $10.08
-15%
18
Suzuki Marine
Obsolete Suzuki Part09160-32006
Required: 1
WASHER (32.6X45X1)
No longer availableSearch Nationwide Inventory
$1.29
You save $0.23
-15%
19
Suzuki Marine
Supersedes to 58100-94302-01958100-94302-01T
Required: 1
PROPELLER (3X11-1/2X9)
Supersedes: 58100-94300-01T
No longer availableSearch Nationwide Inventory
$75.66
You save $13.35
-15%
19
Suzuki Marine
Supersedes to 58100-95212-01T58100-95211-01T
Required: 1
PROPELLER (3X11-1/2X10)
Supersedes: 58100-95210-01T
No longer availableSearch Nationwide Inventory
$69.39
You save $12.24
-15%
19
Suzuki Marine
Supersedes to 58100-88L20-01958100-95222-019
Required: 1
PROPELLER (3X11-1/4X11)
Supersedes: 58100-95220-01T
No longer availableSearch Nationwide Inventory
$147.01
You save $25.94
-20%
19
Suzuki Marine
14P DF40A/50A/658100-88LQ0-019
Required: 1
PROPELLER (3X11-3/8X14)
Supersedes: 58100-95351-01T
$140.95
You save $35.33
-15%
19
Suzuki Marine
13P DF40A/50A/658100-88LB0-019
Required: 1
PROPELLER (3X11-1/2X13)
Supersedes: 58100-94311-01T
$164.84
You save $29.09
-15%
19
Suzuki Marine
Supersedes to 58100-88L30-01958100-95393-019
Required: 1
PROPELLER (3X11-5/8X12)
Supersedes: 58100-95391-01T
No longer availableSearch Nationwide Inventory
$115.09
You save $20.31
-15%
20
Suzuki Marine
BUSHING, PROP58120-88L01
Required: 1
.BUSH, PROPELLER
Supersedes: 58120-95320
In stock
Only 1 remaining
$33.03
You save $5.83
-15%
21
Suzuki Marine
SPACER,PROPELLE57633-94301
Required: 1
SPACER
Supersedes: 57633-94300
$16.15
You save $2.85
-15%
No longer availableSearch Nationwide Inventory
$3.64
You save $0.64
-20%
$21.52
You save $5.38
-20%
24
Suzuki Marine
ZINC ASSY PROTE55300-95500
Required: 1
ZINC ASSY, PROTECTION
In stock
Only 2 remaining
$14.48
You save $3.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
