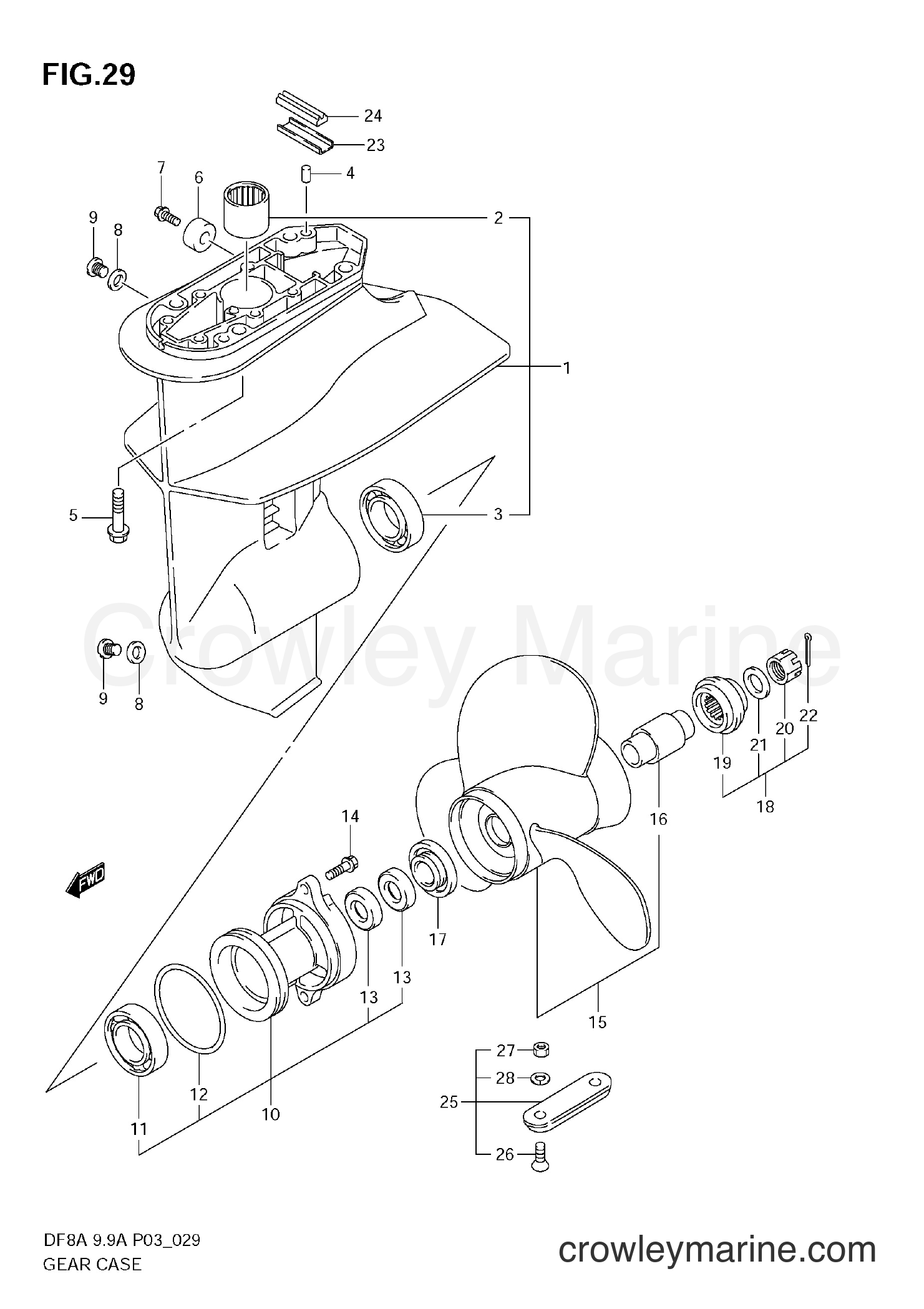

2011 Four-Stroke Outboard 9.9 - DF9.9A GEAR CASE diagram
-15%
1
Suzuki Marine
CASE ASSY,GEAR55100-99J31-0EP
Required: 1
CASE, GEAR
Supersedes: 55100-99J10-0EP
$335.67
You save $59.24
-15%
No longer availableSearch Nationwide Inventory
$18.65
You save $3.29
-15%
$26.47
You save $4.67
-15%
4
Suzuki Marine
PIN09202-06023
Required: 2
PIN, KNOCK (6X10)
$2.92
You save $0.51
-15%
5
Suzuki Marine
BOLT,8X3009116-08122
Required: 4
BOLT, GEAR CASE (8X30)
$4.98
You save $0.88
-20%
6
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 1
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.29
You save $1.57
-20%
In stock
5+ in stock
$2.96
You save $0.74
-20%
8
Suzuki Marine
GASKET,DRAIN PL59178-97J00
Required: 2
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.86
You save $0.46
-20%
9
Suzuki Marine
PLUG,DRAIN (8X709248-08001
Required: 2
PLUG, DRAIN (8X7.5)
$2.42
You save $0.61
-15%
10
Suzuki Marine
Supersedes to 56120-99J40-0EP56120-99J20-0EP
Required: 1
HOUSING, PROPELLER SHAFT
Supersedes: 56120-99J10-0EP
No longer availableSearch Nationwide Inventory
$69.84
You save $12.33
-15%
10
Suzuki Marine
Supersedes to 56120-99J40-0EP56120-99J20-0EP
Required: 1
HOUSING, PROPELLER SHAFT
No longer availableSearch Nationwide Inventory
$69.84
You save $12.33
-20%
$20.56
You save $5.14
-20%
12
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-57002
Required: 1
.O RING (D:3.5 ID:56.6)
In stock
Only 2 remaining
$2.42
You save $0.61
-20%
12
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-57002
Required: 1
.O RING (D:3.5 ID:56.6)
Supersedes: 09280-57L01
In stock
Only 2 remaining
$2.42
You save $0.61
-20%
13
Suzuki Marine
SEAL,OIL,17X30X09289-17L02
Required: 2
.OIL SEAL (16X30X6)
Supersedes: 09289-17006
In stock
5+ in stock
$7.29
You save $1.82
-20%
14
Suzuki Marine
BOLT29116-93J00
Required: 2
BOLT (6X20)
In stock
Only 2 remaining
$2.34
You save $0.58
-15%
15
Suzuki Marine
PROP15/20A 3X9.58100-89L00-019
Required: 1
PROPELLER, 3X9-1/4X7 (M701)
Supersedes: 58100-93703-019
$178.43
You save $31.49
-20%
15
Suzuki Marine
PROP15/20A 3X9.58100-89L20-019
Required: 1
PROPELLER, 3X9-1/4X9 (M901)
Supersedes: 58100-94J00-019
$167.95
You save $41.97
-15%
15
Suzuki Marine
PROP15/20A 3X9.58100-90L60-019
Required: 1
PROPELLER, 3X9-1/4X10 (M1001)
Supersedes: 58100-93733-019
$178.43
You save $31.49
-15%
15
Suzuki Marine
Supersedes to 58100-89L40-01958100-93743-019
Required: 1
PROPELLER, 3X9-1/4X11 (M1101)
No longer availableSearch Nationwide Inventory
$133.34
You save $23.53
-15%
15
Suzuki Marine
PROPELLER (3X2358100-90L41-019
Required: 1
PROPELLER, 3X9-1/4X8 (M811)
Supersedes: 58100-91D00-019
$174.49
You save $30.79
-15%
15
Suzuki Marine
PROP15/20A 3X9.58100-90L50-019
Required: 1
PROPELLER, 3X9-1/4X9 (M911)
Supersedes: 58100-93763-019
$178.43
You save $31.49
-15%
15
Suzuki Marine
PROP15/20A 3X9.58100-90L60-019
Required: 1
PROPELLER, 3X9-1/4X10 (M1011)
Supersedes: 58100-93773-019
$178.43
You save $31.49
-15%
16
Suzuki Marine
Supersedes to 58120-89L0058120-93701
Required: 1
.BUSH, PROPELLER
No longer availableSearch Nationwide Inventory
$25.28
You save $4.46
-15%
17
Suzuki Marine
Supersedes to 57632-94J0057632-93902
Required: 1
STOPPER, PROPELLER BUSH
No longer availableSearch Nationwide Inventory
$27.47
You save $4.85
-15%
18
Suzuki Marine
PROP HRDW DF8A/57630-99J01
Required: 1
NUT KIT, PROPELLER
Supersedes: 57630-99J00
$39.03
You save $6.89
-15%
19
Suzuki Marine
SPACER,PROPELLE57633-939L0
Required: 1
.SPACER, PROPELLER NUT
Supersedes: 57633-93901
$23.66
You save $4.18
-20%
In stock
Only 1 remaining
$9.46
You save $2.36
-20%
21
Suzuki Marine
WASHER09160-12066
Required: 1
.WASHER (12.5X22X2.5)
In stock
Only 2 remaining
$1.78
You save $0.45
-20%
22
Suzuki Marine
PIN09204-02004
Required: 1
.PIN, COTTER
In stock
Only 4 remaining
$1.20
You save $0.30
-15%
23
Suzuki Marine
CORE,EXHAUST SE55331-99J00
Required: 1
CORE, EXHAUST SEAL
No longer availableSearch Nationwide Inventory
$5.00
You save $0.88
-15%
24
Suzuki Marine
RUBBER,EXHAUST55332-99J00
Required: 1
RUBBER, EXHAUST SEAL
No longer availableSearch Nationwide Inventory
$6.03
You save $1.06
-20%
25
Suzuki Marine
ZINC ASSY PROTE55300-95500
Required: 1
ZINC ASSY, PROTECTION
In stock
Only 2 remaining
$14.48
You save $3.62
-20%
26
Suzuki Marine
Screw (M8 X 40)09126-06006
Required: 2
.SCREW (6X20)
In stock
Only 5 remaining
$1.72
You save $0.43
-20%
In stock
Only 4 remaining
$1.64
You save $0.41
-15%
$1.47
You save $0.26
-15%
29
Suzuki Marine
CONNECTOR, FLUS17917-87L00
Required: 1
CONNECTOR, FLUSH WATER
$9.80
You save $1.73
-20%
30
Suzuki Marine
MAGNESIUM ANODE55321-87J11
Required: 1
ANODE (MAGNESIUM)
Supersedes: 55321-87J10
$11.11
You save $2.78
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
