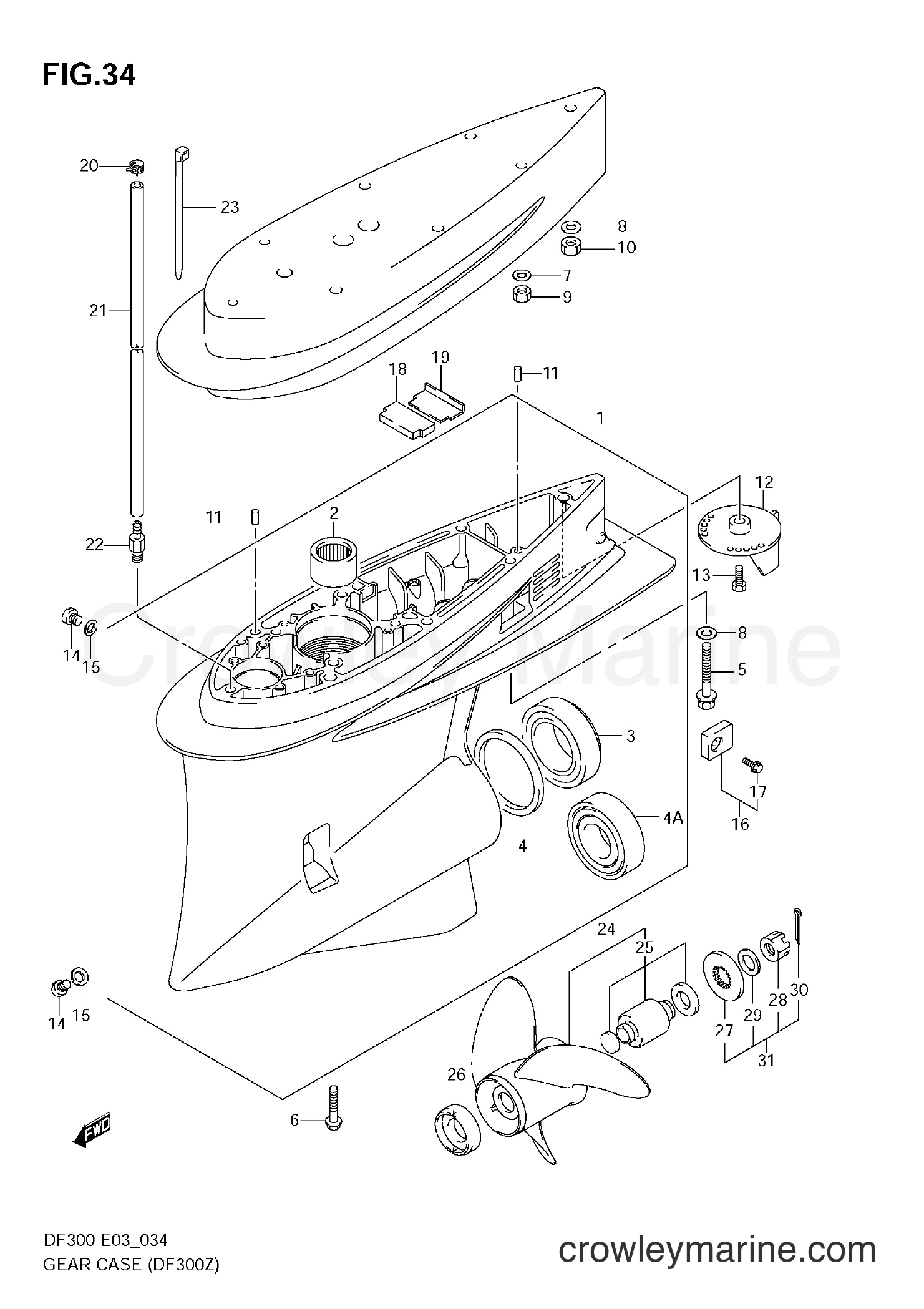

2009 Four-Stroke Outboard 300 - DF300Z GEAR CASE (DF300Z) diagram
-15%
1
Suzuki Marine
CASE,GEAR(BLACK55110-98J21-0EP
Required: 1
CASE, GEAR (BLACK)
No longer availableSearch Nationwide Inventory
$1923.57
You save $339.45
-15%
2
Suzuki Marine
BEARING,36X51X309263-36004
Required: 1
.BEARING, PINION (36X51X32)
$270.56
You save $47.75
-15%
3
Suzuki Marine
BEARING08113-62100
Required: 1
.BEARING, REV GEAR
$61.97
You save $10.94
-15%
4
Suzuki Marine
BEARING09267-50001
Required: 1
.SPACER, REV GEAR
Supersedes: 56141-98J00
$159.43
You save $28.14
-15%
4
Suzuki Marine
BEARING09267-50001
Required: 1
.BEARING, REVERSE GEAR
$159.43
You save $28.14
-20%
$10.82
You save $2.70
-20%
6
Suzuki Marine
BOLT,10X5509116-10150
Required: 6
BOLT (10X55)
$15.73
You save $3.93
-15%
7
Suzuki Marine
WASHER,10.5X19X09160-10141
Required: 6
WASHER (10.5X19X2)
$3.59
You save $0.63
-20%
8
Suzuki Marine
WASHER09160-12066
Required: 1
WASHER (12.5X22X2.5)
In stock
Only 1 remaining
$1.78
You save $0.45
-20%
9
Suzuki Marine
Nut09140-10031
Required: 6
NUT, EXTENSION BOLT NO.1 (10X14)
Supersedes: 29141-93J20
$2.02
You save $0.51
-20%
10
Suzuki Marine
Nut09159-12014
Required: 1
NUT, EXTENSION BOLT NO.2 (12X17)
$4.98
You save $1.24
-15%
11
Suzuki Marine
PIN09202-08006
Required: 2
PIN, GEAR CASE KNOCK
$2.69
You save $0.47
-20%
In stock
Only 1 remaining
$111.95
You save $27.64
-20%
13
Suzuki Marine
BOLT,8X2209116-08137
Required: 1
BOLT, TRIM TAB (8X22)
In stock
Only 1 remaining
$7.34
You save $1.83
-20%
14
Suzuki Marine
Drain Plug55128-93J10
Required: 2
PLUG, DRAIN
Supersedes: 55128-93J00
In stock
Only 3 remaining
$5.42
You save $1.35
-20%
15
Suzuki Marine
GASKET,DRAIN PL09168-10038
Required: 2
GASKET, DRAIN PLUG
Supersedes: 09168-10034
In stock
5+ in stock
$2.21
You save $0.55
-20%
16
Suzuki Marine
ZINC SET,PROTEC55320-95311
Required: 2
ZINC, PROTECTION
In stock
Only 3 remaining
$7.46
You save $1.86
-20%
17
Suzuki Marine
BOLT,6X1509116-06094
Required: 2
BOLT, ZINC PROTECTION
In stock
Only 2 remaining
$2.09
You save $0.52
-15%
18
Suzuki Marine
RUBBER,EXHAUST55332-98J01
Required: 1
RUBBER, EXHAUST SEAL
Supersedes: 55332-98J00
$6.48
You save $1.14
-15%
19
Suzuki Marine
PLATE,EXHAUST S55333-98J00
Required: 1
PLATE, EXHAUST SEAL
$15.38
You save $2.71
-20%
20
Suzuki Marine
Clip09401-08412
Required: 1
CLIP, SPEEDOMETER HOSE
$1.91
You save $0.48
-20%
21
Suzuki Marine
Hose09355-40805-00B
Required: 1
HOSE, SPEEDOMETER
$29.52
You save $7.38
-20%
22
Suzuki Marine
Nipple09362-09008
Required: 1
NIPPLE, SPEEDOMETER
In stock
Only 1 remaining
$2.67
You save $0.67
-15%
23
Suzuki Marine
Clamp09407-10404
Required: 1
CLAMP, SPEEDOMETER HOSE
$2.69
You save $0.48
-15%
24
Suzuki Marine
SSPROPCRV63X16X990C0-0080L-185
Required: 1
PROPELLER (3X16X18.5)
Supersedes: 58200-93JA0
$609.77
You save $107.61
-15%
24
Suzuki Marine
SSPRPCR 3X15X21990C0-0083L-21P
Required: 1
PROPELLER (3X14.75X21)
Supersedes: 58200-96JC0
No longer availableSearch Nationwide Inventory
$520.34
You save $91.82
-15%
24
Suzuki Marine
SSPRPCR 3X14.75990C0-0084L-23P
Required: 1
PROPELLER (3X14.75X23)
Supersedes: 58200-96JD0
$657.25
You save $115.98
24
Suzuki Marine
PROPELLER (3X14.5X25)58200-96JE0
Required: 1
PROPELLER (3X14.5X25)
Price unavailable
24
Suzuki Marine
PROPELLER (3X14.5X27)58200-96JF0
Required: 1
PROPELLER (3X14.5X27)
Price unavailable
-15%
24
Suzuki Marine
Supersedes to 990C0-0080L-20P99105-0080L-20P
Required: 1
PROPELLER (3X16X20)
Supersedes: 58200-93JB0
No longer availableSearch Nationwide Inventory
$457.26
You save $80.69
-15%
24
Suzuki Marine
Supersedes to 990C0-0080L-21599105-0080L-215
Required: 1
PROPELLER (3X16X21.5)
Supersedes: 58200-93JC0
No longer availableSearch Nationwide Inventory
$457.26
You save $80.69
-15%
24
Suzuki Marine
SS PROP 3X16X23990C0-0081L-23P
Required: 1
PROPELLER (3X16X23)
Supersedes: 58200-93JD0
$609.77
You save $107.61
-15%
24
Suzuki Marine
SSPROPCRDFV63X1990C0-0080L-17P
Required: 1
PROPELLER (3X16X17)
Supersedes: 58200-93JE0
$609.77
You save $107.61
-15%
24
Suzuki Marine
SSPROPCRV63X16X990C0-0080L-245
Required: 1
PROPELLER (3X16X24.5)
Supersedes: 58200-93JF0
No longer availableSearch Nationwide Inventory
$466.85
You save $82.39
24
Suzuki Marine
PROPELLER (3X16X26)58200-93JG0
Required: 1
PROPELLER (3X16X26)
Price unavailable
24
Suzuki Marine
PROPELLER (3X15.5X17)58200-96JA0
Required: 1
PROPELLER (3X15.5X17)
Price unavailable
24
Suzuki Marine
PROPELLER (3X15.25X19)58200-96JB0
Required: 1
PROPELLER (3X15.25X19)
Price unavailable
-15%
25
Suzuki Marine
BUSH SET,PROPEL58105-93J00
Required: 1
.BUSH SET, PROPELLER
In stock
Only 1 remaining
$128.95
You save $23.00
-20%
26
Suzuki Marine
STOPPER,PROPELL57632-93J11
Required: 1
STOPPER, PROPELLER BUSH
$104.95
You save $26.79
-15%
27
Suzuki Marine
SPACER,NUT(T:6.57633-87D40
Required: 1
SPACER, PROPELLER NUT
Supersedes: 57633-87D30
$20.44
You save $3.61
-20%
In stock
Only 1 remaining
$9.46
You save $2.36
-20%
In stock
Only 2 remaining
$3.64
You save $0.91
-20%
In stock
5+ in stock
$2.41
You save $0.60
-20%
31
Suzuki Marine
PROP HDWR V-6 M57630-92E10
Required: 1
KIT, PROPELLER NUT
Supersedes: 57630-92E00
$29.37
You save $7.34
-20%
32
Suzuki Marine
L.U.SEAL KIT 3025700-98J01
Required: 1
KIT, GEAR CASE SEALING
Supersedes: 25700-98J00
$29.37
You save $7.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
