All diagrams for this model

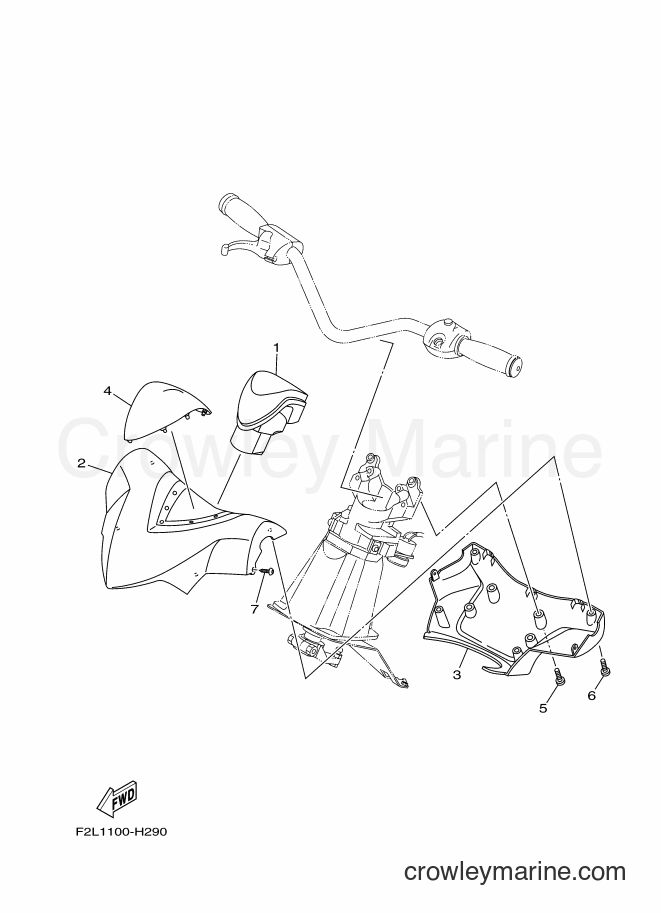

2012 WaveRunner VX1100B-L - VX1100B-L (F2NR) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX1100B-L (F2NR) [010] - STEERING 2
Change View:
-15%
PAD 1
1
Yamaha Motors
PAD 1F1K-U156E-01-00
Required: 1
PAD 1
Cross Ship
Leaves in 2-5 days
$224.39
$190.73
You save $33.66
More details
-15%
Steering Pad
3
Yamaha Motors
Steering PadF1K-U143E-01-00
Required: 1
PAD, STEERING 2
Cross Ship
Leaves in 2-5 days
$72.41
$61.55
You save $10.86
More details
-15%
PAD COVER
4
Yamaha Motors
PAD COVERF1K-U142D-00-00
Required: 1
COVER, PAD
Cross Ship
Leaves in 2-5 days
$94.85
$80.62
You save $14.23
More details
-15%
Tapping Screw
7
Yamaha Motors
Tapping Screw90167-04003-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.49
$1.27
You save $0.22
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
