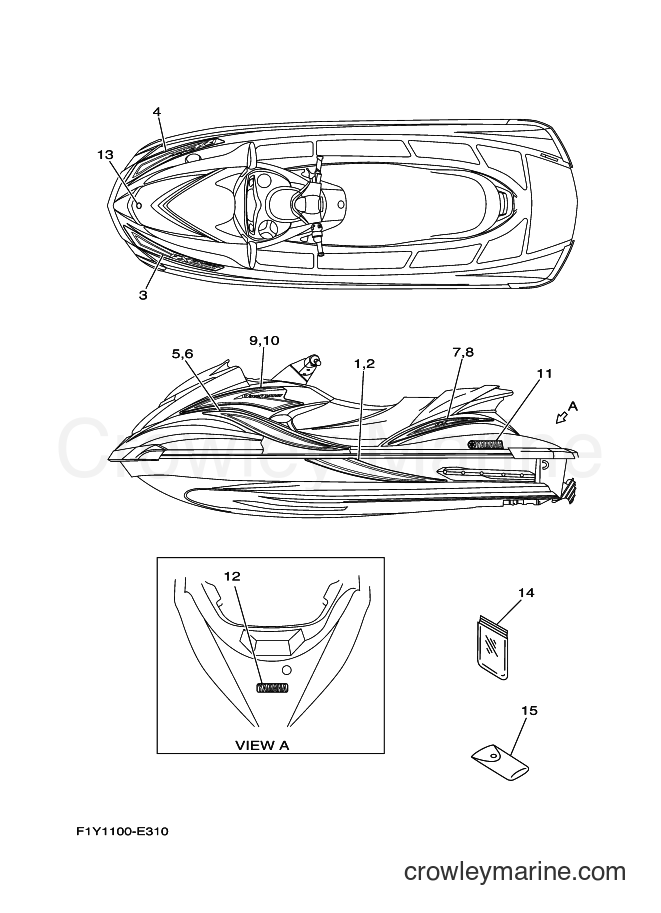

2006 WaveRunner FX1000-E - FX1000-E (F1Y4) [020] GRAPHICS diagram
![Yamaha Motors FX1000-E (F1Y4) [020] - GRAPHICS](https://cdn.crowleymarine.com/yamaha/mH7E0uBn.png)
-15%
1
Yamaha Motors
Graphic 1F1Y-U417B-10-00
Required: 1
GRAPHIC 1 (LH)
No longer availableSearch Nationwide Inventory
$18.69
You save $3.30
-15%
1
Yamaha Motors
Graphic 1F1Y-U417B-00-00
Required: 1
GRAPHIC 1 (LH)
No longer availableSearch Nationwide Inventory
$20.39
You save $3.60
-15%
2
Yamaha Motors
GRAPHIC 2F1Y-U417C-00-00
Required: 1
GRAPHIC 2 (RH)
No longer availableSearch Nationwide Inventory
$20.39
You save $3.60
-15%
2
Yamaha Motors
GRAPHIC 2F1Y-U417C-10-00
Required: 1
GRAPHIC 2 (RH)
No longer availableSearch Nationwide Inventory
$18.69
You save $3.30
-15%
3
Yamaha Motors
GRAPHIC 3F1Y-U417D-00-00
Required: 1
GRAPHIC 3 (LH)
No longer availableSearch Nationwide Inventory
$134.29
You save $23.70
-15%
3
Yamaha Motors
GRAPHIC 3F1Y-U417D-10-00
Required: 1
GRAPHIC 3 (LH)
No longer availableSearch Nationwide Inventory
$21.24
You save $3.75
-15%
4
Yamaha Motors
GraphicF1Y-U417E-10-00
Required: 1
GRAPHIC 4 (RH)
No longer availableSearch Nationwide Inventory
$11.47
You save $2.02
-15%
4
Yamaha Motors
GraphicF1Y-U417E-00-00
Required: 1
GRAPHIC 4 (RH)
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
5
Yamaha Motors
GRAPHIC 5F1Y-U417F-10-00
Required: 1
GRAPHIC 5 (LH)
No longer availableSearch Nationwide Inventory
$23.79
You save $4.20
-15%
5
Yamaha Motors
GRAPHIC 5F1Y-U417F-00-00
Required: 1
GRAPHIC 5 (LH)
No longer availableSearch Nationwide Inventory
$24.64
You save $4.35
-15%
6
Yamaha Motors
Graphic 6F1Y-U417G-10-00
Required: 1
GRAPHIC 6 (RH)
No longer availableSearch Nationwide Inventory
$23.79
You save $4.20
-15%
6
Yamaha Motors
Graphic 6F1Y-U417G-00-00
Required: 1
GRAPHIC 6 (RH)
No longer availableSearch Nationwide Inventory
$24.64
You save $4.35
-15%
7
Yamaha Motors
GraphicF1Y-U417H-10-00
Required: 1
GRAPHIC 7 (LH)
No longer availableSearch Nationwide Inventory
$14.44
You save $2.55
-15%
7
Yamaha Motors
GraphicF1Y-U417H-00-00
Required: 1
GRAPHIC 7 (LH)
No longer availableSearch Nationwide Inventory
$13.17
You save $2.32
-15%
8
Yamaha Motors
Graphic 8F1Y-U417J-00-00
Required: 1
GRAPHIC 8 (RH)
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
-15%
8
Yamaha Motors
Graphic 8F1Y-U417J-10-00
Required: 1
GRAPHIC 8 (RH)
No longer availableSearch Nationwide Inventory
$14.87
You save $2.62
-15%
9
Yamaha Motors
GRAPHICF1Y-U417K-10-00
Required: 1
GRAPHIC 9 (LH)
No longer availableSearch Nationwide Inventory
$20.39
You save $3.60
-15%
9
Yamaha Motors
GRAPHICF1Y-U417K-00-00
Required: 1
GRAPHIC 9 (LH)
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-15%
10
Yamaha Motors
GRAPHIC BF1Y-U417L-10-00
Required: 1
GRAPHIC B (RH)
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-15%
10
Yamaha Motors
GRAPHIC BF1Y-U417L-00-00
Required: 1
GRAPHIC B (RH)
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-15%
11
Yamaha Motors
YAMAHA EMBLEMF0V-U411C-10-00
Required: 2
EMBLEM, YAMAHA
$150.44
You save $26.55
-15%
12
Yamaha Motors
YAMAHA EMBLEMF1B-U411C-02-00
Required: 1
EMBLEM, YAMAHA
$19.54
You save $3.45
-15%
13
Yamaha Motors
Tuning Fork EmblemF1K-U411H-00-00
Required: 1
EMBLEM, TUNING FORK
In stock
Only 1 remaining
$24.27
You save $4.28
-15%
14
Yamaha Motors
Tool SetF1B-65986-03-00
Required: 1
TOOL SET
Supersedes: F1B-65986-00-00
No longer availableSearch Nationwide Inventory
$45.04
You save $7.95
-15%
15
Yamaha Motors
VINYL BAGEU0-65901-03-00
Required: 1
TOOL BAG
Supersedes: EU0-65901-01-00
$12.32
You save $2.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
