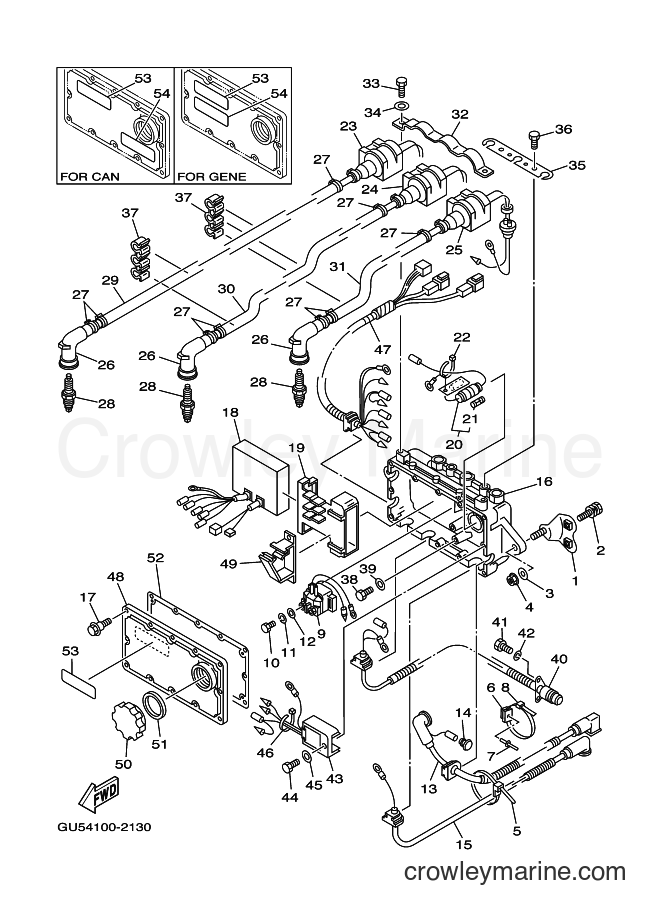

2002 WaveRunner SV1200-A - SV1200-A (GU55) [01A] ELECTRICAL 1 diagram
![Yamaha Motors SV1200-A (GU55) [01A] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/RbYw4qeR.png)
-15%
1
Yamaha Motors
ELECTRIC BRACKETF0E-6815D-00-00
Required: 2
BRACKET, ELECTRIC BOX
No longer availableSearch Nationwide Inventory
$13.17
You save $2.32
-15%
2
Yamaha Motors
Bolt With Washer90119-06940-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06959-00
No longer availableSearch Nationwide Inventory
$7.64
You save $1.35
-15%
$2.08
You save $0.37
-20%
4
Yamaha Motors
Flange Nut95780-08300-00
Required: 2
NUT, FLANGE
Supersedes: 9572R-08300-00
In stock
5+ in stock
$9.99
You save $2.50
-50%
In stock
Only 4 remaining
$3.06
You save $3.06
-15%
6
Yamaha Motors
Clamp90600-91736-00
Required: 1
CLAMP COMP.
Supersedes: 90600-917U4-00
$8.07
You save $1.42
-15%
$6.06
You save $1.07
-50%
In stock
Only 4 remaining
$3.06
You save $3.06
-50%
9
Yamaha Motors
Starter Relay Assembly68N-81940-00-00
Required: 1
STARTER RELAY ASSY
In stock
Only 1 remaining
$57.25
You save $57.25
-15%
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
-20%
11
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
No longer availableSearch Nationwide Inventory
$55.24
You save $9.75
-15%
14
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 1
COVER, LEAD WIRE
$2.80
You save $0.50
-15%
$76.07
You save $13.42
-15%
16
Yamaha Motors
Housing65U-8552A-00-94
Required: 1
HOUSING
Supersedes: 65U-8552A-00-5B
No longer availableSearch Nationwide Inventory
$156.39
You save $27.60
-50%
In stock
Only 1 remaining
$6.50
You save $6.50
-15%
18
Yamaha Motors
C.D.I. UNIT ASSY65U-85540-00-00
Required: 1
C.D.I. UNIT ASSY
No longer availableSearch Nationwide Inventory
$456.44
You save $80.55
-15%
No longer availableSearch Nationwide Inventory
$20.39
You save $3.60
-15%
20
Yamaha Motors
Fuse Holder Assembly65U-82150-00-00
Required: 1
FUSE HOLDER ASSY
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-20%
21
Yamaha Motors
Fuse (10A)1E6-82151-00-00
Required: 1
. FUSE
Supersedes: 6G1-82151-00-00
In stock
Only 1 remaining
$6.79
You save $1.70
-20%
22
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
23
Yamaha Motors
Ignition Coil Assembly65U-85570-00-00
Required: 1
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$155.54
You save $27.45
-15%
24
Yamaha Motors
Ignition Coil Assembly66G-85570-10-00
Required: 1
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$134.29
You save $23.70
-15%
25
Yamaha Motors
Ignition Coil Assembly66G-85570-20-00
Required: 1
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$137.69
You save $24.30
-50%
In stock
Only 3 remaining
$33.24
You save $33.24
-20%
27
Yamaha Motors
Clamp90465-10098-00
Required: 9
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
28
Yamaha Motors
Spark Plug (NGK BR8HS)NGK-BR8HS-00-00
Required: 3
PLUG, SPARK (NGK BR8HS)
Supersedes: 94702-00195-00
No longer availableSearch Nationwide Inventory
$2.21
You save $0.39
-20%
28
Yamaha Motors
BR8HS NGK SCREW TOPBR8-HS000-00-00
Required: 3
PLUG, SPARK(51X) NGK BR8HS
Supersedes: 94709-00195-00
In stock
5+ in stock
$4.00
You save $1.00
-15%
29
Yamaha Motors
CORD TUBE63M-82351-00-00
Required: 1
TUBE, CORD 2
Supersedes: 6R7-82352-00-00
$11.89
You save $2.10
-15%
30
Yamaha Motors
CORD TUBE63M-82351-00-00
Required: 1
TUBE, CORD
Supersedes: 6R7-82351-00-00
$11.89
You save $2.10
-15%
No longer availableSearch Nationwide Inventory
$2.12
You save $0.37
-15%
$33.14
You save $5.85
-15%
$5.09
You save $0.90
-20%
34
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER
Supersedes: 92995-08600-00
In stock
Only 5 remaining
$2.24
You save $0.56
-15%
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-15%
$6.79
You save $1.20
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-20%
39
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
40
Yamaha Motors
Thermo Switch Assembly65U-82560-11-00
Required: 1
THERMO SWITCH ASSY
Supersedes: 65U-82560-10-00
No longer availableSearch Nationwide Inventory
$101.99
You save $18.00
-20%
In stock
5+ in stock
$2.21
You save $0.55
-20%
42
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
43
Yamaha Motors
Rectifier & Regulator Assembly6H2-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
In stock
Only 1 remaining
$107.95
You save $27.04
-20%
44
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
45
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
46
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
47
Yamaha Motors
Wire Lead Extension66G-82553-00-00
Required: 1
EXTENSION, WIRE LEAD
No longer availableSearch Nationwide Inventory
$186.14
You save $32.85
-15%
No longer availableSearch Nationwide Inventory
$24.64
You save $4.35
-15%
$5.94
You save $1.05
-15%
$12.32
You save $2.17
-50%
In stock
Only 1 remaining
$5.50
You save $5.50
-15%
52
Yamaha Motors
Terminal Gasket65U-81921-00-00
Required: 1
GASKET, TERMINAL
$58.22
You save $10.27
-15%
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
$6.79
You save $1.20
-15%
No longer availableSearch Nationwide Inventory
$2.63
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
