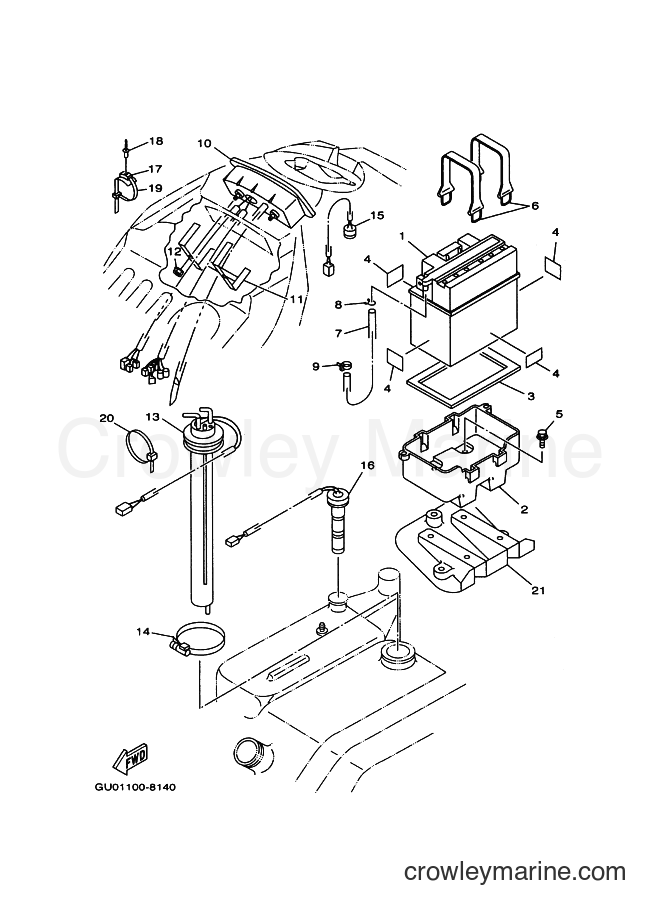

1998 WaveRunner GP800W - GP800W (GU02) [010] ELECTRICAL 2 diagram
![Yamaha Motors GP800W (GU02) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/vR0MjxUT.png)
1
Yamaha Motors
BATTERYEU0-82110-90
Required: 1
BATTERY
Price unavailable
-15%
2
Yamaha Motors
Battery CaseGP7-U8211-00-00
Required: 1
CASE, BATTERY
No longer availableSearch Nationwide Inventory
$11.47
You save $2.02
-15%
3
Yamaha Motors
Battery PadF1S-U8221-00-00
Required: 1
PAD, BATTERY 1
Supersedes: EU0-U8221-00-00
$6.93
You save $1.22
-15%
In stock
Only 1 remaining
$2.54
You save $0.45
-15%
5
Yamaha Motors
Bolt With Washer90119-069US-00
Required: 4
BOLT, WITH WASHER
$7.79
You save $1.38
-15%
6
Yamaha Motors
Battery BandEU0-U821D-00-00
Required: 2
BAND, BATTERY
$12.13
You save $2.14
-15%
No longer availableSearch Nationwide Inventory
$14.44
You save $2.55
-15%
$5.19
You save $0.92
-20%
9
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11829-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
No longer availableSearch Nationwide Inventory
$311.09
You save $54.90
-15%
10
Yamaha Motors
Meter Assembly (MPH)GP7-6820A-06-00
Required: 1
METER ASSY
Supersedes: GP7-6820A-02-00
No longer availableSearch Nationwide Inventory
$833.84
You save $147.15
-15%
11
Yamaha Motors
METER BRACKETGP7-68238-10-00
Required: 1
BRACKET METER
Supersedes: GP7-68238-01-00
No longer availableSearch Nationwide Inventory
$48.44
You save $8.55
-50%
In stock
Only 5 remaining
$0.74
You save $0.74
-15%
13
Yamaha Motors
GP7-U824B-05-00GP7-U824B-03-00
Required: 1
SENDER, FUEL
Supersedes: GP7-U824B-02-00
No longer availableSearch Nationwide Inventory
$569.49
You save $100.50
-20%
14
Yamaha Motors
HOSE BAND 6290601-162U5-00
Required: 1
BAND, HOSE 62
$9.78
You save $2.45
-15%
No longer availableSearch Nationwide Inventory
$67.14
You save $11.85
-15%
No longer availableSearch Nationwide Inventory
$110.49
You save $19.50
-15%
17
Yamaha Motors
Clamp90600-91736-00
Required: 6
BASE, CLAMP
Supersedes: 90600-917U4-00
$8.07
You save $1.42
-15%
18
Yamaha Motors
BLIND RIVET90267-48802-00
Required: 6
RIVET, BLIND
Supersedes: 90267-48925-00
$6.06
You save $1.07
-15%
19
Yamaha Motors
Band90601-20009-00
Required: 4
NYLON CLIP 1
Supersedes: 90601-20006-00
$5.94
You save $1.05
-15%
20
Yamaha Motors
Band90601-20009-00
Required: 2
NYLON CLIP 1
$5.94
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
