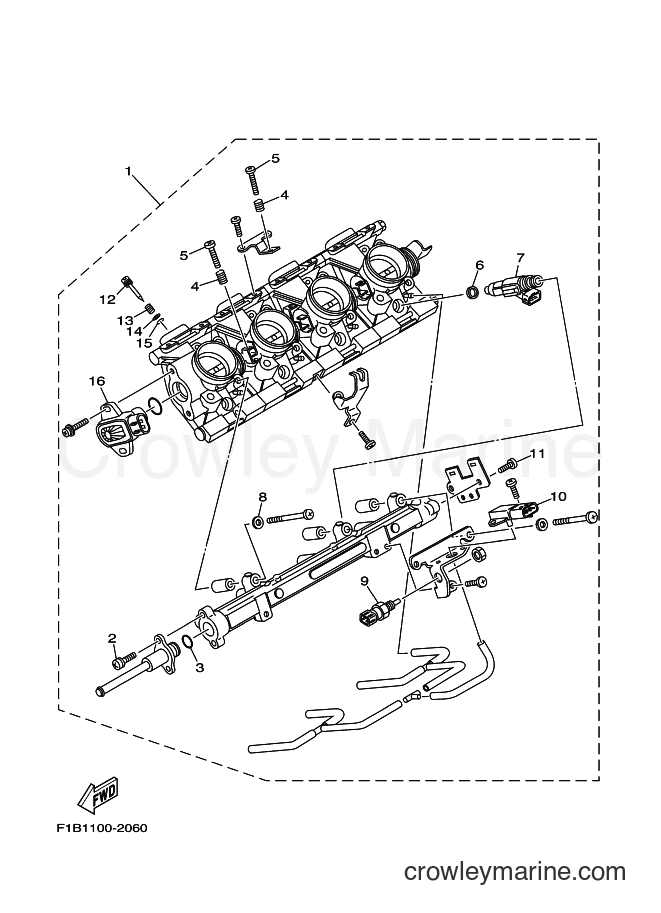

2002 WaveRunner FX1000-A - FX1000-A (F1B2) [010] INJECTION PUMP diagram
![Yamaha Motors FX1000-A (F1B2) [010] - INJECTION PUMP](https://cdn.crowleymarine.com/yamaha/gOlqiCzG.png)
-15%
1
Yamaha Motors
Throttle Body Assembly60E-13750-01-00
Required: 1
THROTTLE BODY ASSY
Supersedes: 60E-13750-00-00
No longer availableSearch Nationwide Inventory
$2471.79
You save $436.20
-15%
$5.94
You save $1.05
-20%
In stock
5+ in stock
$9.59
You save $2.40
-15%
4
Yamaha Motors
Throttle Valve Spring68V-14331-00-00
Required: 7
. SPRING, THROTTLE 2
Supersedes: 3KW-14932-00-00
$9.77
You save $1.72
-15%
5
Yamaha Motors
Throttle Screw69J-14321-00-00
Required: 4
. SCREW, THROTTLE
$12.74
You save $2.25
-15%
$10.62
You save $1.87
-15%
7
Yamaha Motors
Injector Assembly60E-13761-00-00
Required: 4
. INJECTOR ASSY
$195.49
You save $34.50
-15%
$5.94
You save $1.05
-20%
9
Yamaha Motors
Thermosensor65L-85886-00-00
Required: 1
. THERMOSENSOR
PartX Recommends:Yamaha Motors 65L-85886-00-00
In stock
5+ in stock
$63.19
You save $15.80
-15%
10
Yamaha Motors
Pressure Sensor60E-82380-00-00
Required: 1
. SENSOR, PRESSURE
No longer availableSearch Nationwide Inventory
$288.99
You save $51.00
-15%
11
Yamaha Motors
Pan Head Screw97890-05008-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$2.21
You save $0.39
-15%
12
Yamaha Motors
Pilot Screw4BH-14923-00-00
Required: 4
. SCREW, PILOT
$5.09
You save $0.90
-15%
13
Yamaha Motors
Air Adjustining Spring4BH-14134-00-00
Required: 4
. SPRING, AIR ADJUSTING
$2.54
You save $0.45
-15%
$8.07
You save $1.42
-15%
$8.07
You save $1.42
-15%
16
Yamaha Motors
Throttle Sensor Assembly69J-85885-00-00
Required: 1
. THROTTLE SENSOR ASSY
$156.95
You save $28.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
