All diagrams for this model

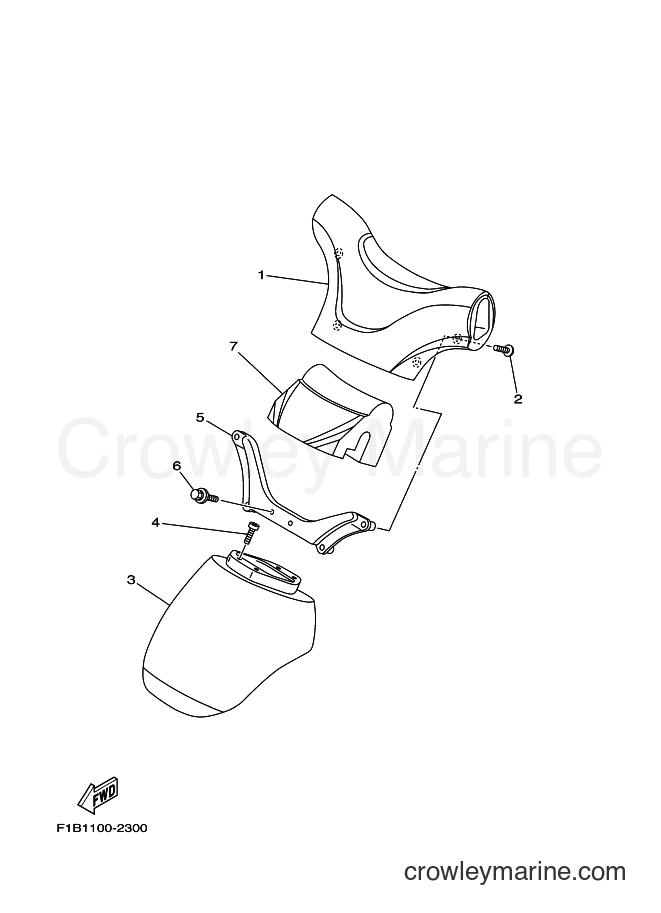

2004 WaveRunner FX1100 - FX1100 (F1S5) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FX1100 (F1S5) [010] - STEERING 2
Change View:
-15%
STEERING PAD (BLACK)
1
Yamaha Motors
STEERING PAD (BLACK)F1B-U143D-00-00
Required: 1
PAD, STEERING 1
Cross Ship
Leaves in 2-5 days
$207.05
$175.99
You save $31.06
More details
-15%
Screw (M8 X 40)
2
Yamaha Motors
Screw (M8 X 40)90149-06910-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Binding Screw
4
Yamaha Motors
Binding Screw90154-06010-00
Required: 4
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$2.49
$2.12
You save $0.37
More details
-15%
STEERING PAD FIXTURE
5
Yamaha Motors
STEERING PAD FIXTUREF1B-U142K-00-00
Required: 1
FIX, STEERING PAD
Cross Ship
Leaves in 2-5 days
$59.15
$50.28
You save $8.87
More details
-15%
Bolt With Washer
6
Yamaha Motors
Bolt With Washer90119-069US-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.17
$7.79
You save $1.38
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
