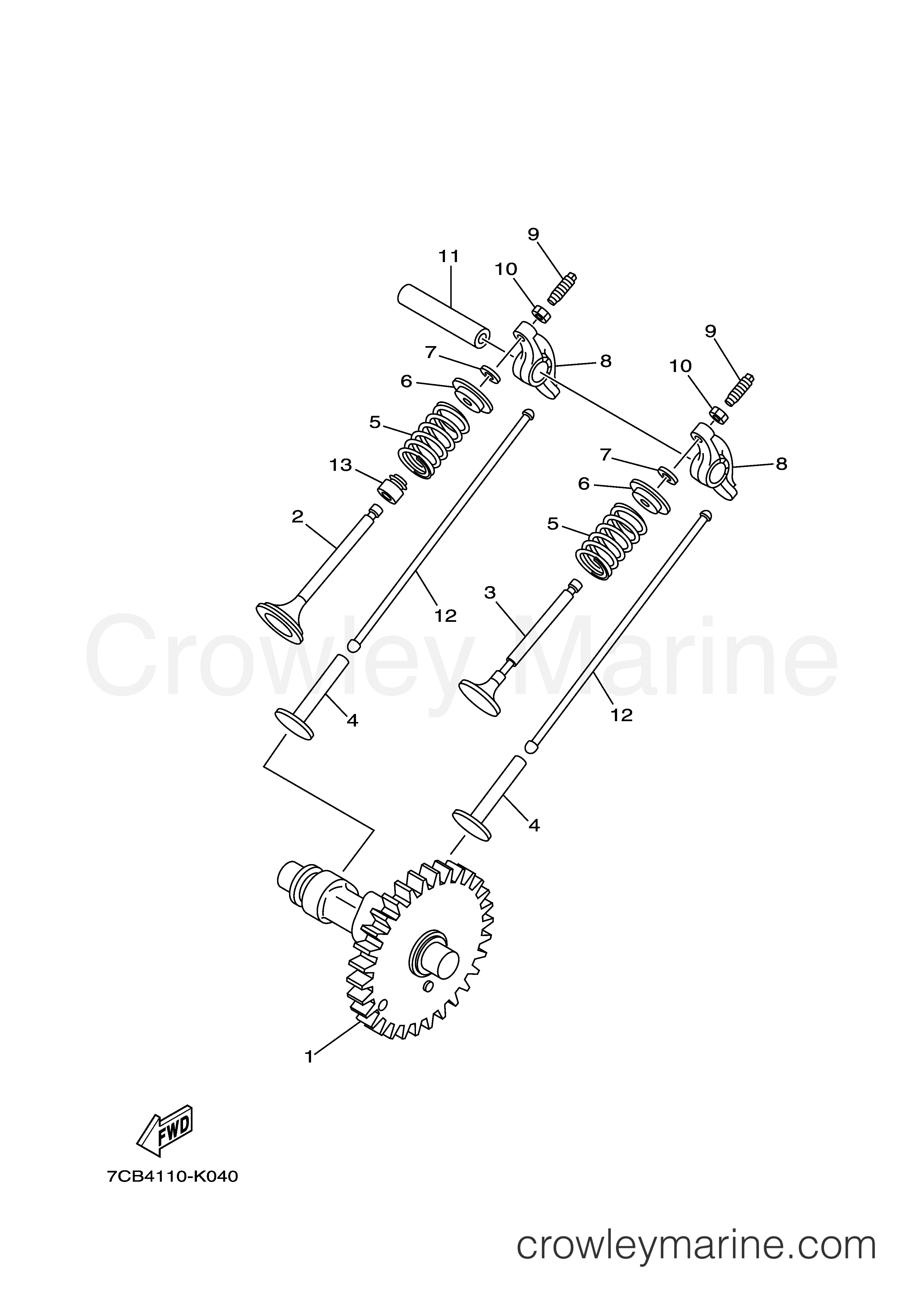

2005 UTV 360 - MZ360K2URGD CAMSHAFT VALVE diagram
-15%
1
Yamaha Motors
Camshaft Assembly7CT-E2170-00-00
Required: 1
CAMSHAFT ASSY 1
Supersedes: 7WG-12170-00-00
$215.89
You save $38.10
2
Yamaha Motors
VALVE, INTAKEJN6-12111-10-00
Required: 1
VALVE, INTAKE
Price unavailable
3
Yamaha Motors
VALVE, EXHAUST7RH-12121-10-00
Required: 1
VALVE, EXHAUST
Price unavailable
4
Yamaha Motors
LIFTER, VALVEJN6-12153-10-00
Required: 2
LIFTER, VALVE
Price unavailable
-15%
5
Yamaha Motors
Compression Spring90501-264A9-00
Required: 2
SPRING, COMPRESSION
$7.22
You save $1.27
-15%
6
Yamaha Motors
Valve Spring Retainer7CT-E2117-00-00
Required: 2
RETAINER, VALVE SPRING
Supersedes: J38-12117-01-00
$5.94
You save $1.05
-15%
7
Yamaha Motors
Valve Spring Retainer Lock7CT-E2118-00-00
Required: 2
LOCK, VALVE SPRING RETAINER
Supersedes: J38-12118-00-00
$6.37
You save $1.12
8
Yamaha Motors
ARM, VALVE ROCKERJN6-12151-10-00
Required: 2
ARM, VALVE ROCKER
Price unavailable
9
Yamaha Motors
SCREW, VALVE ADJUSTING22F-12159-10-00
Required: 2
SCREW, VALVE ADJUSTING
Price unavailable
-50%
In stock
Only 2 remaining
$0.45
You save $0.45
11
Yamaha Motors
SHAFT, ROCKER 2J38-12156-10-00
Required: 1
SHAFT, ROCKER 2
Price unavailable
-15%
12
Yamaha Motors
Valve Push Rod7CT-E2154-01-00
Required: 2
ROD, VALVE PUSH
Supersedes: JN6-12154-00-00
No longer availableSearch Nationwide Inventory
$9.77
You save $1.72
-15%
13
Yamaha Motors
Valve Stem Seal5H0-12119-00-00
Required: 1
SEAL, VALVE STEM
Supersedes: 4G0-12119-00-00
$14.87
You save $2.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
