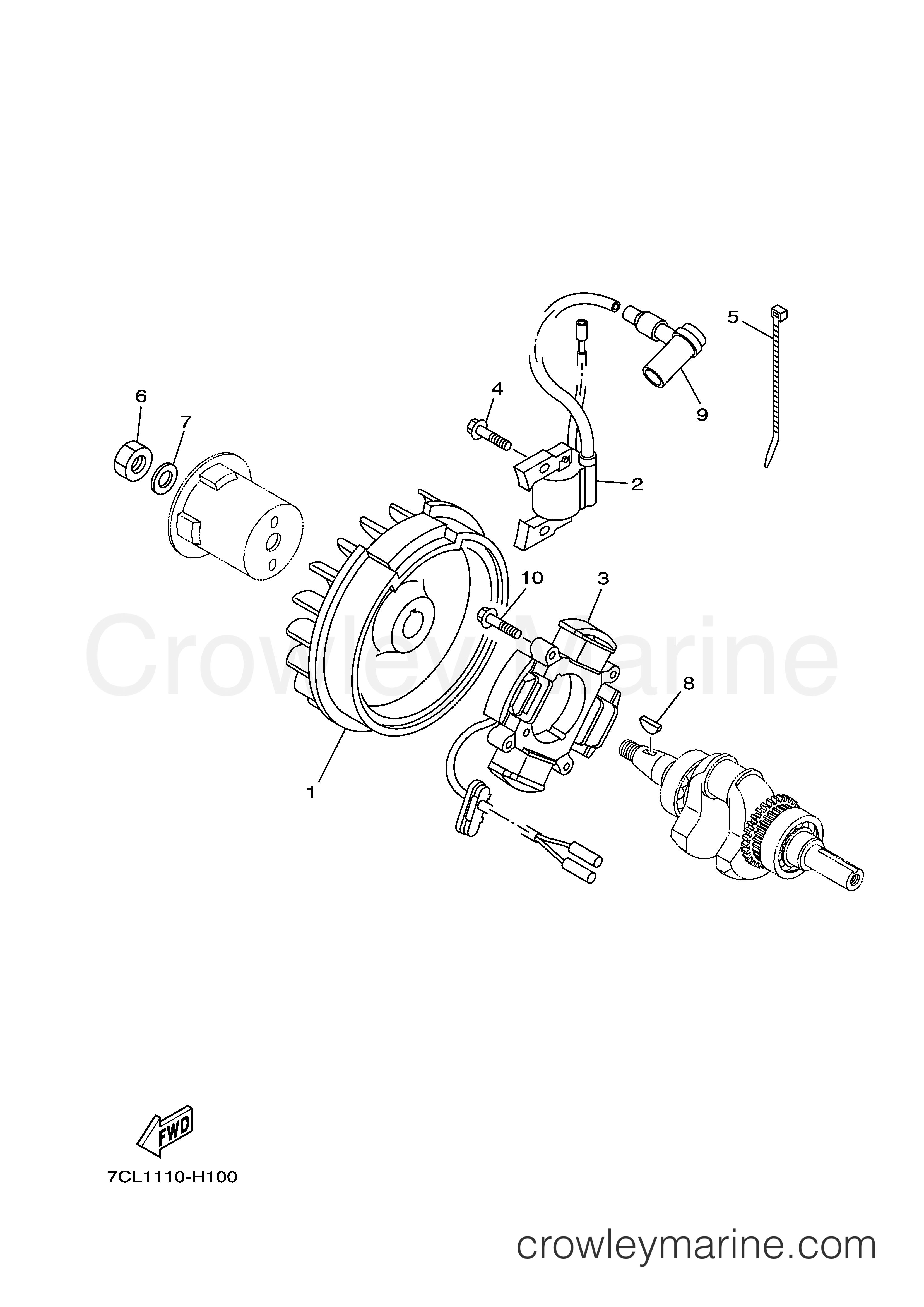

2005 UTV 125 - MZ125A1PU TCI MAGNETO diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

Yamaha Motors

Rotor Assembly7BN-H5650-00-00

Required: 1

ROTOR ASSY

~~$398.99~~

$339.14

You save $59.85

More details

-15%

Yamaha Motors

T.C.I. UNIT ASSY7CN-H5640-02-00

Required: 1

T.C.I. UNIT ASSY

Supersedes: 7CN-H5640-00-00

~~$191.99~~

$163.19

You save $28.80

More details

-15%

Yamaha Motors

Alternator Stator Assembly7BN-H1410-01-00

Required: 1

STATOR ASSY

Supersedes: 7BN-H1410-00-00

~~$182.99~~

$155.54

You save $27.45

More details

-50%

Yamaha Motors

Flange Bolt95817-06020-00

Required: 2

BOLT, FLANGE

Supersedes: 95827-06020-00

In stock

Only 2 remaining

~~$3.50~~

$1.75

You save $1.75

More details

-15%

Yamaha Motors

BINDER7CN-H7188-10-00

Required: 1

BINDER

Supersedes: 7CN-H7188-00-00

~~$1.55~~

$1.32

You save $0.23

-15%

NUT

No longer availableSearch Nationwide Inventory

~~$6.49~~

$5.52

You save $0.97

-15%

WASHER

~~$1.95~~

$1.66

You save $0.29

More details

-15%

Yamaha Motors

Woodruff Key90280-04052-00

Required: 1

KEY, WOODRUFF

Supersedes: 90280-04801-00

~~$9.49~~

$8.07

You save $1.42

More details

-15%

Yamaha Motors

Plug Cap AssemblyJN6-82370-00-00

Required: 1

PLUG CAP ASSY

Supersedes: 7CN-H2370-00-00

~~$16.99~~

$14.44

You save $2.55

-15%

BOLT

No longer availableSearch Nationwide Inventory

~~$1.05~~

$0.89

You save $0.16

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
