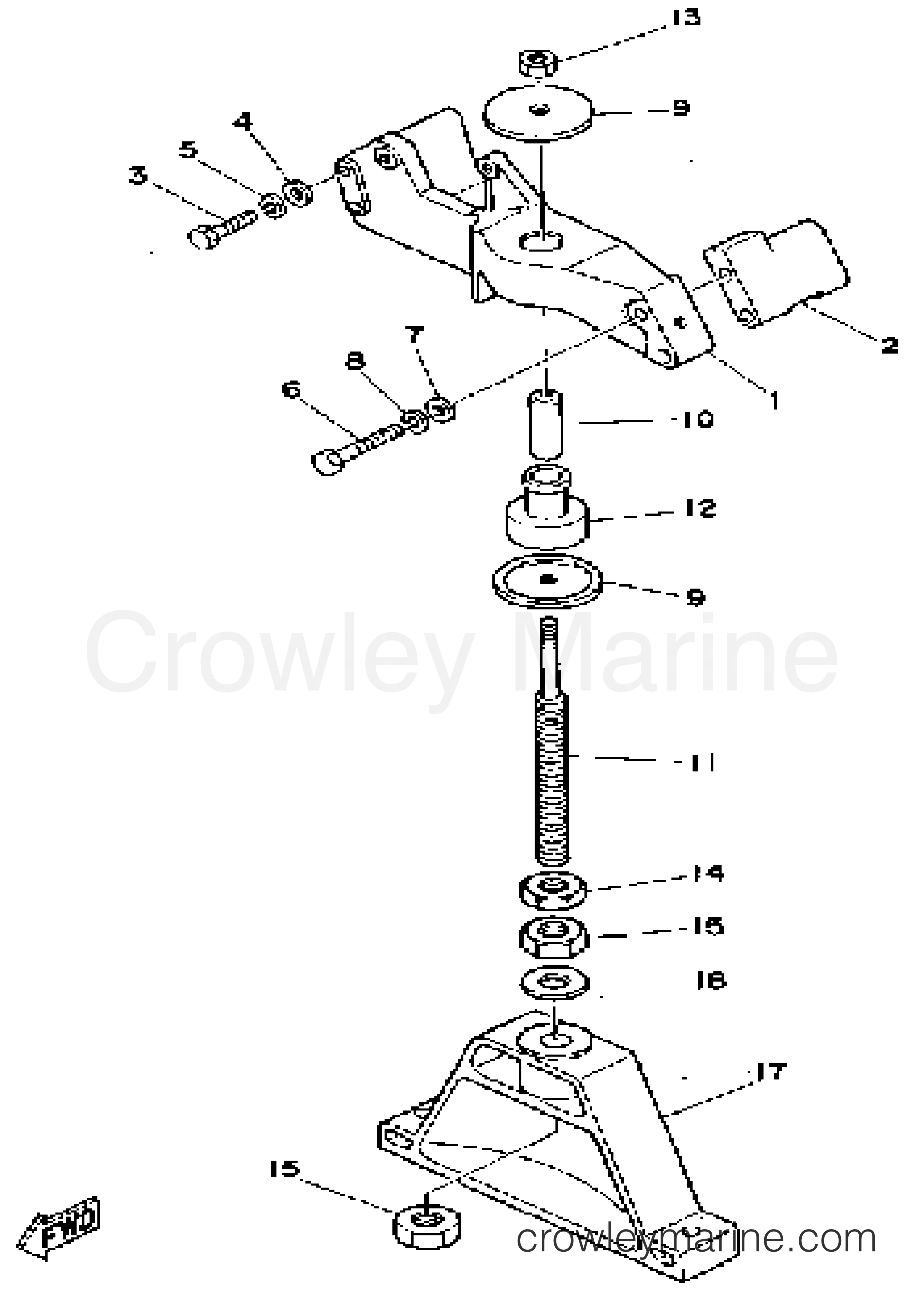

1993 Stern Drive L4 - L4_3.0_ENGINE_EST MOUNTING - BRACKET diagram
-15%
1
Yamaha Motors
UPPER FRONT MOUNTING BRACKETYSC-13281-80-0C
Required: 1
BRACKET, UPPER FRONT MOUNT
No longer availableSearch Nationwide Inventory
$216.74
You save $38.25
-15%
2
Yamaha Motors
Front Mount SpacerYSC-13282-20-0C
Required: 1
SPACER, FRONT MOUNT
No longer availableSearch Nationwide Inventory
$43.34
You save $7.65
-15%
3
Yamaha Motors
Hexagon Bolt (3/8-16X5")YSC-90308-50-0C
Required: 2
BOLT, HEXAGON (3/8-16X5")
No longer availableSearch Nationwide Inventory
$3.95
You save $0.70
-15%
4
Yamaha Motors
FLAT WASHER (5/16")YSC-92300-00-0C
Required: 2
WASHER, FLAT (5/16")
No longer availableSearch Nationwide Inventory
$2.89
You save $0.51
-15%
5
Yamaha Motors
LOCK WASHER (3/8")YSC-93300-00-0C
Required: 2
WASHER, LOCK (3/8")
No longer availableSearch Nationwide Inventory
$2.63
You save $0.47
-15%
6
Yamaha Motors
Hexagon Bolt (7/16-14X6")YSC-90408-60-0C
Required: 2
BOLT, HEXAGON (7/16-14X6")
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
-15%
7
Yamaha Motors
FLAT SPECIAL WASHER (7/16")YSC-92400-00-0C
Required: 2
WASHER, FLAT SPECIAL (7/16") (YSC-10260-40-0C)
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-15%
8
Yamaha Motors
LOCK WASHER (7/16")YSC-93400-00-0C
Required: 2
WASHER, LOCK (7/16")
No longer availableSearch Nationwide Inventory
$1.83
You save $0.32
-15%
9
Yamaha Motors
FRONT MOUNT WASHERYSC-13282-40-0C
Required: 2
WASHER, FRONT MOUNT
No longer availableSearch Nationwide Inventory
$21.24
You save $3.75
-15%
10
Yamaha Motors
front mount collarYSC-13282-10-0C
Required: 1
COLLAR, FRONT MOUNT
No longer availableSearch Nationwide Inventory
$8.07
You save $1.42
-15%
11
Yamaha Motors
Front mount boltYSC-13282-00-0C
Required: 1
BOLT, FRONT MOUNT
No longer availableSearch Nationwide Inventory
$96.89
You save $17.10
-15%
12
Yamaha Motors
FRONT MOUNT BUSHINGYSC-13282-30-0C
Required: 1
BUSHING, FRONT MOUNT
No longer availableSearch Nationwide Inventory
$5.47
You save $0.96
-15%
13
Yamaha Motors
Hexagon Nut (1/2-20 UNF)YSC-95512-00-0C
Required: 1
NUT, HEXAGON (1/2-20 UNF)
No longer availableSearch Nationwide Inventory
$3.87
You save $0.68
-15%
14
Yamaha Motors
Jam Nut, Hexagon (7/8-14 UNF)YSC-95815-00-0C
Required: 1
JAM NUT, HEXAGON (7/8-14 UNF)
No longer availableSearch Nationwide Inventory
$3.39
You save $0.60
-15%
15
Yamaha Motors
Hexagon Nut (7/8-14 UNF)YSC-95810-00-0C
Required: 2
NUT, HEXAGON (7/8-14 UNF)
No longer availableSearch Nationwide Inventory
$3.39
You save $0.60
-15%
16
Yamaha Motors
FLAT WASHER (7/8")YSC-92800-00-0C
Required: 1
WASHER, FLAT (7/8")
No longer availableSearch Nationwide Inventory
$1.91
You save $0.34
-15%
17
Yamaha Motors
Lower Front Mount BRACKETYSC-13281-90-0C
Required: 1
BRACKET, LOWER FRONT MOUNT
No longer availableSearch Nationwide Inventory
$189.54
You save $33.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
