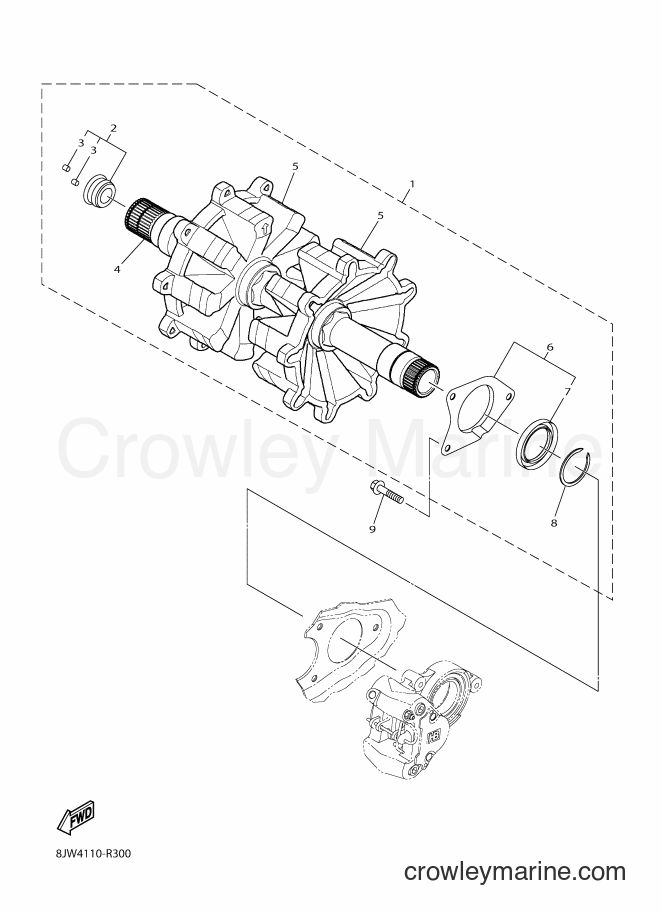

2017 Snowmobile SRV10RD - SRV10RD (8JP4) [010] TRACK DRIVE 1 diagram
![Yamaha Motors SRV10RD (8JP4) [010] - TRACK DRIVE 1](https://cdn.crowleymarine.com/yamaha/8obxUwPw.png)
-15%
1
Yamaha Motors
Front Axle Sub Assembly8JP-G7501-20-00
Required: 1
FRONT AXLE SUB-ASSY
No longer availableSearch Nationwide Inventory
$400.34
You save $70.65
-15%
2
Yamaha Motors
Speed Sensor8JP-H3755-00-00
Required: 1
. SENSOR, SPEED
$61.19
You save $10.80
-15%
$7.22
You save $1.27
-15%
4
Yamaha Motors
FRONT AXLE8JP-G7511-10-00
Required: 1
. AXLE, FRONT
Supersedes: 8JP-G7511-00-00
$255.95
You save $45.04
-15%
5
Yamaha Motors
SPROCKET WHEEL 18JP-G7531-10-00
Required: 2
. WHEEL, SPROCKET 1
No longer availableSearch Nationwide Inventory
$62.89
You save $11.10
-15%
6
Yamaha Motors
Caliper Seal Kit8JP-F5803-01-00
Required: 1
. CALIPER SEAL KIT
Supersedes: 8JP-F5803-00-00
$19.54
You save $3.45
-15%
7
Yamaha Motors
OIL SEAL (45X65X8)8JP-RAE02-10-00
Required: 1
. . SEAL, OIL 45X65X8
Supersedes: 8JP-RAE02-00-00
$4.67
You save $0.82
-15%
8
Yamaha Motors
FS-0175 CIRCLIP8JP-RAH07-00-00
Required: 1
. CIRCLIP, FS-0175
$2.80
You save $0.50
-15%
9
Yamaha Motors
BOLT, FLG. M8X1.258JP-RA189-00-00
Required: 3
BOLT, FLG. M8X1.25X30
$1.19
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
