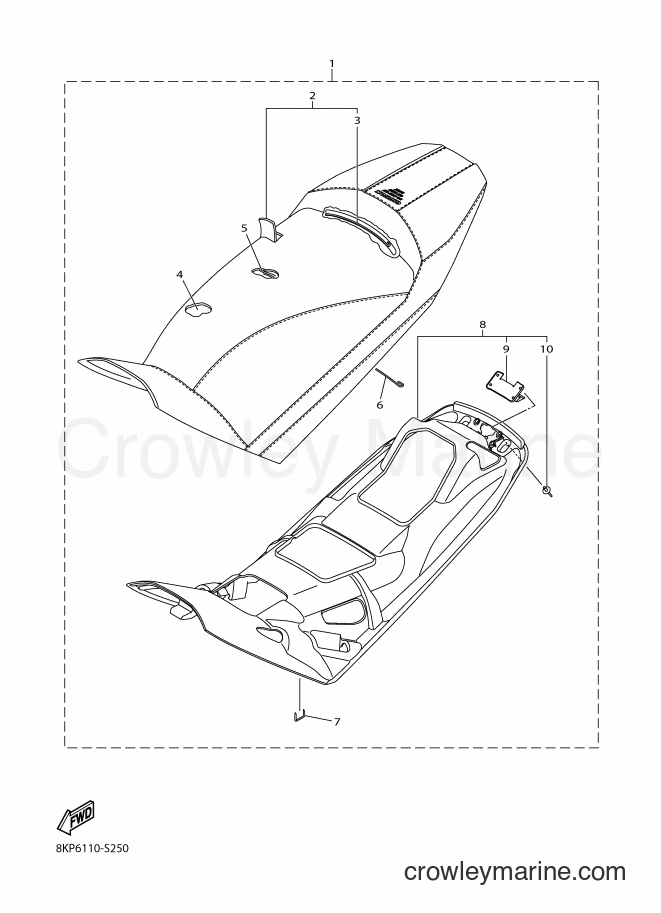

2017 Snowmobile SRV10LL - SRV10LL (8KP6) [010] SEAT diagram
![Yamaha Motors SRV10LL (8KP6) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/BlQ20vbb.png)
-15%
1
Yamaha Motors
SINGLE SEAT ASSEMBLY8KN-F4710-30-00
Required: 1
SINGLE SEAT ASSY
$526.99
You save $93.00
-15%
2
Yamaha Motors
SEAT COVER - COMPLETE8JR-F470F-20-00
Required: 1
. SEAT COVER COMP.
No longer availableSearch Nationwide Inventory
$309.39
You save $54.60
-15%
$5.52
You save $0.97
-15%
$141.94
You save $25.05
-15%
5
Yamaha Motors
HEATER, SEAT 18JP-H2951-10-00
Required: 1
. HEATER, SEAT 1
Supersedes: 8JP-H2951-00-00
No longer availableSearch Nationwide Inventory
$181.95
You save $32.04
-15%
$2.04
You save $0.36
-15%
No longer availableSearch Nationwide Inventory
$161.49
You save $28.50
-15%
8
Yamaha Motors
Bottom Plate Comp8JP-F470E-00-00
Required: 1
. BOTTOM PLATE COMP.
$168.29
You save $29.70
-15%
9
Yamaha Motors
SEAT LEVER BRACKET8JP-F475H-00-00
Required: 1
. . BRACKET, SEAT LEVER 1
No longer availableSearch Nationwide Inventory
$22.09
You save $3.90
-15%
10
Yamaha Motors
Rivet8JP-RA523-00-00
Required: 4
. . RIVET, 14
$1.10
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
