2016 Snowmobile VK10F - VK10F (8KW1) [020] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

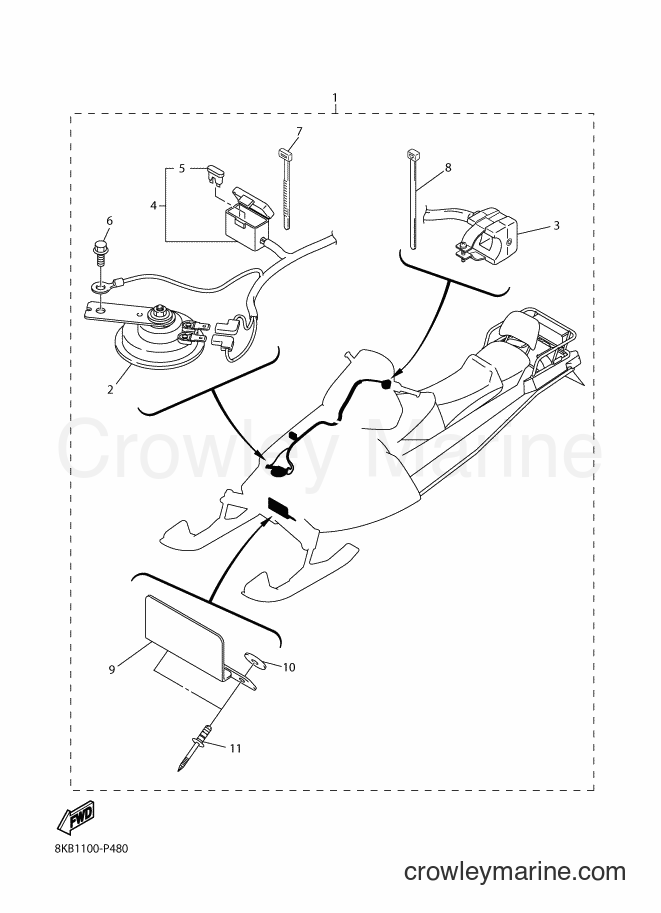

Yamaha Motors VK10F (8KW1) [020] - ELECTRICAL 4
Change View:
HORN KIT
1
Yamaha Motors
HORN KIT8JE-833A0-00
Required: 1
HORN KIT
Price unavailable
. SWITCH, HANDLE 1
3
Yamaha Motors
. SWITCH, HANDLE 18FR-83976-02
Required: 1
. SWITCH, HANDLE 1
Price unavailable
. WIRE, SUB LEAD
4
Yamaha Motors
. WIRE, SUB LEAD8JE-82509-00
Required: 1
. WIRE, SUB LEAD
Price unavailable
-15%
Fuse (12V/10A)
5
Yamaha Motors
Fuse (12V/10A)67F-82151-30-00
Required: 1
. . FUSE (3A-BL)
Supersedes: 5JJ-82151-50-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt95822-06016-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.67
More details
-15%
CLAMP
7
Yamaha Motors
CLAMP90464-30014-00
Required: 2
. BAND, SWITCH CORD
Supersedes: 437-83936-01-00
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
-15%
Band
8
Yamaha Motors
Band1UA-82591-00-00
Required: 1
. CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
. BRACKET, REFLECTOR
9
Yamaha Motors
. BRACKET, REFLECTOR8GU-21641-00
Required: 1
. BRACKET, REFLECTOR
Price unavailable
-15%
Plate Washer
10
Yamaha Motors
Plate Washer90201-061A5-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-05036-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Blind Rivet
11
Yamaha Motors
Blind Rivet90267-47186-00
Required: 2
. RIVET, BLIND (4.7X16.4 BLACK)
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
