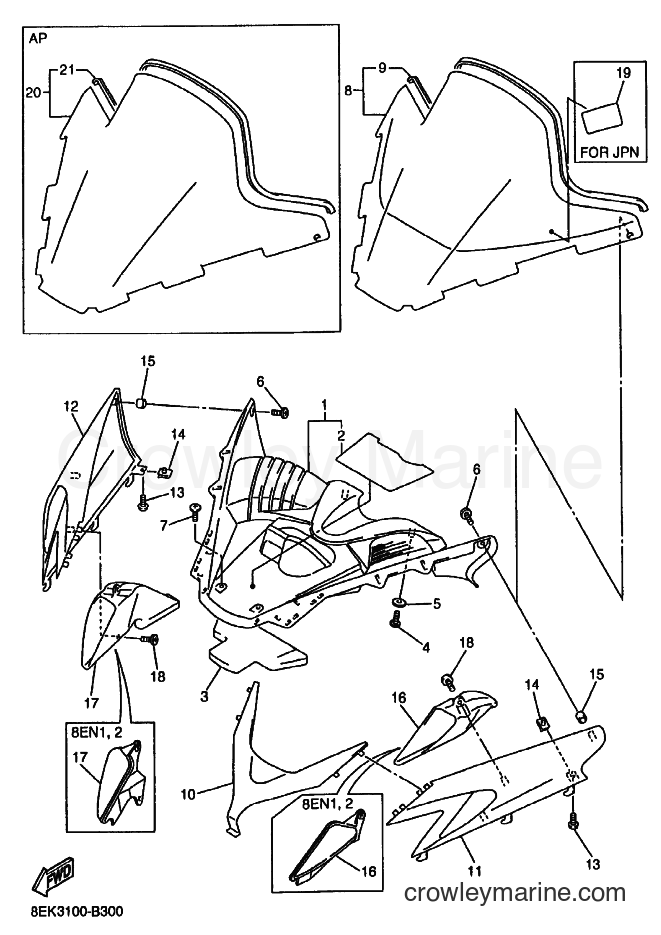

2003 Snowmobile SXV700 - SXV700 (8EK4) [010] WINDSHIELD diagram
![Yamaha Motors SXV700 (8EK4) [010] - WINDSHIELD](https://cdn.crowleymarine.com/yamaha/CiGcdS1f.png)
-15%
1
Yamaha Motors
Headlight Cover8EK-W7725-10-00
Required: 1
COVER, HEADLIGHT
$317.04
You save $55.95
-15%
1
Yamaha Motors
Headlight Cover8EK-W7725-00-00
Required: 1
COVER, HEADLIGHT
No longer availableSearch Nationwide Inventory
$130.89
You save $23.10
-15%
$41.64
You save $7.35
-15%
$39.09
You save $6.90
-15%
3
Yamaha Motors
Noise Damper 178EK-77277-00-00
Required: 1
DAMPER, NOISE 17
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
-15%
4
Yamaha Motors
Tapping Screw90167-05078-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42
-15%
5
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
-15%
6
Yamaha Motors
Tapping Screw90167-05079-00
Required: 2
SCREW, TAPPING
$3.82
You save $0.68
-50%
In stock
Only 1 remaining
$4.00
You save $4.00
-15%
8
Yamaha Motors
Windshield Comp8FB-K7210-00-00
Required: 1
WINDSHIELD COMP.
No longer availableSearch Nationwide Inventory
$96.86
You save $17.09
8
Yamaha Motors
WINDSHIELD COMP.8FB-77210-00
Required: 1
WINDSHIELD COMP.
Price unavailable
9
Yamaha Motors
. TRIM, UPPER8FB-K7213-00
Required: 1
. TRIM, UPPER
Price unavailable
9
Yamaha Motors
. TRIM, UPPER8FB-77213-00
Required: 1
. TRIM, UPPER
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$109.64
You save $19.35
-15%
No longer availableSearch Nationwide Inventory
$111.34
You save $19.65
-15%
No longer availableSearch Nationwide Inventory
$111.34
You save $19.65
-15%
$8.07
You save $1.42
-15%
14
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 2
NUT, SPRING
Supersedes: 90183-06053-00
In stock
Only 1 remaining
$6.37
You save $1.12
-15%
No longer availableSearch Nationwide Inventory
$3.74
You save $0.66
-15%
$40.79
You save $7.20
-15%
$22.94
You save $4.05
-15%
No longer availableSearch Nationwide Inventory
$35.69
You save $6.30
-15%
No longer availableSearch Nationwide Inventory
$17.84
You save $3.15
-15%
18
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
$3.94
You save $0.69
-15%
19
Yamaha Motors
Caution Label80V-2835Y-90-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
20
Yamaha Motors
WINDSHIELD COMP.8EK-77210-00
Required: 1
WINDSHIELD COMP.
Price unavailable
-15%
20
Yamaha Motors
Windshield Comp8EK-K7210-00-00
Required: 1
WINDSHIELD COMP.
No longer availableSearch Nationwide Inventory
$82.44
You save $14.55
-15%
21
Yamaha Motors
Upper Trim8EK-K7213-00-00
Required: 1
. TRIM, UPPER
No longer availableSearch Nationwide Inventory
$7.64
You save $1.35
21
Yamaha Motors
. TRIM, UPPER8EK-77213-00
Required: 1
. TRIM, UPPER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
