2002 Snowmobile VK540E-3 - VK540E-3 (8AC9) [030] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

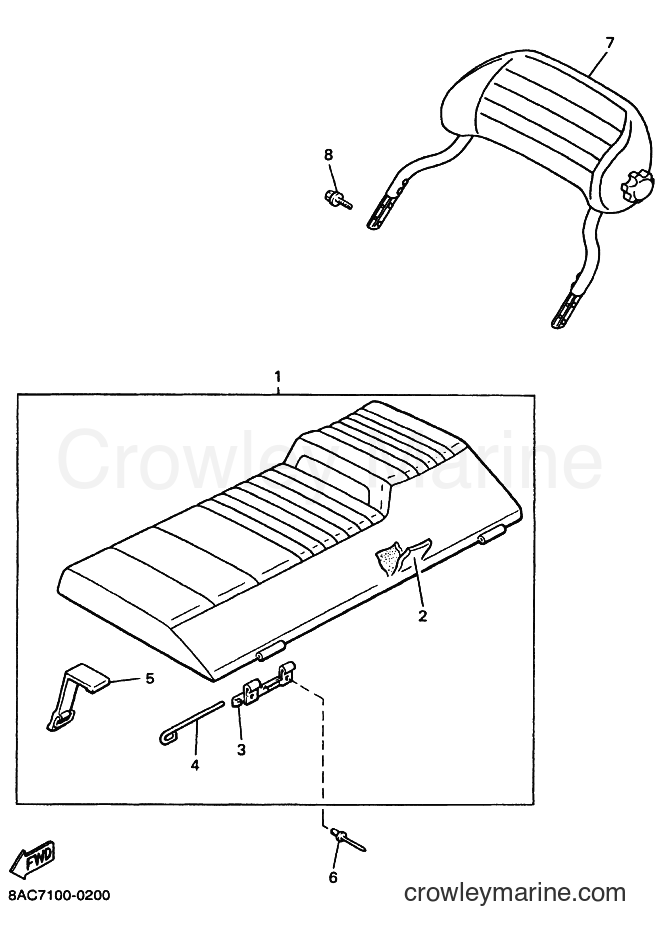

Yamaha Motors VK540E-3 (8AC9) [030] - SEAT

Change View:

-15%

Yamaha Motors

Double Seat Assembly8AC-24730-01-00

Required: 1

DOUBLE SEAT ASSY

Supersedes: 8AC-24730-00-00

~~$848.99~~

$721.64

You save $127.35

More details

-15%

Yamaha Motors

Seat Cover8AC-2470F-00-00

Required: 1

. SEAT COVER COMP.

~~$487.99~~

$414.79

You save $73.20

More details

-15%

Yamaha Motors

Spacer83R-24729-00-00

Required: 2

. SPACER 2

~~$10.49~~

$8.92

You save $1.57

-15%

. PIN

~~$21.99~~

$18.69

You save $3.30

More details

-15%

Yamaha Motors

BAND, SEAT FITTING8AT-24778-01-00

Required: 2

. BAND, SEAT FITTING

Supersedes: 8AT-24778-00-00

~~$12.99~~

$11.04

You save $1.95

More details

-15%

Yamaha Motors

BLIND RIVET90267-48060-00

Required: 6

RIVET, BLIND

~~$2.70~~

$2.29

You save $0.41

More details

-15%

Yamaha Motors

Back Seat Assembly8AC-24790-00-00

Required: 1

SEAT BACK ASSY

No longer availableSearch Nationwide Inventory

~~$527.99~~

$448.79

You save $79.20

-15%

BOLT, FLANGE

Supersedes: 90105-06437-00

No longer availableSearch Nationwide Inventory

~~$1.40~~

$1.19

You save $0.21

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
