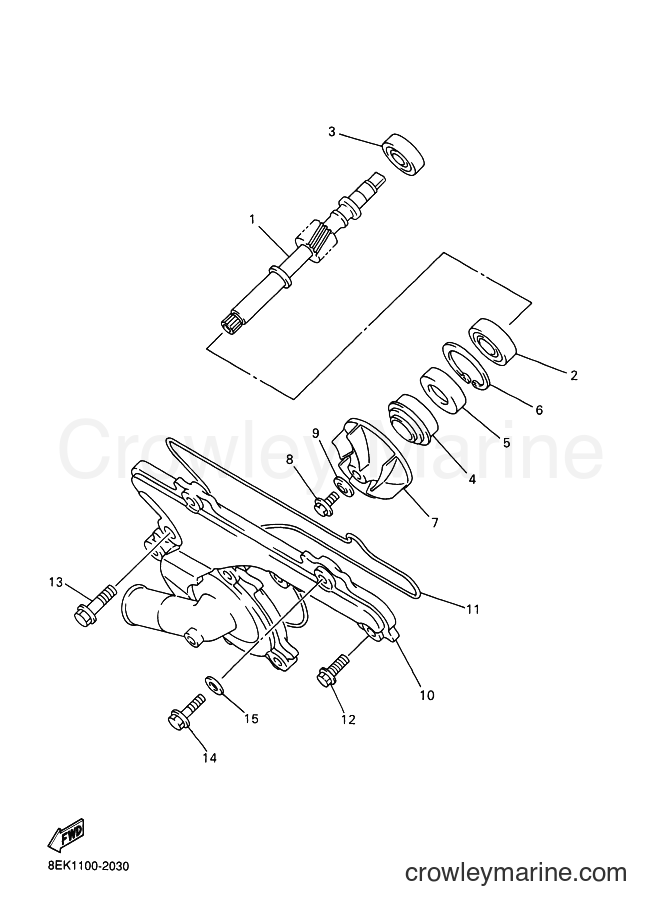

2002 Snowmobile SXV70ER - SXV70ER (8FB1) [030] WATER PUMP diagram
![Yamaha Motors SXV70ER (8FB1) [030] - WATER PUMP](https://cdn.crowleymarine.com/yamaha/bDAdtYP9.png)
-15%
1
Yamaha Motors
IMPELLER SHAFT GEAR8DF-12459-00-00
Required: 1
GEAR, IMPELLER SHAFT
No longer availableSearch Nationwide Inventory
$91.79
You save $16.20
-15%
2
Yamaha Motors
BEARING93306-00105-00
Required: 1
BEARING
Supersedes: 93306-00106-00
$28.89
You save $5.10
-15%
$35.69
You save $6.30
-15%
4
Yamaha Motors
Mechanical Seal11H-12438-10-00
Required: 1
SEAL, MECHANICAL
Supersedes: 11H-12438-00-00
$58.64
You save $10.35
-15%
$10.62
You save $1.87
-15%
6
Yamaha Motors
R-TYPE CIRCLIP93420-28055-00
Required: 1
CIRCLIP
Supersedes: 99009-28500-00
$8.92
You save $1.57
-15%
7
Yamaha Motors
WATER PUMP IMPELLER8CH-12451-02-00
Required: 1
IMPELLER, WATER PUMP
No longer availableSearch Nationwide Inventory
$84.99
You save $15.00
-20%
8
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
-15%
No longer availableSearch Nationwide Inventory
$31.44
You save $5.55
-15%
10
Yamaha Motors
Housing Cover8CH-12422-01-00
Required: 1
COVER, HOUSING
No longer availableSearch Nationwide Inventory
$93.49
You save $16.50
-15%
$51.84
You save $9.15
-50%
In stock
Only 2 remaining
$1.75
You save $1.75
-15%
13
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-08025-00
$8.07
You save $1.42
-15%
$8.92
You save $1.57
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
