2002 Snowmobile SXV70ER - SXV70ER (8FB2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

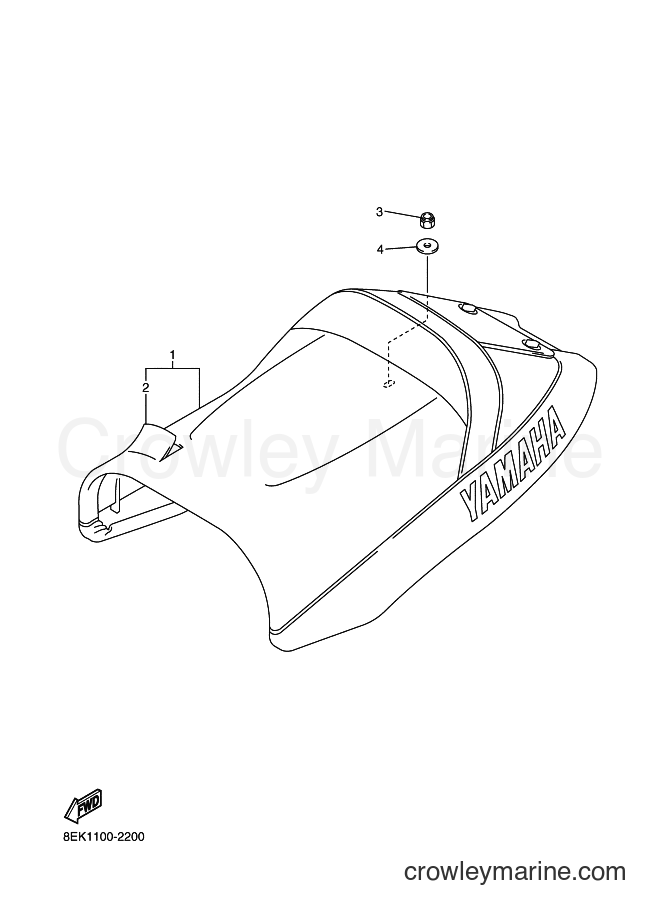

Yamaha Motors SXV70ER (8FB2) [010] - SEAT

Change View:

-15%

Yamaha Motors

SINGLE SEAT ASSEMBLY8EN-24710-10-00

Required: 1

SINGLE SEAT ASSY

Supersedes: 8EK-24710-10-00

No longer availableSearch Nationwide Inventory

~~$701.99~~

$596.69

You save $105.30

More details

-15%

Yamaha Motors

SEAT COVER - COMPLETE8EN-2470F-10-00

Required: 1

. SEAT COVER COMP.

Supersedes: 8EK-2470F-10-00

No longer availableSearch Nationwide Inventory

~~$443.99~~

$377.39

You save $66.60

More details

-15%

Yamaha Motors

LOCK NUT95717-08300-00

Required: 2

NUT, NYLON

Supersedes: 95707-08300-00

~~$3.05~~

$2.59

You save $0.46

More details

-15%

Yamaha Motors

Plate Washer90201-086A3-00

Required: 2

WASHER, PLATE

~~$9.49~~

$8.07

You save $1.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
