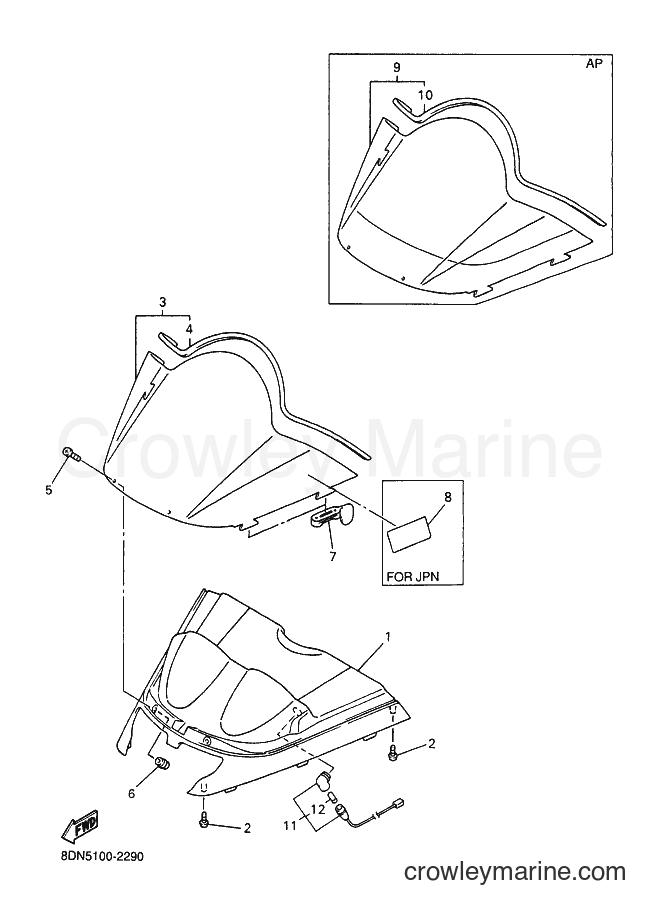

2002 Snowmobile SRX700 - SRX700 (8DN5) [020] WINDSHIELD diagram
![Yamaha Motors SRX700 (8DN5) [020] - WINDSHIELD](https://cdn.crowleymarine.com/yamaha/EWJqEtXJ.png)
-15%
1
Yamaha Motors
Headlight Cover8DW-77251-00-00
Required: 1
COVER, HEADLIGHT
No longer availableSearch Nationwide Inventory
$175.09
You save $30.90
-15%
In stock
Only 4 remaining
$1.57
You save $0.28
-15%
3
Yamaha Motors
8DN-772A0-00-WS8DN-772A0-00-00
Required: 1
WINDSCREEN COMP.
No longer availableSearch Nationwide Inventory
$60.97
You save $10.76
-15%
4
Yamaha Motors
Upper Trim87K-77213-00-00
Required: 1
. TRIM, UPPER
Supersedes: 8CV-77213-00-00
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-14%
5
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 2
SCREW, ROUND HEAD
$2.89
You save $0.46
-15%
In stock
Only 5 remaining
$6.37
You save $1.12
-15%
$9.34
You save $1.65
-15%
8
Yamaha Motors
Caution Label80V-2835Y-90-00
Required: 1
LABEL, CAUTION
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
-15%
9
Yamaha Motors
Windshield Comp8DN-77210-20-00
Required: 1
WINDSHIELD COMP.
No longer availableSearch Nationwide Inventory
$157.24
You save $27.75
-15%
10
Yamaha Motors
Upper Trim87K-77213-00-00
Required: 1
. TRIM, UPPER
Supersedes: 8CV-77213-00-00
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-15%
11
Yamaha Motors
Pilot Light Assembly8DN-83530-00-00
Required: 1
PILOT LIGHT ASSY
$17.84
You save $3.15
-15%
12
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
. BULB (14V-1.7W)
Supersedes: 5GH-83516-00-00
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
