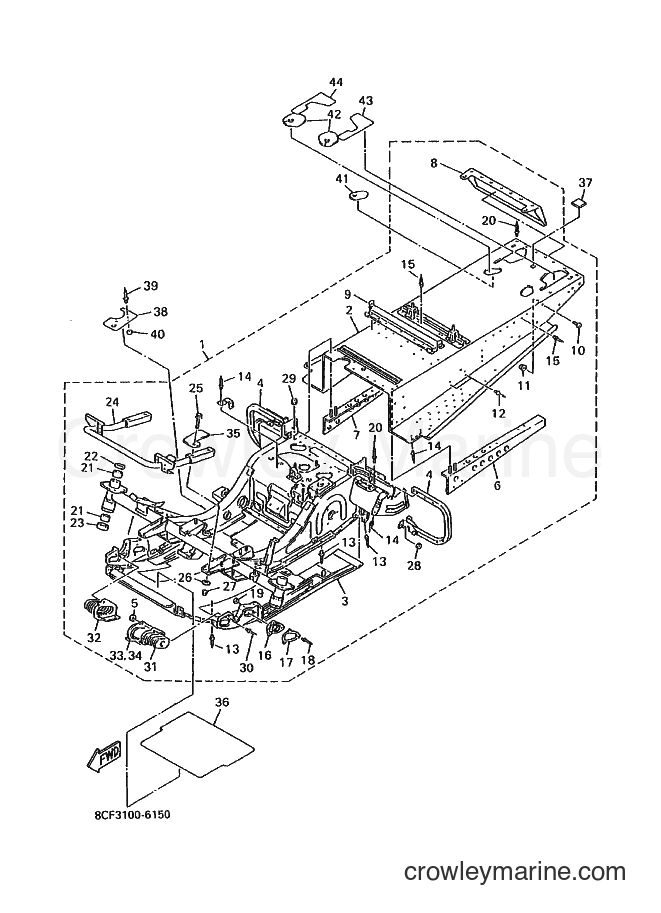

1996 Snowmobile VX600E - VX600E (8CF3) [010] FRAME diagram
![Yamaha Motors VX600E (8CF3) [010] - FRAME](https://cdn.crowleymarine.com/yamaha/4pdIZfNH.png)
-15%
No longer availableSearch Nationwide Inventory
$1647.29
You save $290.70
-15%
2
Yamaha Motors
PANEL, FRAME8CL-21911-10-00
Required: 1
.PANEL, FRAME
No longer availableSearch Nationwide Inventory
$528.69
You save $93.30
-15%
3
Yamaha Motors
Belly Pan8AB-21912-00-00
Required: 1
.PANEL, SUB FRAME 1
No longer availableSearch Nationwide Inventory
$225.24
You save $39.75
-15%
4
Yamaha Motors
Reinforcement8AB-21926-00-00
Required: 2
.REINFORCEMENT, FOOTREST 1
No longer availableSearch Nationwide Inventory
$118.77
You save $20.96
-15%
5
Yamaha Motors
Plain Washer 90201-04325-00
Required: 6
.WASHER, PLATE
No longer availableSearch Nationwide Inventory
$1.02
You save $0.18
-15%
No longer availableSearch Nationwide Inventory
$57.79
You save $10.20
-15%
No longer availableSearch Nationwide Inventory
$51.84
You save $9.15
-15%
8
Yamaha Motors
89A-21923-20-0089A-21923-10-00
Required: 1
.REINEFORCEMENT, FRAME REAR 1
No longer availableSearch Nationwide Inventory
$52.69
You save $9.30
-15%
9
Yamaha Motors
Seat Bracket8AB-21946-00-00
Required: 1
.BRACKET, SEAT FITTING
No longer availableSearch Nationwide Inventory
$49.29
You save $8.70
-15%
No longer availableSearch Nationwide Inventory
$1.61
You save $0.28
-20%
$1.56
You save $0.39
-15%
12
Yamaha Motors
BLIND RIVET90267-40076-00
Required: 4
.RIVET, BLIND
$8.07
You save $1.42
-15%
13
Yamaha Motors
Blind Rivet90267-48018-00
Required: 39
.RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57
-15%
14
Yamaha Motors
BLIND RIVET90267-48057-00
Required: 8
.RIVET, BLIND
No longer availableSearch Nationwide Inventory
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
$22.94
You save $4.05
-15%
$3.02
You save $0.53
-15%
18
Yamaha Motors
BLIND RIVET90267-40029-00
Required: 6
.RIVET, BLIND
$8.07
You save $1.42
-15%
19
Yamaha Motors
Plain Washer 90201-04325-00
Required: 6
.WASHER, PLATE
No longer availableSearch Nationwide Inventory
$1.02
You save $0.18
-15%
20
Yamaha Motors
Blind Rivet90267-48095-00
Required: 6
.RIVET, BLIND
$2.29
You save $0.41
-15%
21
Yamaha Motors
BIMETAL FROM BUSH90384-36134-00
Required: 4
.BUSH, BIMETAL FORMED
$10.62
You save $1.87
-15%
$10.62
You save $1.87
-15%
$22.09
You save $3.90
-15%
24
Yamaha Motors
FRONT BUMPER 28AB-77512-00-00
Required: 1
.BUMPER, FRONT 2
No longer availableSearch Nationwide Inventory
$122.39
You save $21.60
-50%
25
Yamaha Motors
Flange Bolt95817-08040-00
Required: 4
.BOLT, FLANGE
Supersedes: 95807-08040-00
In stock
Only 2 remaining
$3.75
You save $3.75
-15%
26
Yamaha Motors
Plate Washer90201-083A6-00
Required: 4
.WASHER, PLATE
No longer availableSearch Nationwide Inventory
$3.40
You save $0.60
-15%
27
Yamaha Motors
LOCK NUT95717-08300-00
Required: 4
.NUT, FLANGE
$2.59
You save $0.46
-15%
$3.19
You save $0.56
-15%
29
Yamaha Motors
LOCK NUT95717-08300-00
Required: 4
.NUT, FLANGE
$2.59
You save $0.46
-15%
30
Yamaha Motors
Blind Rivet90267-47197-00
Required: 6
.RIVET, BLIND
Supersedes: 90267-48165-00
$2.21
You save $0.39
-15%
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
No longer availableSearch Nationwide Inventory
$31.44
You save $5.55
-15%
33
Yamaha Motors
PLATE,STRG BRKT 182M-2195E-00-00
Required: 1
.PLATE, STRG BRACKET 1 (L,H)
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
34
Yamaha Motors
PLATE,STRG BRKT 282M-2195F-00-00
Required: 1
.PLATE, STRG BRACKET 2 (R,H)
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-15%
No longer availableSearch Nationwide Inventory
$23.79
You save $4.20
37
Yamaha Motors
LOCATING DAMPER2GH-24185-00-00
Required: 1
DAMPER, LOCATING 5
$2.37
-15%
No longer availableSearch Nationwide Inventory
$8.49
You save $1.50
-15%
39
Yamaha Motors
Blind Rivet90267-48018-00
Required: 2
RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57
-15%
No longer availableSearch Nationwide Inventory
$1.02
You save $0.18
-15%
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
No longer availableSearch Nationwide Inventory
$4.67
You save $0.82
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
