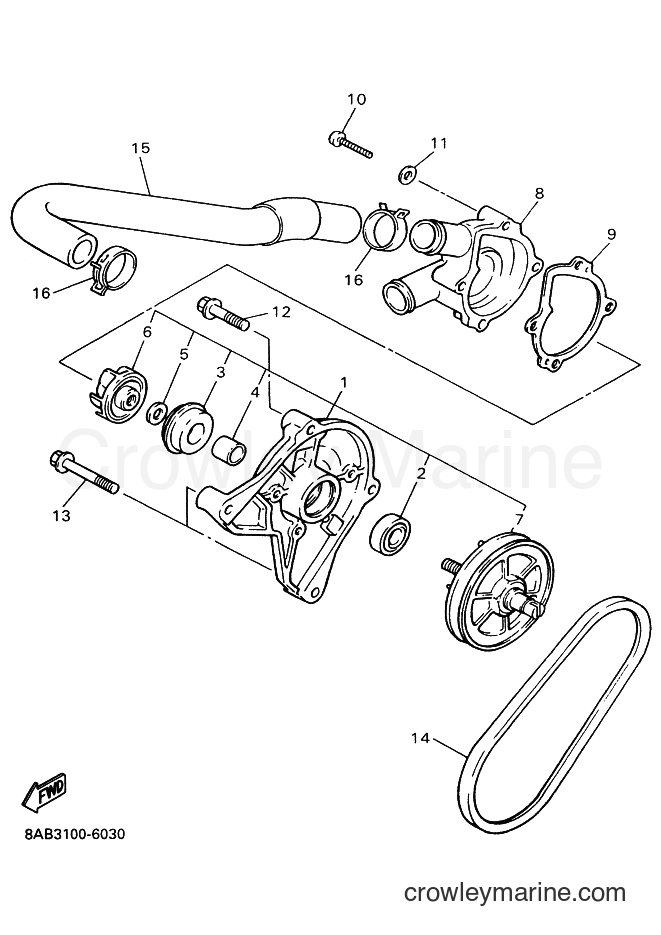

1996 Snowmobile VX600 - VX600 (8CA3) [010] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors VX600 (8CA3) [010] - WATER PUMP

Change View:

-15%

Yamaha Motors

Water Pump Housing82M-W1247-03-00

Required: 1

HOUSING, WATER PUMP

Supersedes: 82M-W1247-02-00

No longer availableSearch Nationwide Inventory

~~$87.99~~

$74.79

You save $13.20

More details

-15%

Yamaha Motors

BEARING93306-20117-00

Required: 1

. BEARING

~~$37.99~~

$32.29

You save $5.70

More details

-15%

Yamaha Motors

SEAL MECHANICAL82M-12438-00-00

Required: 1

. SEAL, MECHANICAL

No longer availableSearch Nationwide Inventory

~~$28.99~~

$24.64

You save $4.35

More details

-15%

Yamaha Motors

Fuel Cam Shaft Stopper82M-12437-00-00

Required: 1

. STOPPER

No longer availableSearch Nationwide Inventory

~~$6.47~~

$5.50

You save $0.97

More details

-15%

Yamaha Motors

Plate Washer90201-08088-00

Required: 1

. WASHER, PLATE

~~$1.20~~

$1.02

You save $0.18

More details

-15%

Yamaha Motors

Water Pump Impeller82M-12451-00-00

Required: 1

. IMPELLER, WATER PUMP

No longer availableSearch Nationwide Inventory

~~$66.99~~

$56.94

You save $10.05

More details

-15%

Yamaha Motors

Water Pump Housing8AB-W1247-02-00

Required: 1

. IMPELLER SHAFT ASSY

Supersedes: 8AB-12450-00-00

No longer availableSearch Nationwide Inventory

~~$295.99~~

$251.59

You save $44.40

More details

-15%

Yamaha Motors

Housing Cover8AB-12422-01-00

Required: 1

COVER, HOUSING

No longer availableSearch Nationwide Inventory

~~$47.99~~

$40.79

You save $7.20

More details

-15%

Yamaha Motors

Housing Cover Gasket82M-12427-01-00

Required: 1

GASKET, HOUSING COVER 1

No longer availableSearch Nationwide Inventory

~~$4.10~~

$3.49

You save $0.62

More details

-15%

Yamaha Motors

Pan Head Screw98507-06035-00

Required: 4

SCREW, PAN HEAD

~~$9.49~~

$8.07

You save $1.42

More details

-15%

Yamaha Motors

Plate Washer92907-06600-00

Required: 4

WASHER, PLATE

~~$1.00~~

$0.85

You save $0.15

More details

-50%

Yamaha Motors

Flange Bolt95817-08040-00

Required: 2

BOLT, FLANGE

Supersedes: 95827-08040-00

In stock

Only 2 remaining

~~$7.49~~

$3.75

You save $3.75

More details

-15%

Yamaha Motors

Flange Bolt95817-08110-00

Required: 2

BOLT, FLANGE

Supersedes: 95827-08110-00

~~$6.49~~

$5.52

You save $0.97

-15%

BELT 1

~~$34.99~~

$29.74

You save $5.25

-15%

PIPE 1

No longer availableSearch Nationwide Inventory

~~$42.99~~

$36.54

You save $6.45

-15%

CLIP

~~$18.49~~

$15.72

You save $2.77

More details
