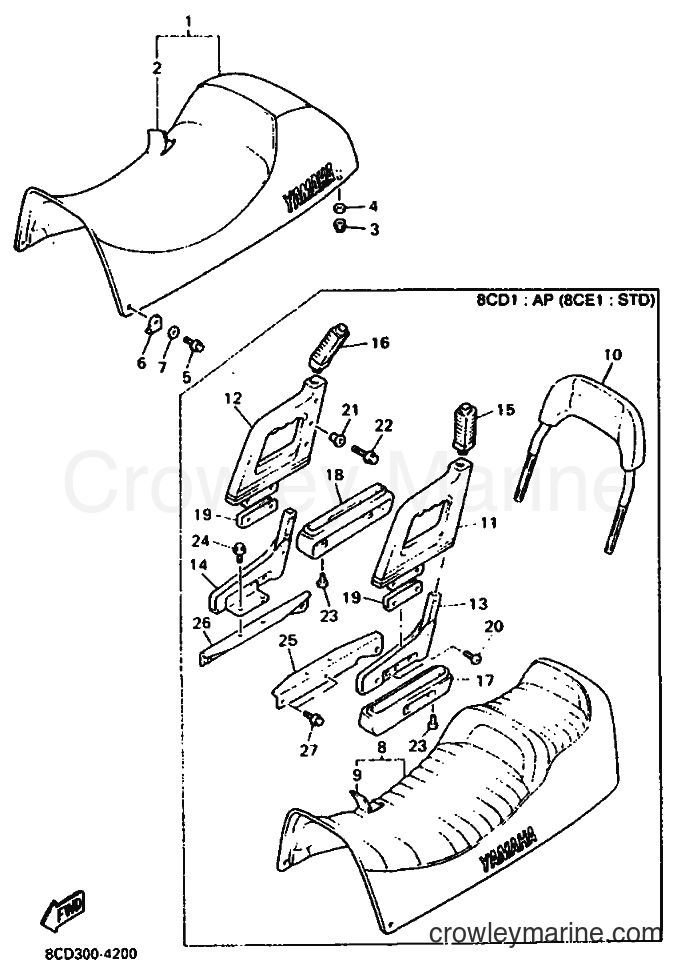

1994 Snowmobile VX600ST - VX600ST (8CE1) [010] SEAT diagram
![Yamaha Motors VX600ST (8CE1) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/dAv0BBsP.png)
-15%
1
Yamaha Motors
Single Seat Assembly8AB-24710-10-00
Required: 1
SINGLE SEAT ASSY
Supersedes: 8AB-24710-00-00
No longer availableSearch Nationwide Inventory
$609.44
You save $107.55
-15%
2
Yamaha Motors
8AB-2470F-10-008AB-2470F-09-00
Required: 1
. SEAT COVER COMP.
Supersedes: 8AB-2470F-00-00
No longer availableSearch Nationwide Inventory
$341.69
You save $60.30
No longer availableSearch Nationwide Inventory
$1.20
-15%
4
Yamaha Motors
Plate Washer90201-086A3-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08748-00
$8.07
You save $1.42
-13%
5
Yamaha Motors
Small Flange Bolt95027-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06025-00
In stock
Only 1 remaining
$3.60
You save $0.56
-15%
No longer availableSearch Nationwide Inventory
$8.49
You save $1.50
-15%
7
Yamaha Motors
Plate Washer90201-063J2-00
Required: 2
WASHER, PLATE
$5.52
You save $0.97
-15%
8
Yamaha Motors
DOUBLE SEAT ASSEMBLY8BB-24730-01-00
Required: 11
DOUBLE SEAT ASSY
Supersedes: 8BB-24730-00-00
No longer availableSearch Nationwide Inventory
$933.29
You save $164.70
-15%
9
Yamaha Motors
Seat Cover8BB-2470F-01-00
Required: 1
. SEAT COVER COMP.
Supersedes: 8BB-2470F-00-00
No longer availableSearch Nationwide Inventory
$409.69
You save $72.30
-15%
No longer availableSearch Nationwide Inventory
$395.24
You save $69.75
-15%
No longer availableSearch Nationwide Inventory
$195.49
You save $34.50
-15%
12
Yamaha Motors
Grip Assist8Y7-2474W-01-00
Required: 1
ASSIST,GRIP 2
No longer availableSearch Nationwide Inventory
$168.29
You save $29.70
-15%
13
Yamaha Motors
Assist Grip Bracket8BB-2474H-00-00
Required: 1
BRACKET, ASSIST GRIP 1
No longer availableSearch Nationwide Inventory
$123.24
You save $21.75
-15%
14
Yamaha Motors
ASSIST GRIP BRACKET8BB-2474J-00-00
Required: 1
BRACKET, ASSIST GRIP 2
No longer availableSearch Nationwide Inventory
$123.24
You save $21.75
-15%
No longer availableSearch Nationwide Inventory
$42.49
You save $7.50
-15%
No longer availableSearch Nationwide Inventory
$45.04
You save $7.95
-15%
$161.49
You save $28.50
-15%
No longer availableSearch Nationwide Inventory
$196.34
You save $34.65
-15%
No longer availableSearch Nationwide Inventory
$16.99
You save $3.00
-15%
20
Yamaha Motors
Socket Bolt98907-08016-00
Required: 6
SCREW, BIND
Supersedes: 98901-08016-00
No longer availableSearch Nationwide Inventory
$1.06
You save $0.19
-15%
$3.10
You save $0.55
-15%
No longer availableSearch Nationwide Inventory
$1.40
You save $0.25
-15%
23
Yamaha Motors
RIVET90269-06001-00
Required: 4
RIVET
Supersedes: 90269-06046-00
$5.52
You save $0.97
-15%
24
Yamaha Motors
Flange Bolt95817-08016-00
Required: 4
BOLT, WASHER BASED
Supersedes: 90105-08485-00
$4.67
You save $0.82
-15%
25
Yamaha Motors
SEAT LEVER BRACKET8BB-2475H-00-00
Required: 1
BRACKET, SEAT LEVER 1
No longer availableSearch Nationwide Inventory
$28.04
You save $4.95
-15%
26
Yamaha Motors
BRACKET,SEAT LVR 28BB-2475J-00-00
Required: 1
BRACKET, SEAT LEVER 2
No longer availableSearch Nationwide Inventory
$16.99
You save $3.00
-50%
27
Yamaha Motors
Flange Bolt95817-08012-00
Required: 4
BOLT, WASHER BASED
Supersedes: 90105-08447-00
In stock
Only 1 remaining
$2.75
You save $2.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
