All diagrams for this model

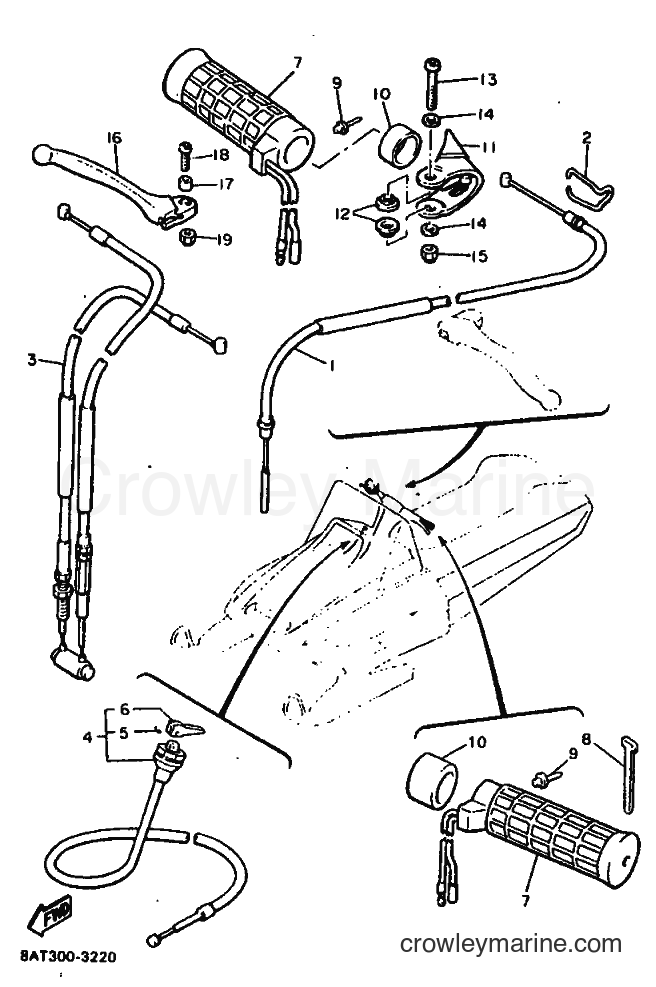

1993 Snowmobile VK540E - VK540E (8AT1) [010] CONTROL CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VK540E (8AT1) [010] - CONTROL CABLE
Change View:
-15%
Throttle Cable
1
Yamaha Motors
Throttle Cable83R-26311-10-00
Required: 1
CABLE, THROTTLE 1
Supersedes: 83R-26311-01-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
CABLE, BRAKE
3
Yamaha Motors
CABLE, BRAKE83R-26340-00
Required: 1
CABLE, BRAKE
Price unavailable
. KNOB,STARTER
6
Yamaha Motors
. KNOB,STARTER8U9-25325-00
Required: 1
. KNOB,STARTER
Price unavailable
-15%
CLAMP
8
Yamaha Motors
CLAMP90464-30014-00
Required: 2
BAND, SWITCH CORD
Supersedes: 437-83936-01-00
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
-15%
BLIND RIVET
9
Yamaha Motors
BLIND RIVET90267-40076-00
Required: 2
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Collar
12
Yamaha Motors
Collar90387-06681-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Pan Screw
13
Yamaha Motors
Pan Screw98507-06050-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92506-06050-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
WASHER
14
Yamaha Motors
WASHER92906-06650
Required: 2
WASHER
Price unavailable
-15%
Flange Nut
15
Yamaha Motors
Flange Nut95707-06300-00
Required: 1
NUT, NYLON
Supersedes: 95706-06300-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
LEVER 2
16
Yamaha Motors
LEVER 28M5-83922-00
Required: 1
LEVER 2
Price unavailable
-15%
LEVER COLLAR 1
17
Yamaha Motors
LEVER COLLAR 1802-83913-00-00
Required: 1
COLLAR, LEVER 1
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
FLANGE NUT (4GB)
19
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 1
NUT, NYLON
Supersedes: 95706-05300-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
