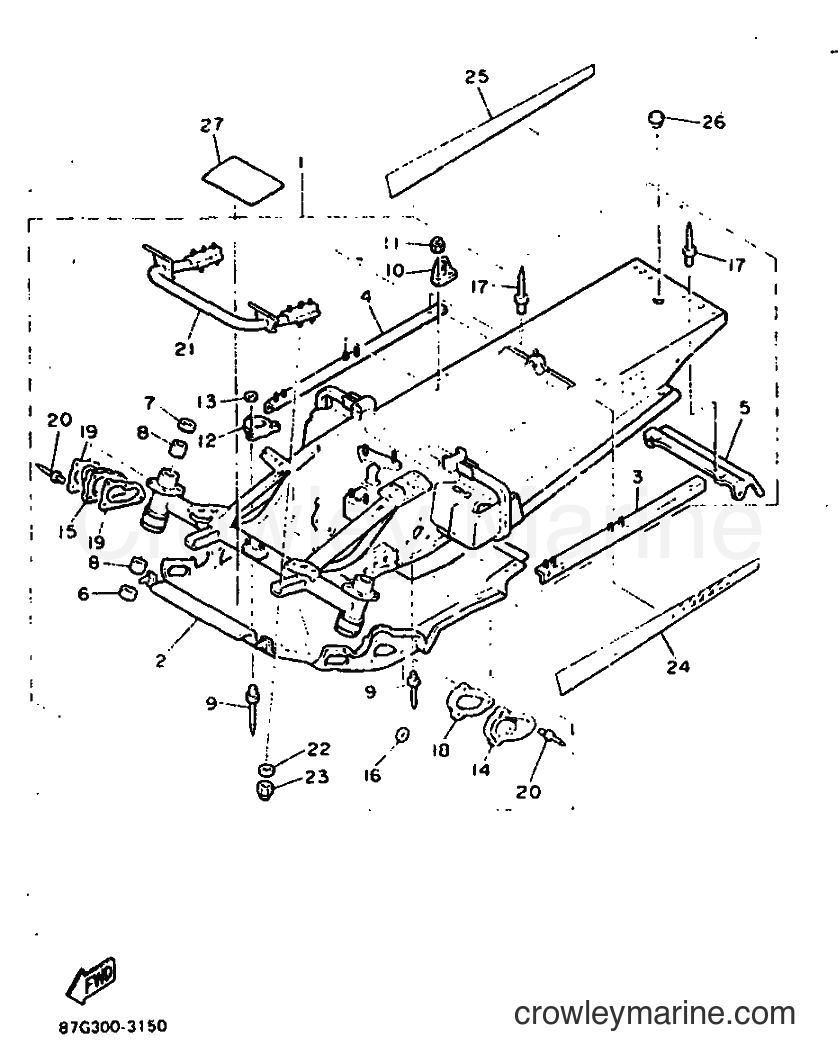

1993 Snowmobile PZ480 - PZ480 (87G4) [010] FRAME diagram
![Yamaha Motors PZ480 (87G4) [010] - FRAME](https://cdn.crowleymarine.com/yamaha/x68hNPyx.png)
1
Yamaha Motors
FRAME COMP.87G-21910-30
Required: 1
FRAME COMP.
Price unavailable
-15%
2
Yamaha Motors
Belly Pan87F-21912-00-00
Required: 1
PANEL, SUB FRAME 1
No longer availableSearch Nationwide Inventory
$214.19
You save $37.80
-15%
No longer availableSearch Nationwide Inventory
$69.73
You save $12.30
-15%
No longer availableSearch Nationwide Inventory
$69.73
You save $12.30
-15%
5
Yamaha Motors
RNFCMNT,FRAME RR 18V0-21923-01-00
Required: 1
. REINEFORCEMENT, FRAME REAR 1
No longer availableSearch Nationwide Inventory
$33.14
You save $5.85
-15%
$22.09
You save $3.90
-15%
$10.62
You save $1.87
-15%
8
Yamaha Motors
BIMETAL FROM BUSH90384-36134-00
Required: 4
. BUSH, BIMETAL FORMED
$10.62
You save $1.87
-15%
9
Yamaha Motors
Blind Rivet90267-48018-00
Required: 35
. RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57
-15%
10
Yamaha Motors
Seat Bracket8V0-21946-00-00
Required: 2
. BRACKET, SEAT FITTING
No longer availableSearch Nationwide Inventory
$4.25
You save $0.75
-15%
11
Yamaha Motors
Flange Nut95707-06300-00
Required: 4
. NUT, NYLON
Supersedes: 95701-06300-00
$3.19
You save $0.56
-15%
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-15%
13
Yamaha Motors
Plain Washer 90201-04325-00
Required: 3
. WASHER, PLATE
No longer availableSearch Nationwide Inventory
$1.02
You save $0.18
-15%
$22.94
You save $4.05
-15%
No longer availableSearch Nationwide Inventory
$33.14
You save $5.85
-15%
16
Yamaha Motors
Plain Washer90201-04027-00
Required: 3
. WASHER, PLATE
Supersedes: 90201-047A7-00
$2.08
You save $0.37
-15%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.15
-15%
$3.02
You save $0.53
-15%
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
-15%
20
Yamaha Motors
BLIND RIVET90267-40029-00
Required: 7
. RIVET, BLIND
$8.07
You save $1.42
-15%
21
Yamaha Motors
FRONT BUMPER 287F-77512-00-00
Required: 1
. BUMPER, FRONT 2
No longer availableSearch Nationwide Inventory
$143.91
You save $25.40
-15%
22
Yamaha Motors
Plate Washer90201-083A6-00
Required: 4
. WASHER, PLATE
Supersedes: 90201-082E7-00
No longer availableSearch Nationwide Inventory
$3.40
You save $0.60
23
Yamaha Motors
Lock Nut95712-08300-00
Required: 4
. NUT, FLANGE
No longer availableSearch Nationwide Inventory
$1.20
-15%
No longer availableSearch Nationwide Inventory
$66.17
You save $11.68
-15%
No longer availableSearch Nationwide Inventory
$66.17
You save $11.68
-15%
26
Yamaha Motors
ORMNT,INSTR PNL 2810-77716-00-00
Required: 1
ORNAMENT, INSTRUMENT PANEL 2
No longer availableSearch Nationwide Inventory
$6.79
You save $1.20
-15%
$21.24
You save $3.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
