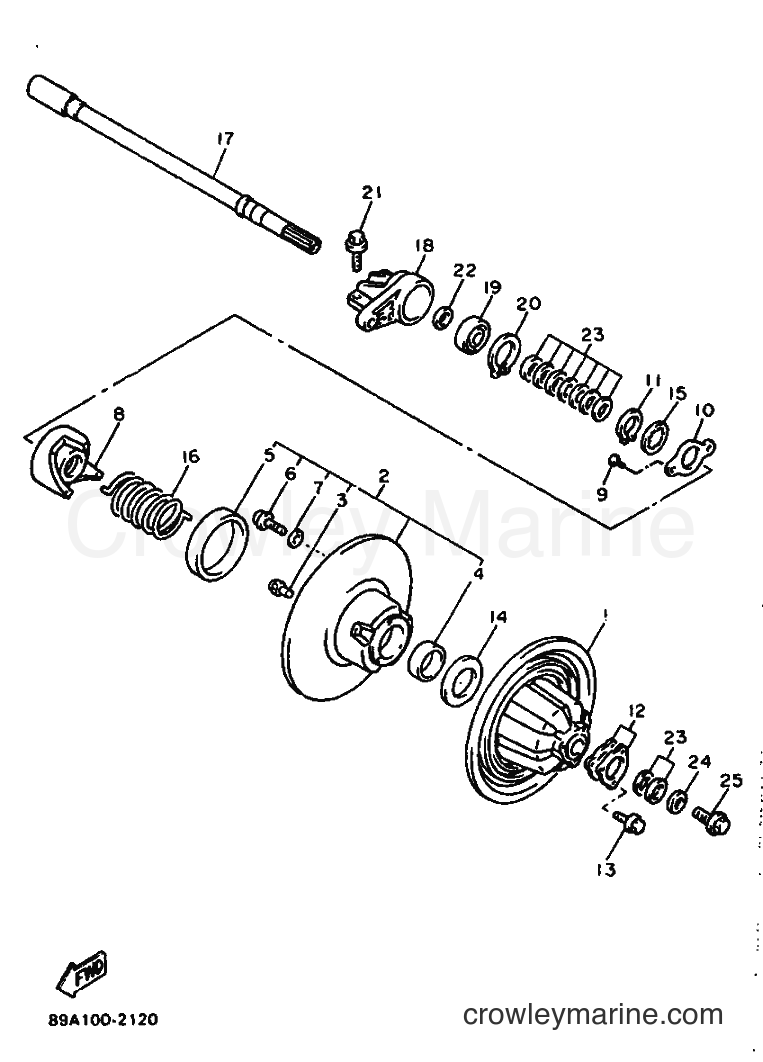

1992 Snowmobile VX750 - VX750 (89A1) [010] SECONDARY SHEAVE diagram
![Yamaha Motors VX750 (89A1) [010] - SECONDARY SHEAVE](https://cdn.crowleymarine.com/yamaha/n6lk5r8s.png)
-15%
1
Yamaha Motors
SECONDARY FIXED SHEAVE89A-17660-00-00
Required: 1
SECONDARY FIXED SHEAVE COMP.
No longer availableSearch Nationwide Inventory
$194.64
You save $34.35
-15%
2
Yamaha Motors
Secondary Sliding Sheave89A-17670-11-00
Required: 1
SECONDARY SLIDING SHEAVE
Supersedes: 89A-17670-00-00
No longer availableSearch Nationwide Inventory
$489.59
You save $86.40
3
Yamaha Motors
RAMP SHOE89A-17688-19-00
Required: 3
. SHOE, RAMP
Supersedes: 89A-17688-00-00
No longer availableSearch Nationwide Inventory
$73.38
-15%
4
Yamaha Motors
SOLID BUSH90380-38206-00
Required: 1
. BUSH, SOLID
No longer availableSearch Nationwide Inventory
$52.69
You save $9.30
5
Yamaha Motors
. BUSH, SOLID90380-92607
Required: 1
. BUSH, SOLID
Price unavailable
-15%
6
Yamaha Motors
Socket Bolt98907-06016-00
Required: 3
. SCREW, BINDING
Supersedes: 90154-06062-00
$8.92
You save $1.57
-15%
7
Yamaha Motors
Plain Washer90201-06020-00
Required: 3
. WASHER, PLATE
Supersedes: 90201-065F3-00
In stock
Only 1 remaining
$8.92
You save $1.57
-15%
8
Yamaha Motors
SEAT,SEC SPRING 3389A-17684-3A-00
Required: 1
SEAT, SECONDARY SPRING
Supersedes: 89A-17684-30-00
No longer availableSearch Nationwide Inventory
$93.49
You save $16.50
-15%
8
Yamaha Motors
SEAT,SEC SPRING 3689A-17684-6A-00
Required: 1
SEAT, SECONDARY SPRING
Supersedes: 89A-17684-60-00
No longer availableSearch Nationwide Inventory
$121.54
You save $21.45
-15%
8
Yamaha Motors
SEAT,SEC SPRING 3989A-17684-9A-00
Required: 1
SEAT, SECONDARY SPRING
Supersedes: 89A-17684-00-00
No longer availableSearch Nationwide Inventory
$96.89
You save $17.10
-15%
9
Yamaha Motors
Bind Screw98907-06012-00
Required: 2
SCREW, BINDING
Supersedes: 90154-06036-00
$8.92
You save $1.57
-15%
No longer availableSearch Nationwide Inventory
$9.77
You save $1.72
-15%
No longer availableSearch Nationwide Inventory
$2.25
You save $0.40
-15%
12
Yamaha Motors
STOPPER, HOLDER89A-17656-00-00
Required: 2
STOPPER, HOLDER
No longer availableSearch Nationwide Inventory
$2.80
You save $0.50
-15%
13
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 3
BOLT, WASHER BASED
Supersedes: 90105-06653-00
$3.65
You save $0.65
-15%
14
Yamaha Motors
Plate Washer90201-384P6-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$8.49
You save $1.50
-15%
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
16
Yamaha Motors
Torsion Spring90508-551A3-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
16
Yamaha Motors
Torsion Spring90508-553A0-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
16
Yamaha Motors
Torsion Spring90508-553A1-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$30.59
You save $5.40
-15%
17
Yamaha Motors
Secondary Shaft89A-17680-01-00
Required: 1
SECONDARY SHAFT COMP.
Supersedes: 89A-17680-00-00
No longer availableSearch Nationwide Inventory
$328.09
You save $57.90
-15%
18
Yamaha Motors
Bearing Housing89A-47631-00-00
Required: 1
HOUSING, BEARING
No longer availableSearch Nationwide Inventory
$106.24
You save $18.75
-15%
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
20
Yamaha Motors
Circlip 54G99009-62500-00
Required: 1
CIRCLIP
Supersedes: 93420-62070-00
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
22
Yamaha Motors
Plate Washer90201-284P7-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42
-15%
23
Yamaha Motors
Plate Washer90201-284P9-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
-15%
23
Yamaha Motors
Plate Washer90201-284P7-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42
-15%
23
Yamaha Motors
Plate Washer90201-284P8-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$2.25
You save $0.40
-15%
24
Yamaha Motors
Plate Washer90201-141M3-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$6.79
You save $1.20
-15%
25
Yamaha Motors
Washer Based Bolt90105-14175-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
