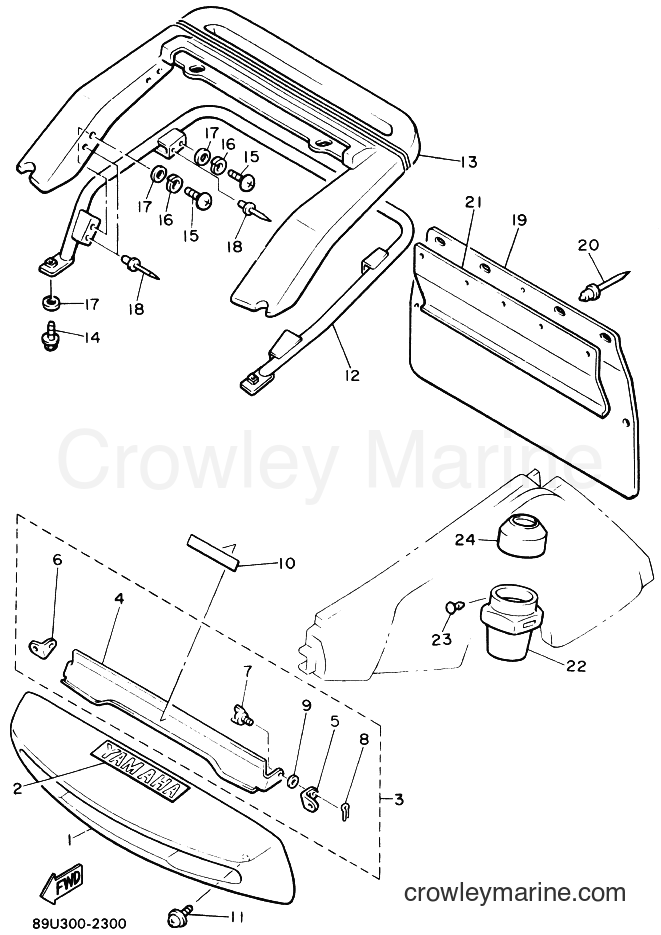

1992 Snowmobile VT480 - VT480 (89U1) [010] BUMPER diagram
![Yamaha Motors VT480 (89U1) [010] - BUMPER](https://cdn.crowleymarine.com/yamaha/eiPIckeM.png)
-15%
1
Yamaha Motors
Front Bupber88T-77511-00-00
Required: 1
BUMPER, FRONT 1
No longer availableSearch Nationwide Inventory
$179.46
You save $31.67
-15%
2
Yamaha Motors
99245-00100-0099235-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99235-00025-00
No longer availableSearch Nationwide Inventory
$8.92
You save $1.57
-15%
No longer availableSearch Nationwide Inventory
$35.69
You save $6.30
-15%
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
7
Yamaha Motors
Wing Bolt90122-05022-00
Required: 2
. BOLT, WING
$7.22
You save $1.27
-15%
8
Yamaha Motors
Cotter Pin91490-16020-00
Required: 2
. PIN, COTTER
Supersedes: 91401-16020-00
$5.94
You save $1.05
-20%
9
Yamaha Motors
Plate Washer90202-05088-00
Required: 2
. WASHER, PLATE
In stock
Only 1 remaining
$6.39
You save $1.60
-15%
10
Yamaha Motors
WARNING LABEL 28Y0-77762-70-00
Required: 1
LABEL, WARNING 2
$5.94
You save $1.05
-15%
11
Yamaha Motors
Screw with Washer90159-06060-00
Required: 2
SCREW, WITH WASHER
Supersedes: 90159-06071-00
$8.07
You save $1.42
-15%
12
Yamaha Motors
Rear Bumper87F-77541-00-00
Required: 1
BUMPER, REAR 1
No longer availableSearch Nationwide Inventory
$150.44
You save $26.55
-15%
13
Yamaha Motors
REAR BUMPER87F-77542-00-00
Required: 1
BUMPER, REAR 2
No longer availableSearch Nationwide Inventory
$147.38
You save $26.01
-50%
14
Yamaha Motors
Flange Bolt95817-08012-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
-15%
$5.52
You save $0.97
-15%
16
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
-20%
17
Yamaha Motors
Plain Washer92990-08200-00
Required: 6
WASHER, PLAIN
In stock
Only 1 remaining
$2.44
You save $0.61
-15%
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
-15%
19
Yamaha Motors
Flap8V9-77595-00-00
Required: 1
FLAP
Supersedes: 85L-77595-00-00
No longer availableSearch Nationwide Inventory
$96.89
You save $17.10
-15%
$4.17
You save $0.74
-15%
No longer availableSearch Nationwide Inventory
$21.24
You save $3.75
-15%
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
No longer availableSearch Nationwide Inventory
$2.59
You save $0.46
-15%
No longer availableSearch Nationwide Inventory
$33.14
You save $5.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
