1992 Snowmobile VK540E - VK540E (86V4) [010] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

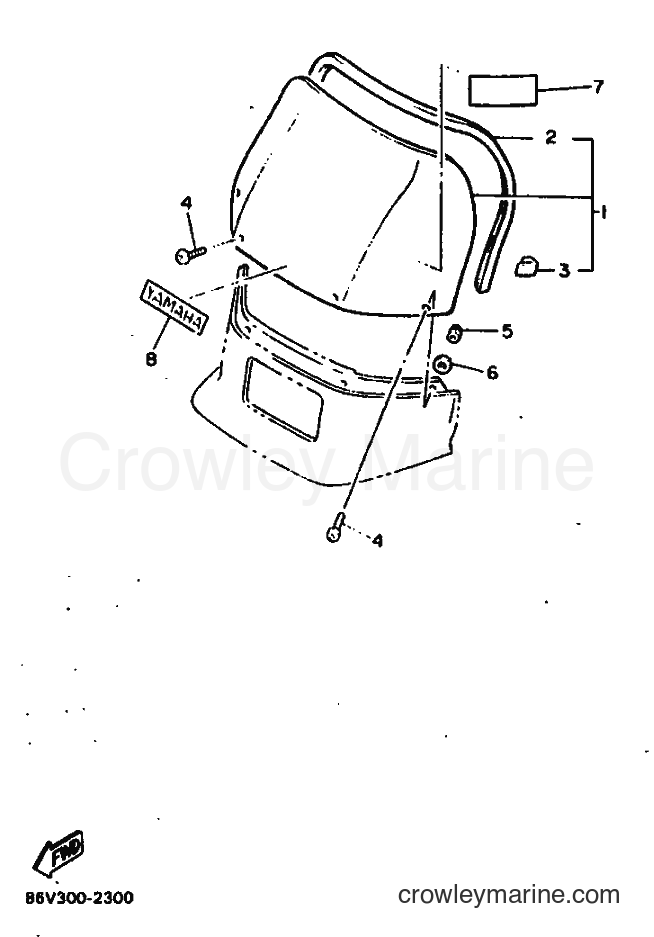

Yamaha Motors VK540E (86V4) [010] - WINDSHIELD
Change View:
. TRIM, UPPER
2
Yamaha Motors
. TRIM, UPPER875-77213-00
Required: 1
. TRIM, UPPER
Price unavailable
-15%
Binding Screw
4
Yamaha Motors
Binding Screw90154-05047-00
Required: 4
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
-15%
CROWN NUT
5
Yamaha Motors
CROWN NUT90176-05059-00
Required: 2
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
-15%
Plate Washer
6
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
LABEL, CAUTION
7
Yamaha Motors
LABEL, CAUTION80V-2835Y-70
Required: 1
LABEL, CAUTION
Price unavailable
-15%
YAMAHA EMBLEM
8
Yamaha Motors
YAMAHA EMBLEM99245-00120-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99235-00030-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
