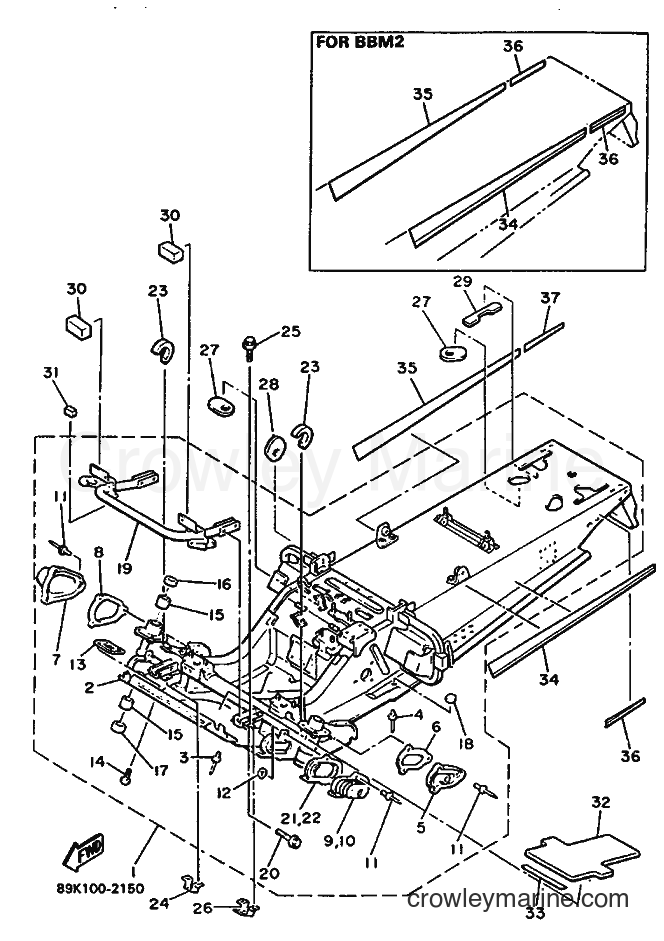

1992 Snowmobile EX570E - EX570E (89K1) [999] FRAME diagram
![Yamaha Motors EX570E (89K1) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/yCuZtLM1.png)
-15%
1
Yamaha Motors
FRAME COMP (88S-1199999-02248-00
Required: 1
FRAME COMP.
Supersedes: 88S-21910-11-00
No longer availableSearch Nationwide Inventory
$1950.74
You save $344.25
-15%
1
Yamaha Motors
FRAME COMP (88S-0199999-02247-00
Required: 1
FRAME COMP.
Supersedes: 88S-21910-01-00
No longer availableSearch Nationwide Inventory
$1875.09
You save $330.90
-15%
2
Yamaha Motors
BELLY PAN(EX570N)86M-21912-00-00
Required: 1
. PANEL, SUB FRAME 1
No longer availableSearch Nationwide Inventory
$275.39
You save $48.60
-15%
3
Yamaha Motors
Blind Rivet90267-48018-00
Required: 38
. RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57
-15%
4
Yamaha Motors
BLIND RIVET90267-48060-00
Required: 16
. RIVET, BLIND
$2.29
You save $0.41
-15%
$22.94
You save $4.05
-15%
$3.02
You save $0.53
-15%
7
Yamaha Motors
STEERING COVER82M-23818-00-00
Required: 1
. COVER, STEERING
No longer availableSearch Nationwide Inventory
$39.09
You save $6.90
-15%
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
-15%
No longer availableSearch Nationwide Inventory
$38.24
You save $6.75
-15%
No longer availableSearch Nationwide Inventory
$38.24
You save $6.75
-15%
11
Yamaha Motors
BLIND RIVET90267-40076-00
Required: 12
. RIVET, BLIND
$8.07
You save $1.42
-15%
12
Yamaha Motors
Plain Washer90201-04027-00
Required: 6
. WASHER, PLATE
Supersedes: 90201-047A7-00
$2.08
You save $0.37
-15%
13
Yamaha Motors
SUB FRAME PANEL8M6-21917-00-00
Required: 2
. PANEL, SUB FRAME 6
No longer availableSearch Nationwide Inventory
$46.74
You save $8.25
-15%
14
Yamaha Motors
Screw with Washer90159-05137-00
Required: 8
. SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.89
You save $0.16
-15%
15
Yamaha Motors
BIMETAL FROM BUSH90384-36134-00
Required: 4
. BUSH, BIMETAL FORMED
$10.62
You save $1.87
-15%
$10.62
You save $1.87
-15%
$22.09
You save $3.90
-15%
$11.47
You save $2.02
-15%
19
Yamaha Motors
FRONT BUMPER 284M-77512-01-00
Required: 1
. BUMPER, FRONT 2
No longer availableSearch Nationwide Inventory
$103.69
You save $18.30
-50%
20
Yamaha Motors
Flange Bolt95817-08035-00
Required: 4
. BOLT, FLANGE
Supersedes: 95811-08035-00
In stock
Only 1 remaining
$5.25
You save $5.25
-15%
21
Yamaha Motors
PLATE,STRG BRKT 182M-2195E-00-00
Required: 1
. PLATE, STRG BRACKET 1
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
22
Yamaha Motors
PLATE,STRG BRKT 282M-2195F-00-00
Required: 2
PLATE, STRG BRACKET 2
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
23
Yamaha Motors
Noise Damper82M-77277-00-00
Required: 2
DAMPER, NOISE 17
$0.51
You save $0.09
-15%
24
Yamaha Motors
REINFORCEMNT SUBFR82M-21938-00-00
Required: 1
REINFORCEMENT, SUB FRAME 2
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
-15%
25
Yamaha Motors
95817-06010-0095812-06010-00
Required: 4
BOLT, FLANGE
Supersedes: 95811-06010-00
$2.72
You save $0.48
-15%
26
Yamaha Motors
REINFCMNT,SUB.FR 284N-21938-01-00
Required: 1
REINFORCEMENT, SUB FRAME 2
No longer availableSearch Nationwide Inventory
$12.74
You save $2.25
-15%
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
No longer availableSearch Nationwide Inventory
$4.67
You save $0.82
-15%
No longer availableSearch Nationwide Inventory
$3.70
You save $0.65
-15%
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$1.87
You save $0.33
-15%
No longer availableSearch Nationwide Inventory
$22.94
You save $4.05
-15%
$3.82
You save $0.68
-15%
No longer availableSearch Nationwide Inventory
$43.34
You save $7.65
-15%
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-15%
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-15%
No longer availableSearch Nationwide Inventory
$36.54
You save $6.45
-15%
No longer availableSearch Nationwide Inventory
$10.19
You save $1.80
-15%
No longer availableSearch Nationwide Inventory
$13.59
You save $2.40
-15%
No longer availableSearch Nationwide Inventory
$13.59
You save $2.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
