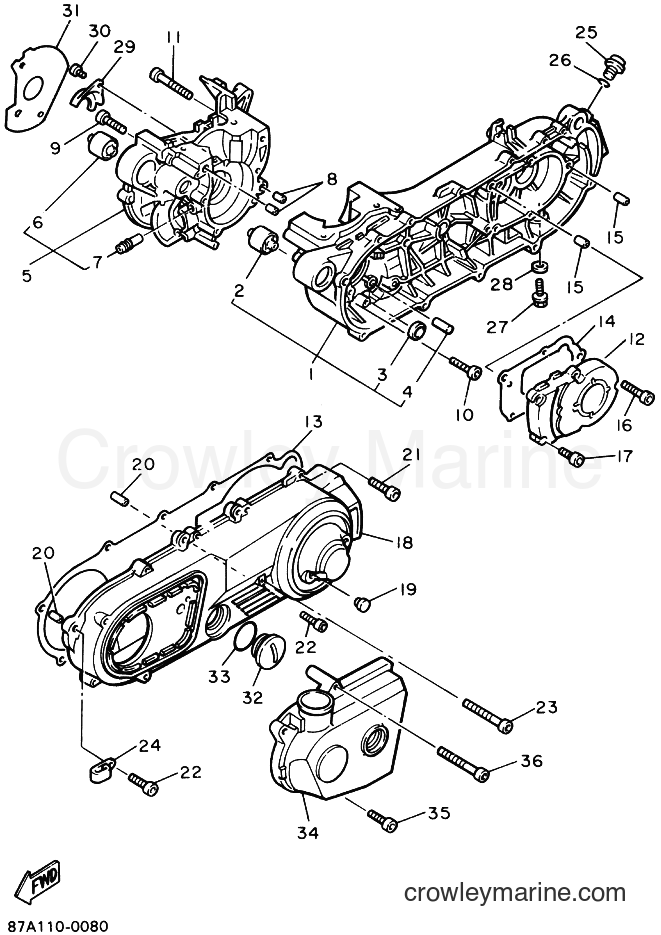

1991 Snowmobile SV125E - SV125E (88B1) [020] CRANKCASE diagram
![Yamaha Motors SV125E (88B1) [020] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/5ryDJxUF.png)
-15%
1
Yamaha Motors
Crankcase Assembly87A-15110-00-00
Required: 1
CRANKCASE ASSY 1
No longer availableSearch Nationwide Inventory
$111.34
You save $19.65
-15%
2
Yamaha Motors
Engine Mount Damper87A-15316-00-00
Required: 1
.DAMPER, engine mount 1
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-15%
$14.02
You save $2.47
-15%
4
Yamaha Motors
Shaft3KJ-15659-00-00
Required: 1
.SHAFT, idle gear
Supersedes: 50M-13342-00-00
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
-15%
5
Yamaha Motors
CRANKCASE ASY 287A-15120-00-00
Required: 1
CRANKCASE ASSY 2
No longer availableSearch Nationwide Inventory
$186.99
You save $33.00
-15%
6
Yamaha Motors
Engine Mount Damper87A-15316-00-00
Required: 1
.DAMPER, engine mount 1
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-50%
7
Yamaha Motors
Breather JointJ38-11116-00-00
Required: 1
.JOINT, breather
In stock
Only 1 remaining
$1.90
You save $1.90
-50%
8
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, dowel
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-15%
No longer availableSearch Nationwide Inventory
$3.23
You save $0.57
-15%
10
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 1
BOLT, hexagon socket head
In stock
Only 1 remaining
$5.52
You save $0.97
-15%
11
Yamaha Motors
Bolt (4MY)91317-06060-00
Required: 2
BOLT
Supersedes: 91316-06060-00
$3.44
You save $0.61
-15%
12
Yamaha Motors
Crankcase Cover50W-15421-00-00
Required: 1
COVER, crankcase 2
No longer availableSearch Nationwide Inventory
$100.29
You save $17.70
-15%
13
Yamaha Motors
CRANKCASE COVER GASKET87A-15451-00-00
Required: 1
GASKET, crankcase cover 1
No longer availableSearch Nationwide Inventory
$12.32
You save $2.17
-15%
14
Yamaha Motors
CRANKCASE COVER GASKET87A-15461-00-00
Required: 1
GASKET, crankcase cover 2
No longer availableSearch Nationwide Inventory
$6.79
You save $1.20
-20%
15
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, dowel
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.12
You save $0.53
-15%
$8.92
You save $1.57
-15%
$5.52
You save $0.97
-15%
18
Yamaha Motors
Crankcase Cover87A-15411-00-00
Required: 1
COVER, crankcase 1
No longer availableSearch Nationwide Inventory
$163.19
You save $28.80
-15%
$8.07
You save $1.42
-20%
20
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, dowel
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.12
You save $0.53
-50%
21
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 7
BOLT
Supersedes: 91316-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
-15%
No longer availableSearch Nationwide Inventory
$3.23
You save $0.57
-15%
$4.67
You save $0.82
24
Yamaha Motors
CLAMP90465-06125
Required: 1
CLAMP
Price unavailable
-15%
25
Yamaha Motors
Oil Plug4J2-15363-10-00
Required: 1
PLUG, oil
Supersedes: 4J2-15363-00-00
$4.67
You save $0.82
-15%
26
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
$6.79
You save $1.20
-15%
27
Yamaha Motors
Flange Bolt95814-08016-00
Required: 1
BOLT, flange
Supersedes: 95801-08016-00
$8.92
You save $1.57
-15%
28
Yamaha Motors
Gasket90201-08087-00
Required: 1
WASHER, plate
$3.36
You save $0.59
-15%
No longer availableSearch Nationwide Inventory
$3.49
You save $0.62
-12%
30
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, pan head
Supersedes: 90157-06077-00
$3.60
You save $0.50
-15%
31
Yamaha Motors
CRANKCASE COVER GASKET 387A-15462-00-00
Required: 1
GASKET, crankcase cover 3
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
-15%
32
Yamaha Motors
Straight Screw Plug90340-36078-00
Required: 1
PLUG, straight screw
$14.02
You save $2.47
-15%
33
Yamaha Motors
O-Ring93210-35804-00
Required: 1
O-RING
Supersedes: 93210-36510-00
$0.51
You save $0.09
-15%
34
Yamaha Motors
CRKCASE COVER ASSY87A-W1543-01-00
Required: 1
CRANKCASE COVER ASSY 2
No longer availableSearch Nationwide Inventory
$135.99
You save $24.00
-6%
No longer availableSearch Nationwide Inventory
$2.15
You save $0.15
-15%
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
