All diagrams for this model

1991 Snowmobile PZ480 - PZ480 (87G2) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

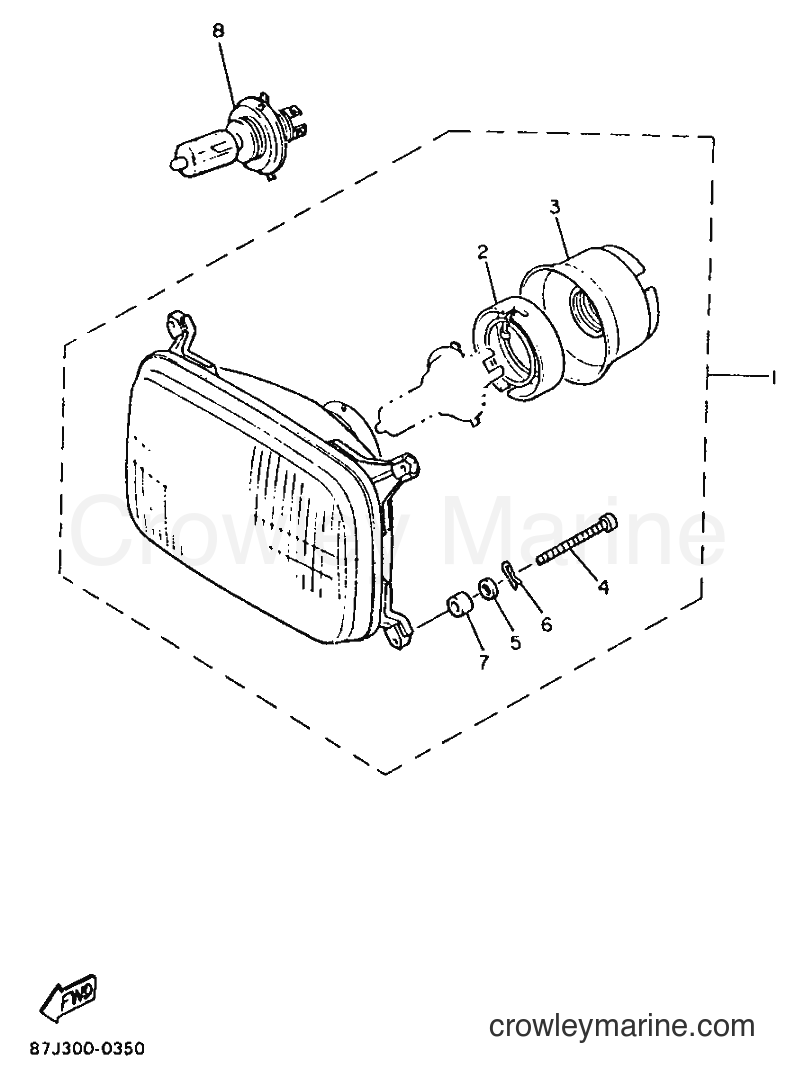

Yamaha Motors PZ480 (87G2) [010] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSY
1
Yamaha Motors
HEADLIGHT UNIT ASSY81Y-84303-40
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
-15%
Plate Washer
5
Yamaha Motors
Plate Washer90201-090P4-00
Required: 4
. WASHER, SPECIAL
Supersedes: 8V0-84327-00-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
-15%
Clip
6
Yamaha Motors
Clip90468-12006-00
Required: 4
. CLIP
Supersedes: 8V0-84374-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BULB, HEADLIGHT
8
Yamaha Motors
BULB, HEADLIGHT*
Required: 1
BULB, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
