1988 Snowmobile SV80 - SV80 (85G0) [020] INSTRUMENT PANEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

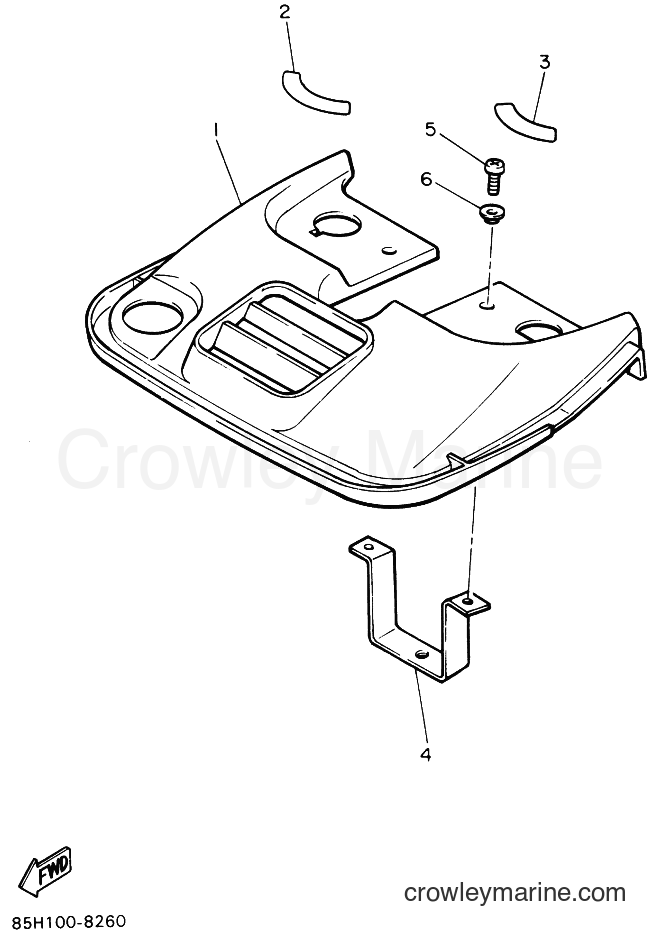

Yamaha Motors SV80 (85G0) [020] - INSTRUMENT PANEL

Change View:

-15%

Yamaha Motors

Instrument Panel85G-77711-00-00

Required: 1

PANEL, instrument

No longer availableSearch Nationwide Inventory

~~$36.99~~

$31.44

You save $5.55

More details

-15%

Yamaha Motors

Indicator 18K2-77741-01-00

Required: 1

INDICATOR 1

Supersedes: 8K2-77741-00-00

No longer availableSearch Nationwide Inventory

~~$2.80~~

$2.38

You save $0.42

More details

-15%

Yamaha Motors

Indicator 28K4-77742-00-00

Required: 1

INDICATOR 2

No longer availableSearch Nationwide Inventory

~~$7.99~~

$6.79

You save $1.20

More details

-15%

Yamaha Motors

Bracket 185G-77721-00-00

Required: 1

BRACKET 1

No longer availableSearch Nationwide Inventory

~~$19.49~~

$16.57

You save $2.92

More details

-15%

Yamaha Motors

98907-06012-0098906-06012-00

Required: 2

SCREW, bind

No longer availableSearch Nationwide Inventory

~~$2.85~~

$2.42

You save $0.43

-15%

COLLAR

Supersedes: 90387-081R2-00

~~$10.49~~

$8.92

You save $1.57

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
