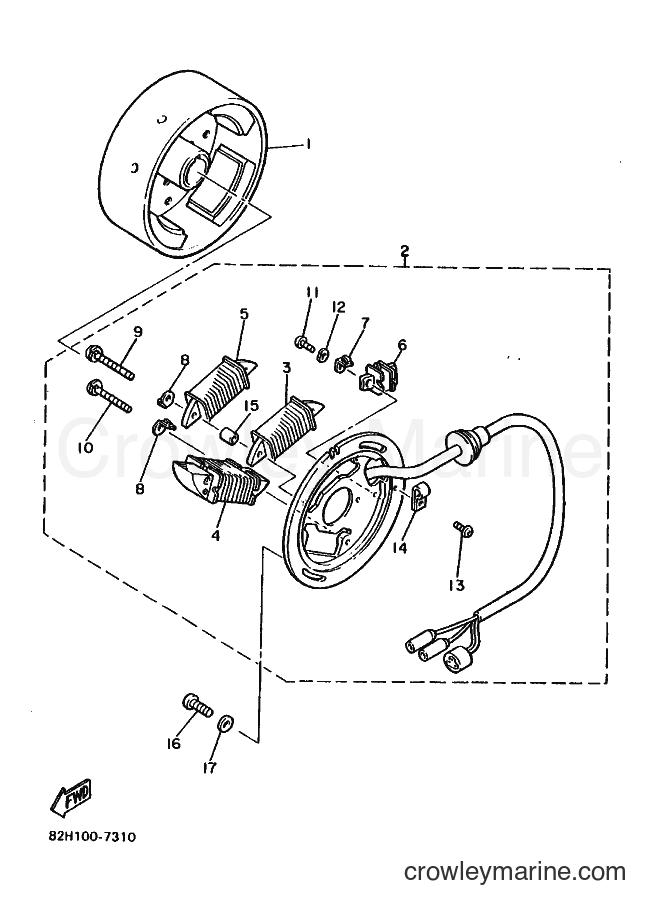

1988 Snowmobile ET340 - ET340 (84F0) [030] GENERATOR diagram
![Yamaha Motors ET340 (84F0) [030] - GENERATOR](https://cdn.crowleymarine.com/yamaha/Sh88MRzp.png)
-15%
1
Yamaha Motors
ROTOR ASSEMBLY85M-85550-00-00
Required: 1
ROTOR ASSY
Supersedes: 81L-85550-M0-00
No longer availableSearch Nationwide Inventory
$143.64
You save $25.35
-15%
2
Yamaha Motors
Base Assembly83R-85560-M0-00
Required: 1
BASE ASSY
Supersedes: 81L-85560-M0-00
$230.34
You save $40.65
-15%
3
Yamaha Motors
Charge Coil81L-85520-M0-00
Required: 1
.COIL, charge
$91.79
You save $16.20
-15%
4
Yamaha Motors
Lighting Coil81L-81313-M0-00
Required: 1
.COIL, lighting 1
$62.04
You save $10.95
-15%
5
Yamaha Motors
LIGHTING COIL81L-81314-M0-00
Required: 1
.COIL, lighting 2
$93.49
You save $16.50
-15%
6
Yamaha Motors
Pulser Coil8R4-85580-M0-00
Required: 1
.COIL, pulser
$148.74
You save $26.25
-15%
7
Yamaha Motors
TERMINAL,EARTH 18R4-85568-M0-00
Required: 1
.TERMINAL, earth 1
No longer availableSearch Nationwide Inventory
$2.84
You save $0.50
-15%
8
Yamaha Motors
TERMINAL,EARTH 28R4-85569-M0-00
Required: 2
.TERMINAL, earth 2
No longer availableSearch Nationwide Inventory
$5.09
You save $0.90
-15%
9
Yamaha Motors
Screw With Washer90159-05129-00
Required: 2
.SCREW, with washer
No longer availableSearch Nationwide Inventory
$1.49
You save $0.26
-15%
10
Yamaha Motors
Screw With Washer90159-05130-00
Required: 2
.SCREW, with washer
$1.49
You save $0.26
-15%
11
Yamaha Motors
Pan Head Screw98511-04012-00
Required: 2
.SCREW, pan head
No longer availableSearch Nationwide Inventory
$1.78
You save $0.32
12
Yamaha Motors
WASHER92903-04100-00
Required: 3
.WASHER, spring
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-15%
13
Yamaha Motors
Screw98580-04008-00
Required: 1
.SCREW, pan head
Supersedes: 98501-04008-00
$5.52
You save $0.97
-15%
$2.51
You save $0.44
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-15%
16
Yamaha Motors
Bind Screw98980-06016-00
Required: 2
SCREW, bind
Supersedes: 98902-06016-00
$8.07
You save $1.42
-15%
17
Yamaha Motors
Plate Washer90201-06043-00
Required: 2
WASHER, plate
No longer availableSearch Nationwide Inventory
$2.34
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
