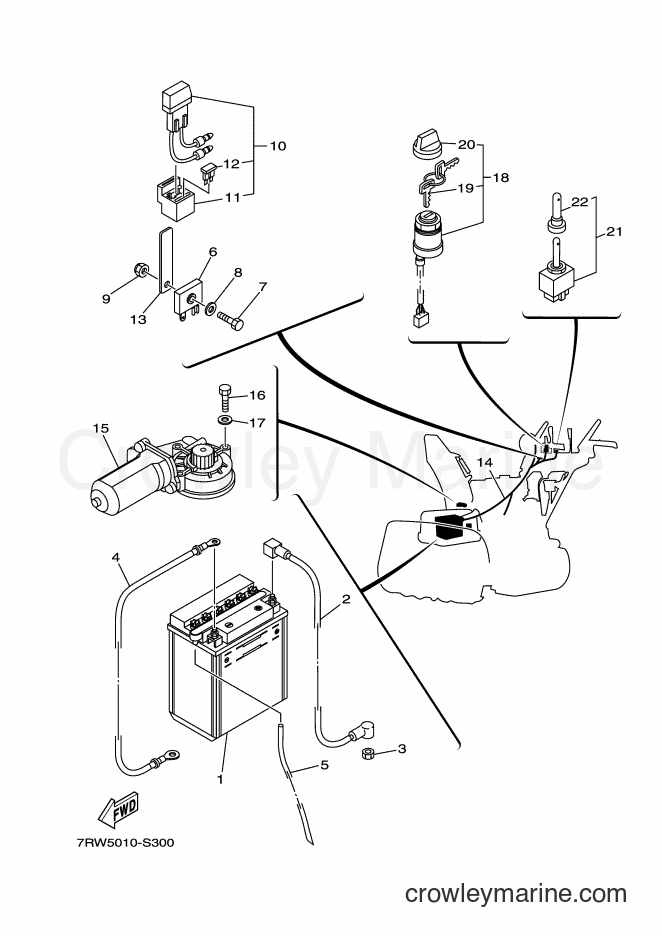

2017 Snowblower YT1070 - YT1070 (7RW5) [010] ELECTRICAL 1 diagram
![Yamaha Motors YT1070 (7RW5) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/99s7GfHS.png)
2
Yamaha Motors
WIRE, PLUS LEAD7RW-H2115-11
Required: 1
WIRE, PLUS LEAD
Price unavailable
-15%
In stock
Only 2 remaining
$0.89
You save $0.16
4
Yamaha Motors
WIRE, MINUS LEAD7RW-H2116-10
Required: 1
WIRE, MINUS LEAD
Price unavailable
-15%
5
Yamaha Motors
90445-08684-0090445-08417-00
Required: 1
HOSE (L200)
Supersedes: 90445-081F2-00
No longer availableSearch Nationwide Inventory
$11.89
You save $2.10
6
Yamaha Motors
RECTIFIER ASSY7CH-81970-00
Required: 1
RECTIFIER ASSY
Price unavailable
7
Yamaha Motors
BOLT97002-05025
Required: 1
BOLT
Price unavailable
-50%
8
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.75
You save $2.75
-15%
9
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 1
NUT, NYLON
Supersedes: 95702-05300-00
$3.87
You save $0.68
10
Yamaha Motors
FUSE HOLDER ASSY7RX-82150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
-15%
$5.94
You save $1.05
-15%
12
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
$7.22
You save $1.27
13
Yamaha Motors
STAY, FUSE HOLDER7RW-H2153-00-NJ
Required: 1
STAY, FUSE HOLDER
Price unavailable
14
Yamaha Motors
WIRE HARNESS ASSY7RW-H2590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
15
Yamaha Motors
MOTOR ASSY99999-04150
Required: 1
MOTOR ASSY
Price unavailable
16
Yamaha Motors
BOLT, SPECIAL7BB-H1892-00
Required: 3
BOLT, SPECIAL
Price unavailable
-50%
17
Yamaha Motors
Plain Washer92990-05200-00
Required: 3
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.75
You save $2.75
-15%
18
Yamaha Motors
Obsolete Yamaha Part7MN-82510-00-00
Required: 1
MAIN SWITCH ASSY
$70.54
You save $12.45
-20%
19
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
$14.79
You save $3.70
-15%
$32.29
You save $5.70
-15%
No longer availableSearch Nationwide Inventory
$118.14
You save $20.85
22
Yamaha Motors
. COVER, SWITCH7LY-8291G-00
Required: 1
. COVER, SWITCH
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
