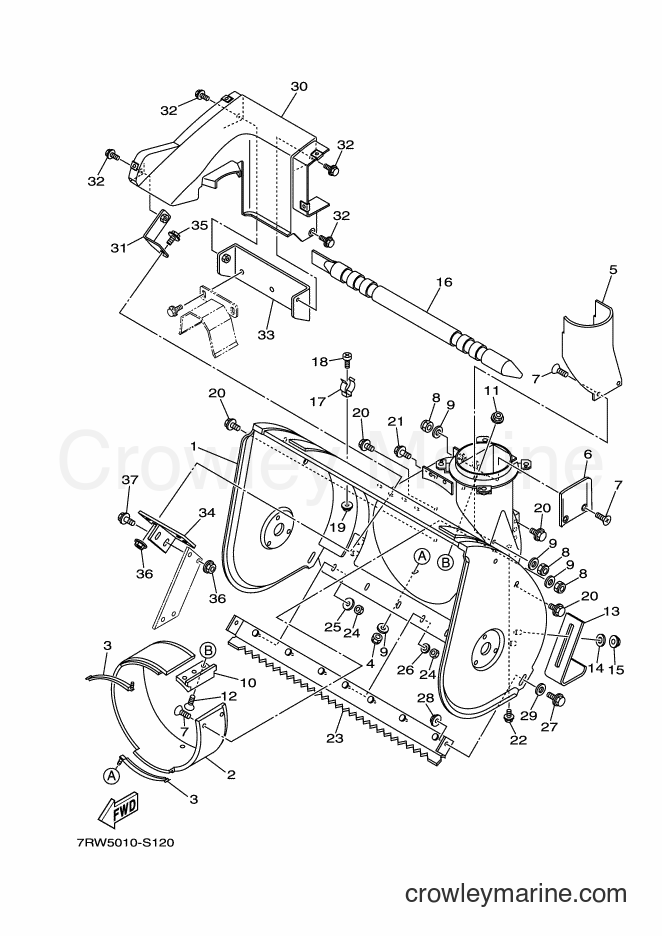

2017 Snowblower YT1070 - YT1070 (7RW5) [010] AUGA CASE diagram
![Yamaha Motors YT1070 (7RW5) [010] - AUGA CASE](https://cdn.crowleymarine.com/yamaha/4a29iqmj.png)
1
Yamaha Motors
HOUSING, AUGER7RW-R1511-12-NJ
Required: 1
HOUSING, AUGER
Price unavailable
2
Yamaha Motors
HOUSING, IMPELLER7RW-R1312-01
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Yamaha Motors
BRACKET 27RW-R1342-00-NJ
Required: 2
BRACKET 2
Price unavailable
4
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
5
Yamaha Motors
DUCT, IMPELLER7RW-R1315-01
Required: 1
DUCT, IMPELLER
Price unavailable
6
Yamaha Motors
PLATE 17RW-R1345-01
Required: 1
PLATE 1
Price unavailable
7
Yamaha Motors
SCREW, SPECIAL7VY-R169F-01
Required: 6
SCREW, SPECIAL
Price unavailable
8
Yamaha Motors
NUT95617-06100-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
-20%
9
Yamaha Motors
Plain Washer92990-06200-00
Required: 8
WASHER
Supersedes: 92902-06200-00
In stock
5+ in stock
$0.80
You save $0.20
10
Yamaha Motors
BRACKET 17RW-R1341-02-NJ
Required: 1
BRACKET 1
Price unavailable
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-15%
12
Yamaha Motors
Flat Screw98704-06016-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-06016-00
No longer availableSearch Nationwide Inventory
$4.67
You save $0.82
13
Yamaha Motors
SKID7RV-R1517-00-33
Required: 2
SKID
Price unavailable
14
Yamaha Motors
WASHER, SPECIAL 17RV-R234R-00
Required: 4
WASHER, SPECIAL 1
Price unavailable
-15%
In stock
Only 2 remaining
$0.89
You save $0.16
-15%
$39.94
You save $7.05
-15%
$14.02
You save $2.47
-50%
18
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
-15%
$0.81
You save $0.14
-15%
20
Yamaha Motors
95811-08012-0095812-08012-00
Required: 5
BOLT, FLANGE
Supersedes: 95822-08012-00
No longer availableSearch Nationwide Inventory
$1.32
You save $0.23
No longer availableSearch Nationwide Inventory
$0.61
-20%
22
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
23
Yamaha Motors
SCRAPER7RW-R1514-10
Required: 1
SCRAPER
Price unavailable
24
Yamaha Motors
NUT95617-06100-00
Required: 7
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$3.60
25
Yamaha Motors
WASHER, SPECIAL 27RV-R234V-00
Required: 6
WASHER, SPECIAL 2
Price unavailable
26
Yamaha Motors
WASHER, SPECIAL 27RV-R159N-00
Required: 1
WASHER, SPECIAL 2
Price unavailable
No longer availableSearch Nationwide Inventory
$0.61
-15%
In stock
Only 2 remaining
$0.89
You save $0.16
29
Yamaha Motors
WASHER, SPECIAL 17RV-R234R-00
Required: 2
WASHER, SPECIAL 1
Price unavailable
30
Yamaha Motors
COVER 17RW-R1745-00
Required: 1
COVER 1
Price unavailable
31
Yamaha Motors
BRACKET 37RW-R1537-00
Required: 1
BRACKET 3
Price unavailable
-15%
$5.09
You save $0.90
33
Yamaha Motors
BRACKET 57RW-R1539-00
Required: 1
BRACKET 5
Price unavailable
34
Yamaha Motors
BRACKET 17RV-R1518-00-NJ
Required: 1
BRACKET 1
Price unavailable
-15%
35
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
No longer availableSearch Nationwide Inventory
$1.87
You save $0.33
-15%
In stock
Only 2 remaining
$0.89
You save $0.16
No longer availableSearch Nationwide Inventory
$0.61
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
