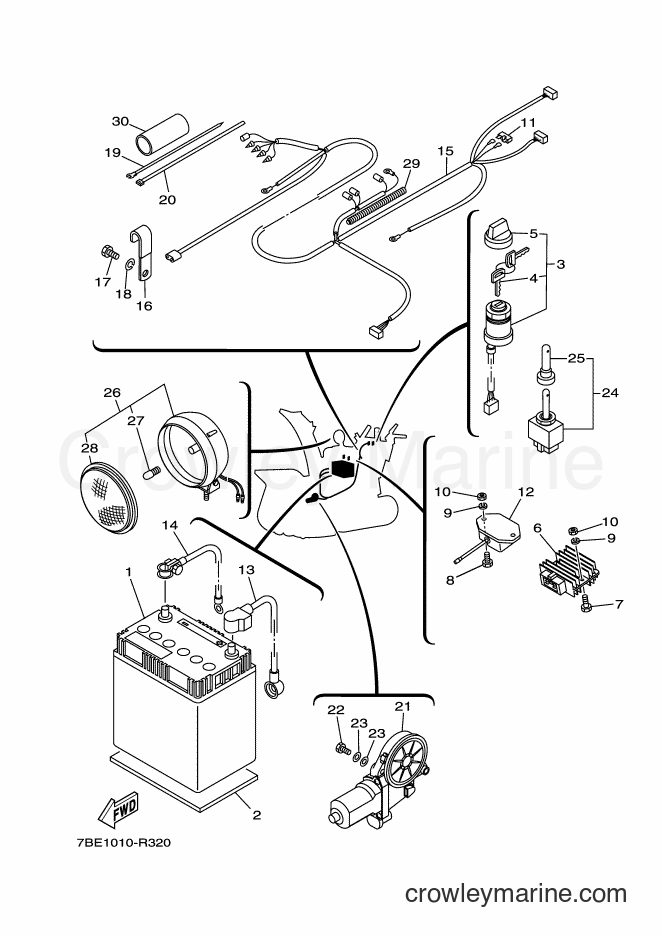

2016 Snowblower YT1280ED - YT1280ED (7BE1) [010] ELECTRICAL 1 diagram
![Yamaha Motors YT1280ED (7BE1) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/n0Z7WnWa.png)
2
Yamaha Motors
SEAT, BATTERY7RX-82122-00
Required: 1
SEAT, BATTERY
Price unavailable
-15%
3
Yamaha Motors
Obsolete Yamaha Part7MN-82510-00-00
Required: 1
MAIN SWITCH ASSY
$70.54
You save $12.45
-20%
4
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
. KEY, MAIN SWITCH
$14.79
You save $3.70
-15%
$32.29
You save $5.70
6
Yamaha Motors
RECTIFIER & REGULATOR (10A)7UT-81960-00
Required: 1
RECTIFIER & REGULATOR (10A)
Price unavailable
-15%
7
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97002-06025-00
$3.87
You save $0.68
-15%
No longer availableSearch Nationwide Inventory
$1.70
You save $0.30
-20%
9
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-20%
10
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 4
NUT, HEXAGON
Supersedes: 95302-06600-00
In stock
5+ in stock
$3.92
You save $0.98
-15%
$7.22
You save $1.27
-15%
12
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
No longer availableSearch Nationwide Inventory
$66.29
You save $11.70
13
Yamaha Motors
WIRE, PLUS LEAD7RX-H2115-61
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Yamaha Motors
WIRE, MINUS LEAD7RX-H2116-60
Required: 1
WIRE, MINUS LEAD
Price unavailable
15
Yamaha Motors
WIRE HARNESS ASSY7BE-H2590-20
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Yamaha Motors
CLAMP, WIRE7U7-F627E-00
Required: 7
CLAMP, WIRE
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$2.25
You save $0.40
-15%
18
Yamaha Motors
Spring Washer92907-08100-00
Required: 3
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
19
Yamaha Motors
BAND7RV-F1646-00
Required: 5
BAND
Price unavailable
20
Yamaha Motors
BAND7RX-H2155-00
Required: 4
BAND
Price unavailable
21
Yamaha Motors
MOTOR ASSY99999-04150
Required: 1
MOTOR ASSY
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$1.50
You save $0.27
-50%
23
Yamaha Motors
Plain Washer92990-05200-00
Required: 6
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.75
You save $2.75
-15%
No longer availableSearch Nationwide Inventory
$118.14
You save $20.85
25
Yamaha Motors
. COVER, SWITCH7LY-8291G-00
Required: 1
. COVER, SWITCH
Price unavailable
26
Yamaha Motors
HEADLIGHT ASSY7RV-84300-01
Required: 1
HEADLIGHT ASSY
Price unavailable
27
Yamaha Motors
. BULB(12V-23W)849-83311-20
Required: 1
. BULB(12V-23W)
Price unavailable
28
Yamaha Motors
. LENS, HEADLIGHT7RV-84121-00
Required: 1
. LENS, HEADLIGHT
Price unavailable
29
Yamaha Motors
TUBE7RX-H3535-00
Required: 1
TUBE
Price unavailable
30
Yamaha Motors
COVER, CONNECTOR7MX-82599-00
Required: 1
COVER, CONNECTOR
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
