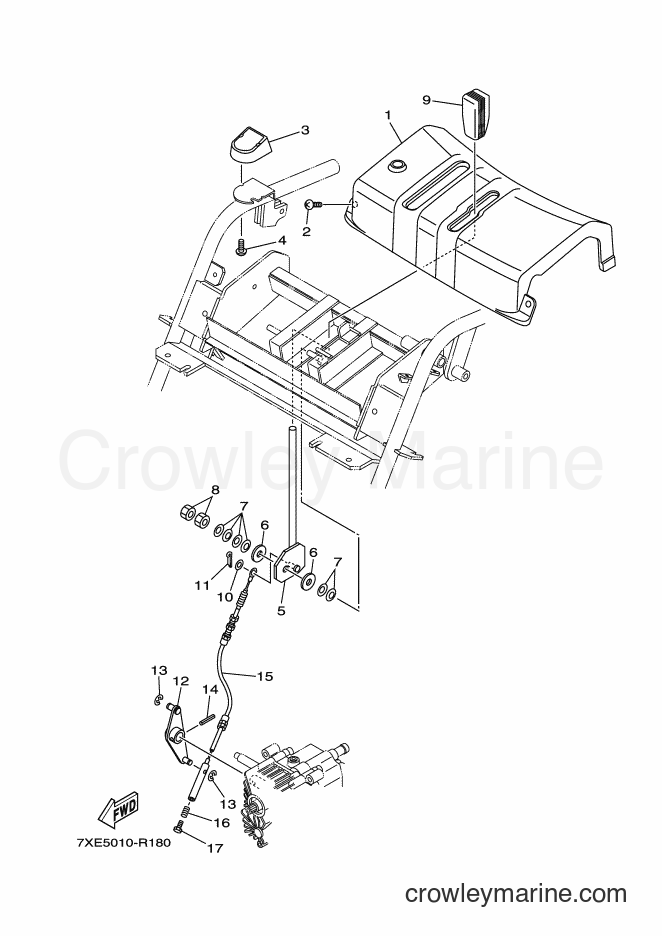

2016 Snowblower YS1070T - YS1070T (7XE5) [010] CONTROL BOX diagram
![Yamaha Motors YS1070T (7XE5) [010] - CONTROL BOX](https://cdn.crowleymarine.com/yamaha/JPDbL8rP.png)
1
Yamaha Motors
COVER, TOP7XE-R2721-00
Required: 1
COVER, TOP
Price unavailable
-15%
$8.92
You save $1.57
3
Yamaha Motors
COVER, SWITCH7XE-H1821-00
Required: 1
COVER, SWITCH
Price unavailable
-15%
4
Yamaha Motors
Tapping Screw97707-40610-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40510-00
$8.07
You save $1.42
5
Yamaha Motors
LEVER, CONTROL 27XE-R2622-00
Required: 1
LEVER, CONTROL 2
Price unavailable
6
Yamaha Motors
WASHER, SPECIAL 37RV-R234X-00
Required: 2
WASHER, SPECIAL 3
Price unavailable
7
Yamaha Motors
WASHER, CONICAL SPRING7RV-F581R-00
Required: 6
WASHER, CONICAL SPRING
Price unavailable
-15%
8
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-10600-00
$2.17
You save $0.38
9
Yamaha Motors
KNOB7MN-R2625-00
Required: 1
KNOB
Price unavailable
-20%
10
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER
Supersedes: 92902-06200-00
In stock
5+ in stock
$0.80
You save $0.20
11
Yamaha Motors
PIN, COTTER91402-20015
Required: 1
PIN, COTTER
Price unavailable
12
Yamaha Motors
ARM, CONTROL7XE-R2551-00
Required: 1
ARM, CONTROL
Price unavailable
In stock
Only 1 remaining
$3.54
14
Yamaha Motors
SPRING PIN91690-40025-00
Required: 1
PIN, SPRING
Supersedes: 91609-40025-00
$1.66
15
Yamaha Motors
WIRE, SHIFT7XE-46371-10
Required: 1
WIRE, SHIFT
Price unavailable
-15%
16
Yamaha Motors
Compression Spring90501-124G3-00
Required: 1
SPRING, COMPRESSION
$1.53
You save $0.27
17
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD91312-08012
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
