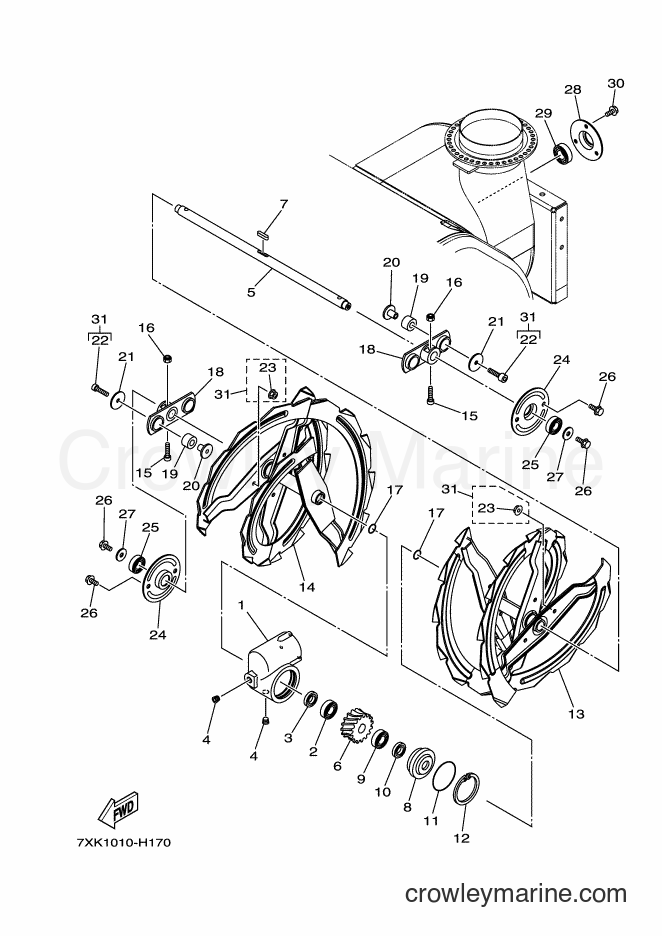

2012 Snowblower YU240 - YU240 (7XK1) [010] AUGA DRIVEN diagram
![Yamaha Motors YU240 (7XK1) [010] - AUGA DRIVEN](https://cdn.crowleymarine.com/yamaha/ZBXazxTO.png)
1
Yamaha Motors
CASE, WORM7XK-R1627-00
Required: 1
CASE, WORM
Price unavailable
-15%
2
Yamaha Motors
Bearing93306-00208-00
Required: 1
BEARING
Supersedes: 93306-00206-00
$39.09
You save $6.90
-15%
$8.92
You save $1.57
4
Yamaha Motors
PLUG, DRAIN7XK-R1118-00
Required: 2
PLUG, DRAIN
Price unavailable
5
Yamaha Motors
SHAFT, AUGER7XK-R1646-00
Required: 1
SHAFT, AUGER
Price unavailable
6
Yamaha Motors
WORM, WHEEL7XK-51638-00
Required: 1
WORM, WHEEL
Price unavailable
7
Yamaha Motors
KEY, STRAIGHT91B00-05620
Required: 1
KEY, STRAIGHT
Price unavailable
8
Yamaha Motors
COVER 17XK-R1628-00
Required: 1
COVER 1
Price unavailable
-15%
9
Yamaha Motors
Bearing93306-00208-00
Required: 1
BEARING
Supersedes: 93306-00206-00
$39.09
You save $6.90
-15%
$8.92
You save $1.57
-20%
In stock
Only 1 remaining
$6.79
You save $1.70
12
Yamaha Motors
CIRCLIP99009-50500
Required: 1
CIRCLIP
Price unavailable
13
Yamaha Motors
AUGER 17XK-R1644-00
Required: 1
AUGER 1
Price unavailable
14
Yamaha Motors
AUGER 27XK-R1645-00
Required: 1
AUGER 2
Price unavailable
-15%
In stock
Only 1 remaining
$5.52
You save $0.97
-15%
16
Yamaha Motors
Flange Nut95707-06300-00
Required: 2
NUT, NYLON
Supersedes: 95702-06300-00
$3.19
You save $0.56
-15%
17
Yamaha Motors
O-Ring93210-14579-00
Required: 2
O-RING
Supersedes: 93210-14104-00
$6.79
You save $1.20
18
Yamaha Motors
BRACKET 17XK-R1689-00
Required: 2
BRACKET 1
Price unavailable
19
Yamaha Motors
DAMPER7XK-R1184-00
Required: 4
DAMPER
Price unavailable
20
Yamaha Motors
COLLAR90387-068F1
Required: 4
COLLAR
Price unavailable
-15%
21
Yamaha Motors
Plain Washer90201-06090-00
Required: 4
WASHER, PLATE
$5.52
You save $0.97
-15%
In stock
Only 1 remaining
$5.52
You save $0.97
-2%
23
Yamaha Motors
U Flange Nut95604-06200-00
Required: 4
. NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.89
24
Yamaha Motors
HOUSING, BEARING 27XK-R1626-00
Required: 2
HOUSING, BEARING 2
Price unavailable
25
Yamaha Motors
BEARING93306-00110
Required: 2
BEARING
Price unavailable
-20%
26
Yamaha Motors
Flange Bolt95817-06012-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
-15%
27
Yamaha Motors
Plain Washer90201-06078-00
Required: 2
WASHER, PLATE
$5.52
You save $0.97
28
Yamaha Motors
HOUSING, BEARING 37XK-R1639-00
Required: 1
HOUSING, BEARING 3
Price unavailable
-15%
$30.59
You save $5.40
-20%
30
Yamaha Motors
Flange Bolt95817-06012-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
31
Yamaha Motors
BOLT, SHEAR SET7XK-W008A-01
Required: 1
BOLT, SHEAR SET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
