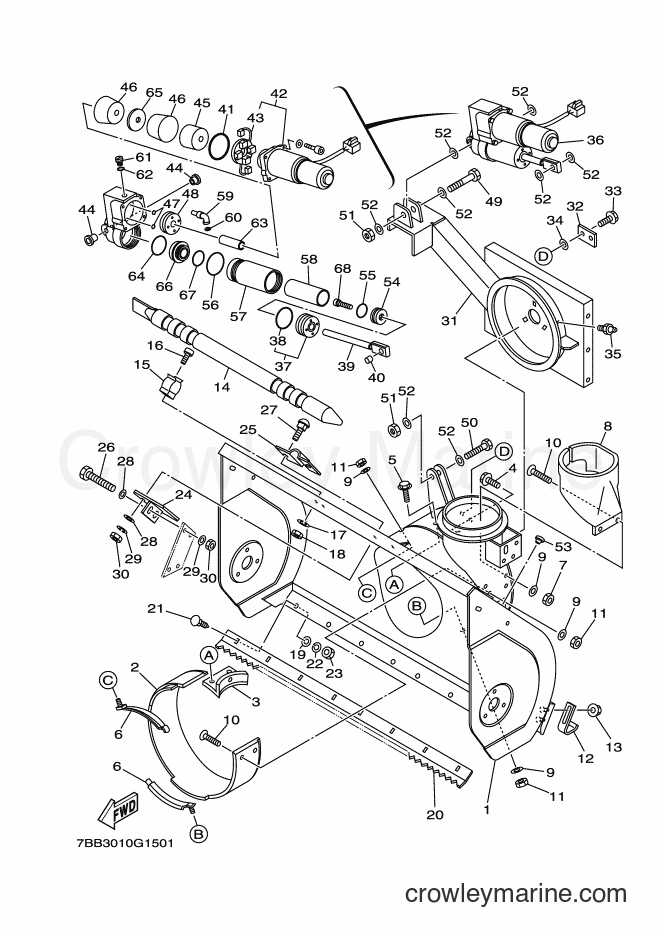

Yamaha Motors YS1390AR (7BB4) [010] - AUGA CASE 2
Change View:
HOUSING, AUGER
1
Yamaha Motors
HOUSING, AUGER7BB-R1511-20-NJ
Required: 1
HOUSING, AUGER
Price unavailable
HOUSING, IMPELLER
2
Yamaha Motors
HOUSING, IMPELLER7BB-R1312-02
Required: 1
HOUSING, IMPELLER
Price unavailable
BRACKET 1
3
Yamaha Motors
BRACKET 17RY-R1341-01-NJ
Required: 1
BRACKET 1
Price unavailable
BRACKET 2
6
Yamaha Motors
BRACKET 27RY-R1342-00-NJ
Required: 2
BRACKET 2
Price unavailable
NUT
7
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
DUCT, IMPELLER
8
Yamaha Motors
DUCT, IMPELLER7BB-R1315-01
Required: 1
DUCT, IMPELLER
Price unavailable
SCREW, SPECIAL
10
Yamaha Motors
SCREW, SPECIAL7VY-R169F-01
Required: 4
SCREW, SPECIAL
Price unavailable
NUT
11
Yamaha Motors
NUT95617-06100-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
SKID
12
Yamaha Motors
SKID7BB-R1517-00-NJ
Required: 2
SKID
Price unavailable
-15%
Bar
14
Yamaha Motors
Bar7KA-52516-00-00
Required: 1
BAR
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details
-15%
Clamp
15
Yamaha Motors
Clamp90465-10319-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
WASHER, SPECIAL 1
19
Yamaha Motors
WASHER, SPECIAL 17MX-R234R-00
Required: 8
WASHER, SPECIAL 1
Price unavailable
SCRAPER
20
Yamaha Motors
SCRAPER7RY-R1514-01
Required: 1
SCRAPER
Price unavailable
BOLT, SPECIAL 2
21
Yamaha Motors
BOLT, SPECIAL 27MX-R236M-00
Required: 8
BOLT, SPECIAL 2
Price unavailable
-15%
Spring Washer
22
Yamaha Motors
Spring Washer92907-08100-00
Required: 8
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Nut
23
Yamaha Motors
Nut95302-08600-00
Required: 8
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BRACKET 1
24
Yamaha Motors
BRACKET 17KX-R1518-00-NJ
Required: 1
BRACKET 1
Price unavailable
REINFORCEMENT 1
25
Yamaha Motors
REINFORCEMENT 17KX-R1519-00-NJ
Required: 1
REINFORCEMENT 1
Price unavailable
BOLT, SPECIAL 2
27
Yamaha Motors
BOLT, SPECIAL 27MX-R236M-00
Required: 2
BOLT, SPECIAL 2
Price unavailable
WASHER
28
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$1.53
More details
-15%
Spring Washer
29
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Nut
30
Yamaha Motors
Nut95302-08600-00
Required: 4
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BRACKET 1
31
Yamaha Motors
BRACKET 17BB-R1518-10
Required: 1
BRACKET 1
Price unavailable
RETAINER
32
Yamaha Motors
RETAINER7RY-R272F-00
Required: 3
RETAINER
Price unavailable
SHIM
34
Yamaha Motors
SHIM7RY-R1135-00
Required: 12
SHIM
Price unavailable
NIPPLE, GREASE
35
Yamaha Motors
NIPPLE, GREASE7H2-R169A-00
Required: 1
NIPPLE, GREASE
Price unavailable
POWER TRIM & TILT ASSY
36
Yamaha Motors
POWER TRIM & TILT ASSY7BB-G3800-03
Required: 1
POWER TRIM & TILT ASSY
Price unavailable
. CASE VALVE COMP.
37
Yamaha Motors
. CASE VALVE COMP.7BB-G3803-01
Required: 1
. CASE VALVE COMP.
Price unavailable
. . O-RING 2
38
Yamaha Motors
. . O-RING 27BB-G3862-00
Required: 1
. . O-RING 2
Price unavailable
. ROD
39
Yamaha Motors
. ROD7BB-G3801-01
Required: 1
. ROD
Price unavailable
. BUSH, FORMED
40
Yamaha Motors
. BUSH, FORMED90383-14N52
Required: 1
. BUSH, FORMED
Price unavailable
. O-RING 9
41
Yamaha Motors
. O-RING 97BB-G3869-00
Required: 1
. O-RING 9
Price unavailable
. MOTOR ASSY
42
Yamaha Motors
. MOTOR ASSY7BB-G3880-01
Required: 1
. MOTOR ASSY
Price unavailable
. . BRUSH 1
43
Yamaha Motors
. . BRUSH 17BB-G3891-01
Required: 2
. . BRUSH 1
Price unavailable
. HOLDER
44
Yamaha Motors
. HOLDER7BB-G381K-00
Required: 2
. HOLDER
Price unavailable
. BODY, RESERVOIR
45
Yamaha Motors
. BODY, RESERVOIR7BB-G3828-00
Required: 1
. BODY, RESERVOIR
Price unavailable
. BRACKET
46
Yamaha Motors
. BRACKET7BB-G381F-00
Required: 2
. BRACKET
Price unavailable
-15%
O-Ring
47
Yamaha Motors
O-Ring69J-4389J-00-00
Required: 2
. O-RING
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
. GEAR PUMP ASSY
48
Yamaha Motors
. GEAR PUMP ASSY7BB-G3830-02
Required: 1
. GEAR PUMP ASSY
Price unavailable
BOLT, SPECIAL 1
49
Yamaha Motors
BOLT, SPECIAL 17RY-R159J-00
Required: 1
BOLT, SPECIAL 1
Price unavailable
BOLT, SPECIAL 3
50
Yamaha Motors
BOLT, SPECIAL 37RY-R236N-00
Required: 1
BOLT, SPECIAL 3
Price unavailable
NUT, SPECIAL 1
51
Yamaha Motors
NUT, SPECIAL 17RY-R159L-00
Required: 2
NUT, SPECIAL 1
Price unavailable
-15%
Plug
53
Yamaha Motors
Plug90338-07180-00
Required: 1
PLUG
Supersedes: 90338-06018-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
PISTON, TILT
54
Yamaha Motors
PISTON, TILT7BB-4385A-00
Required: 1
PISTON, TILT
Price unavailable
-15%
O-Ring
56
Yamaha Motors
O-Ring7BB-G3861-00-00
Required: 1
O-RING
Supersedes: 7BB-43861-00-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
CYLINDER, SHOCK ABSORBER
57
Yamaha Motors
CYLINDER, SHOCK ABSORBER7BB-22471-00
Required: 1
CYLINDER, SHOCK ABSORBER
Price unavailable
CYLINDER, TILT
58
Yamaha Motors
CYLINDER, TILT7BB-43813-00
Required: 1
CYLINDER, TILT
Price unavailable
ADAPTOR 1
59
Yamaha Motors
ADAPTOR 17BB-4382A-00
Required: 2
ADAPTOR 1
Price unavailable
FILTER 1
60
Yamaha Motors
FILTER 17BB-43816-00
Required: 2
FILTER 1
Price unavailable
SCREW, MANUAL RELEASE
61
Yamaha Motors
SCREW, MANUAL RELEASE7BB-43845-00
Required: 2
SCREW, MANUAL RELEASE
Price unavailable
O-RING
62
Yamaha Motors
O-RING6H1-4389F-00
Required: 2
O-RING
Price unavailable
PIPE
63
Yamaha Motors
PIPE7BB-43833-00
Required: 1
PIPE
Price unavailable
O-RING
64
Yamaha Motors
O-RING7BB-43864-00
Required: 1
O-RING
Price unavailable
BRACKET
65
Yamaha Motors
BRACKET7BB-4381E-00
Required: 1
BRACKET
Price unavailable
PISTON, FREE
66
Yamaha Motors
PISTON, FREE7BB-43814-00
Required: 1
PISTON, FREE
Price unavailable
BOLT
68
Yamaha Motors
BOLT91318-10040
Required: 1
BOLT
Price unavailable
